SUN HYDRAULICS
PBBBKQV

$91.93 USD

SUN HYDRAULICS
Material:PBBBKQV
Model:PBBB-KQV
Summary:Cartridge

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

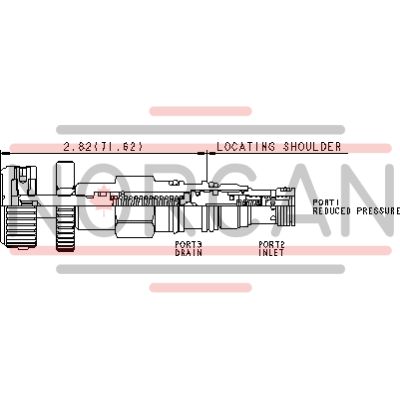

The Sun Hydraulics PBBBKQV (PBBBKQV) is a pilot-operated pressure reducing valve designed to manage high primary pressure at the inlet port 2 and maintain a constant reduced pressure at port 1. This functionality allows for the operation of circuits with varying pressure requirements using a single pump. The valve features full reverse flow capability from reduced pressure port 1 to inlet port 2, though this may cause the main spool to close; therefore, incorporating a separate check valve in the circuit is recommended if reverse free flow is needed. The minimum setting for all spring ranges is 75 psi (5 bar). These valves are noted for their exceptionally flat pressure-flow characteristics, stability, and low hysteresis. Pressure at port 3 adds directly to the valve setting at a 1:1 ratio, with a maximum allowable pressure of 5000 psi (350 bar). The Sun floating style construction is employed to minimize internal parts binding due to excessive installation torque or cavity/cartridge machining variations. The valve fits into Cavity T-163A and has a series capacity of 5 gpm (20 L/min). Factory pressure settings are established with the control port dead-headed. The maximum operating pressure is rated at 5000 psi (350 bar), with control pilot flow ranging from 7 to 10 in\u00b3/min (0.11 to 0.16 L/min). Adjustment can be made by turning clockwise up to five turns, and it includes specific hex sizes for various components: valve hex size is 3/4 inch (19.1 mm), adjustment screw internal hex size is 5/32 inch (4 mm), and locknut hex size is 1/2 inch (12.7 mm). The locknut torque ranges from 80 to 90 lbf-in (9 to 10 Nm). The model weighs approximately .30 lb (.15 kg) and uses Viton seal kits identified as part number 990163006.

Description

Pilot-operated, pressure reducing valves reduce a high primary pressure at the inlet (port 2) to a constant reduced pressure at port 1, allowing circuits with multiple pressure requirements to be operated using a single pump.

Full reverse flow from reduced pressure (port 1) to inlet (port 2) may cause the main spool to close. If reverse free flow is required in the circuit, consider adding a separate check valve to the circuit.
Minimum setting is 75 psi (5 bar) for all spring ranges.
Pilot operated valves exhibit exceptionally flat pressure/flow characteristics, are very stable and have low hysteresis.
Pressure at port 3 is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar).
Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

Cavity	T-163A
Series	0
Capacity	5 gpm20 L/min.
Factory Pressure Settings Established at	blocked control port (dead headed)blocked control port (dead headed)
Maximum Operating Pressure	5000 psi350 bar
Control Pilot Flow	7 - 10 in³/min.0,11 - 0,16 L/min.
Adjustment - Number of Clockwise Turns to Increase Setting	55
Valve Hex Size	3/4 in.19,1 mm
Valve Installation Torque	20 - 25 lbf ft27 - 33 Nm
Adjustment Screw Internal Hex Size	5/32 in.4 mm
Locknut Hex Size	1/2 in.12,7 mm
Locknut Torque	80 - 90 lbf in.9 - 10 Nm
Model Weight	.30 lb0,15 kg
Seal kit - Cartridge	Viton: 990-163-006

Show FAQ

Direct acting or pilot operated - what do I use?	Direct-acting valves are used to prevent over pressure, and pilot-operated valves are used to regulate pressure. If you are unsure, use a direct-acting valve. Sun's direct acting valves are very fast, dirt tolerant, stable, and robust. Sun's pilot-operated valves are moderately fast, they have a low pressure rise vs. flow curve, and they are easy to adjust.
How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
What are the tolerances on pressure settings for Sun's pressure control valves?	Pressure setting tolerances are listed in our Performance Data page. A link to this page can also be found in the Additional Resources tab of the applicable product page.
Can I back flow through a reducing valve from port 1 to port 2?	Yes. A reducing or reducing/relieving valve is normally open. If the pressure in the secondary circuit is less than the setting, it will be open.2 caveats: (1) If the valve is in the reducing mode and you suddenly reverse the flow, the valve will not have time to open and will shift into relieving mode or (2) If the back flow generates a pressure drop through the valve that exceeds the setting, the valve will shift into the relieving mode.When in doubt, use a reverse flow check.
I need a reducer on B. Can I connect the drain to A?	Yes. If you look in the sandwich section you will see that we offer many such packages. When you are pressurizing B, A is connected to tank, allowing the reducer to do its job. When you reverse, the drain or tank port of the reducer is pressurized by A. This increases the setting of the reducer and helps keep the reducer open in the reverse flow direction.
What do you mean by maximum differential?	Our reducing valves are outside-in valves; the supply pressure on the outside of the working parts is higher than the inside. At some pressure differential, the outside (sleeve) will close in on the piston and cause the valve to stick. A D range is adjustable from 25 to 800 psi with a maximum differential of 2000 psi. This means you could set the valve at 600 psi and expect it to work correctly with a supply pressure of 2600 psi. The valve may work at higher differentials, but we do not recommend it. The W and C ranges are tested over their entire range with an inlet pressure of 5000 psi. All direct-acting valves are tested with an inlet pressure of 5000 psi.
