SUN HYDRAULICS
PBDBFDN
$68.10 USD
- SUN HYDRAULICS
- Material:PBDBFDN
- Model:PBDB-FDN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

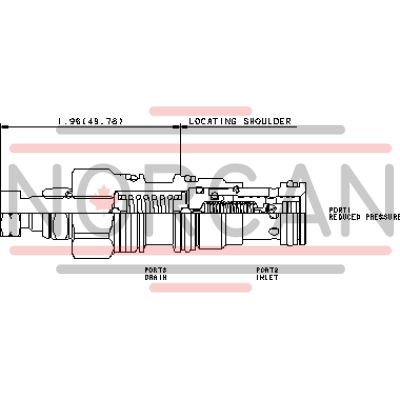

The Sun Hydraulics PBDBFDN (PBDBFDN) is a pilot-operated pressure reducing valve designed to maintain a constant reduced pressure at port 1 from a higher primary pressure at inlet port 2. This model is part of the three-port pressure reducing and reducing-relieving cartridge series, which are interchangeable in terms of flow path and cavity size. The PBDBFDN model ensures stable operation with low hysteresis and features exceptionally flat pressure-flow characteristics. The valve is equipped with a main stage orifice protected by a 150-micron stainless steel screen, making it suitable for applications requiring reliable performance under varying pressures. This cartridge valve can handle maximum operating pressures up to 5000 psi (350 bar) and is tested for different maximum differential pressures based on the adjustment range: ranges D, E, N, and Q support up to a 2000 psi (140 bar) differential, while ranges A, B, and H support up to 3000 psi (210 bar), and ranges C and W can manage up to 5000 psi (350 bar). The PBDBFDN also incorporates Sun's floating style construction to prevent internal part binding due to installation torque or machining variations. For enhanced corrosion resistance, cartridges are available with external stainless steel components or zinc-nickel plating. The valve's pilot flow consumption ranges from 7-10 in\u00b3/min (0.11-0.16 L/min), making it efficient for circuits with multiple pressure requirements operated using a single pump. For applications needing reverse free flow in the circuit, adding a separate check valve is recommended as full reverse flow from reduced pressure port 1 to inlet port 2 may cause the main spool to close. Adjustments can be made using an internal hex screw or locknut with specified torque settings for optimal performance.
The Sun Hydraulics PBDBFDN (PBDBFDN) is a pilot-operated pressure reducing valve designed to maintain a constant reduced pressure at port 1 from a higher primary pressure at inlet port 2. This model is part of the three-port pressure reducing and reducing-relieving cartridge series, which are interchangeable in terms of flow path and cavity size. The PBDBFDN model ensures stable operation with low hysteresis and features exceptionally flat pressure-flow characteristics. The valve is equipped with a main stage orifice protected by a 150-micron stainless steel screen, making it suitable for applications requiring reliable performance under varying pressures. This cartridge valve can handle maximum operating pressures up to 5000 psi (350 bar) and is tested for different maximum differential pressures based on the adjustment range: ranges D, E, N, and Q support up to a 2000 psi (140 bar) differential, while ranges A, B, and H support up to 3000 psi (210 bar), and ranges C and W can manage up to 5000 psi (350 bar). The PBDBFDN also incorporates Sun's floating style construction to prevent internal part binding due to installation torque or machining variations. For enhanced corrosion resistance, cartridges are available with external stainless steel components or zinc-nickel plating. The valve's pilot flow consumption ranges from 7-10 in\u00b3/min (0.11-0.16 L/min), making it efficient for circuits with multiple pressure requirements operated using a single pump. For applications needing reverse free flow in the circuit, adding a separate check valve is recommended as full reverse flow from reduced pressure port 1 to inlet port 2 may cause the main spool to close. Adjustments can be made using an internal hex screw or locknut with specified torque settings for optimal performance.
Pilot-operated, pressure reducing valves reduce a high primary pressure at the inlet (port 2) to a constant reduced pressure at port 1, allowing circuits with multiple pressure requirements to be operated using a single pump.
- All three-port pressure reducing and reducing/relieving cartridges are physically interchangeable (i.e. same flow path, same cavity for a given frame size). When considering mounting configurations, it is sometimes recommended that a full capacity return line (port 3) be used with reducing/relieving cartridges.
- Full reverse flow from reduced pressure (port 1) to inlet (port 2) may cause the main spool to close. If reverse free flow is required in the circuit, consider adding a separate check valve to the circuit.
- If pilot flow consumption is critical, consider using direct acting reducing/relieving valves.
- Main stage orifice is protected by a 150 micron stainless steel screen.
- Recommended maximum inlet pressure is determined by the adjustment range. Ranges D, E, N, and Q are tested with a 2000 psi (140 bar) maximum differential between inlet and reduced pressure. Ranges A, B, and H are tested with a 3000 psi (210 bar) maximum differential between inlet and reduced pressure. Ranges C and W are tested with 5000 psi (350 bar) of inlet pressure.
- Pilot operated valves exhibit exceptionally flat pressure/flow characteristics, are very stable and have low hysteresis.
- Pressure at port 3 is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar).
- Pilot operated reducing, reducing/relieving valves by nature are not fast acting valves. For superior dynamic response, consider direct acting valves.
- W and Y controls (where applicable) can be specified with or without a special setting. When no special setting is specified, the valve is adjustable throughout its full range using the W or Y control. When a special setting is specified, this setting represents the maximum setting of the valve.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP for external stainless steel components, or /LH for external zinc-nickel plated components. See the CONFIGURATION section for all options. For further details, please see the Materials of Construction page located under TECH RESOURCES.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 10 gpm40 L/min. |
| Factory Pressure Settings Established at | blocked control port (dead headed)blocked control port (dead headed) |
| Maximum Operating Pressure | 5000 psi350 bar |
| Control Pilot Flow | 7 - 10 in³/min.0,11 - 0,16 L/min. |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .30 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-011-006 |
Show FAQ
Additional Resources
- QuickDesign with SmartConnect Offers Drag-and-Drop Schematic Tool
- Sun Expands Corrosion-Resistant Solutions
- Series 4 PLUS Cartridges Offer Higher Flows with Lower Pressure Losses
- Sun Offers Zinc-Nickel Plating for Corrosion Resistance
- Sun Cartridges with EPDM Seals
- Manufacturing Sun Cartridge Cavities
- Reducing and Reducing/Relieving Valves
- Fluid and Temperature Recommendations
- Performance Data
- Sun's Floating Style Screw-In Cartridge
- Units of Measure, Settings, and Conversions
- Sun Model Code Explanation; 999-901-334
- Cavity Information (S-171) and Tooling
- Cartridges: Materials of Construction
Notes:
- Maximum pressure differentials for spring ranges: A and B are 3000 psi (210 bar) N and Q are 2000 psi (140 bar) W is 5000 psi (350 bar)inlet pressure
- For Series 1 cartridges configured with an O control (panel mount handknob), a .75 in. (19 mm) diameter hole is required in the panel.
