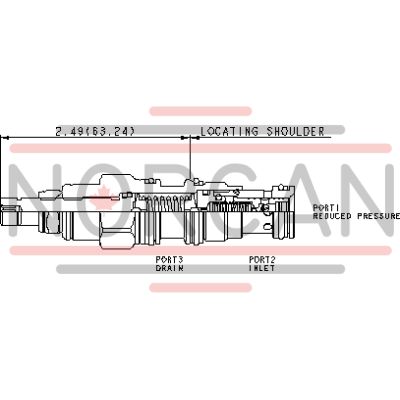

The Sun Hydraulics PBDBLDN (PBDBLDN) is a pilot-operated pressure reducing valve designed to manage high primary pressures and maintain a consistent reduced pressure across hydraulic systems. This valve operates by reducing the inlet pressure at port 2 to a stable, lower pressure at port 1, making it ideal for circuits that require multiple pressure settings from a single pump. It features interchangeable three-port pressure reducing and reducing-relieving cartridges, which share the same flow path and cavity size for easy integration. The PBDBLDN model is equipped with a main stage orifice protected by a 150-micron stainless steel screen and can handle maximum operating pressures up to 5000 psi (350 bar). The valve is highly stable with low hysteresis, exhibiting flat pressure-flow characteristics, although it does not provide fast-acting responses typical of direct-acting valves. Pressure at port 3 adds directly to the valve setting in a 1:1 ratio but should not exceed 5000 psi (350 bar). This model incorporates Sun's floating style construction to reduce the risk of internal part binding due to excessive installation torque or machining variations. It also accommodates reverse flow from reduced pressure port 1 back to inlet port 2, though this may close the main spool if free reverse flow is necessary; thus, adding a separate check valve is recommended. Additional features include corrosion-resistant options identified by specific model code suffixes and compatibility with EPDM seals for phosphate ester fluids. The PBDBLDN model offers adjustable settings throughout its full range using W or Y control options unless specified otherwise. Installation requires specific torque values and hex sizes for adjustment screws and locknuts, ensuring secure and precise operation in various hydraulic applications.
The Sun Hydraulics PBDBLDN (PBDBLDN) is a pilot-operated pressure reducing valve designed to manage high primary pressures and maintain a consistent reduced pressure across hydraulic systems. This valve operates by reducing the inlet pressure at port 2 to a stable, lower pressure at port 1, making it ideal for circuits that require multiple pressure settings from a single pump. It features interchangeable three-port pressure reducing and reducing-relieving cartridges, which share the same flow path and cavity size for easy integration. The PBDBLDN model is equipped with a main stage orifice protected by a 150-micron stainless steel screen and can handle maximum operating pressures up to 5000 psi (350 bar). The valve is highly stable with low hysteresis, exhibiting flat pressure-flow characteristics, although it does not provide fast-acting responses typical of direct-acting valves. Pressure at port 3 adds directly to the valve setting in a 1:1 ratio but should not exceed 5000 psi (350 bar). This model incorporates Sun's floating style construction to reduce the risk of internal part binding due to excessive installation torque or machining variations. It also accommodates reverse flow from reduced pressure port 1 back to inlet port 2, though this may close the main spool if free reverse flow is necessary; thus, adding a separate check valve is recommended. Additional features include corrosion-resistant options identified by specific model code suffixes and compatibility with EPDM seals for phosphate ester fluids. The PBDBLDN model offers adjustable settings throughout its full range using W or Y control options unless specified otherwise. Installation requires specific torque values and hex sizes for adjustment screws and locknuts, ensuring secure and precise operation in various hydraulic applications.
Pilot-operated, pressure reducing valves reduce a high primary pressure at the inlet (port 2) to a constant reduced pressure at port 1, allowing circuits with multiple pressure requirements to be operated using a single pump.
- All three-port pressure reducing and reducing/relieving cartridges are physically interchangeable (i.e. same flow path, same cavity for a given frame size). When considering mounting configurations, it is sometimes recommended that a full capacity return line (port 3) be used with reducing/relieving cartridges.
- Full reverse flow from reduced pressure (port 1) to inlet (port 2) may cause the main spool to close. If reverse free flow is required in the circuit, consider adding a separate check valve to the circuit.
- If pilot flow consumption is critical, consider using direct acting reducing/relieving valves.
- Main stage orifice is protected by a 150 micron stainless steel screen.
- Recommended maximum inlet pressure is determined by the adjustment range. Ranges D, E, N, and Q are tested with a 2000 psi (140 bar) maximum differential between inlet and reduced pressure. Ranges A, B, and H are tested with a 3000 psi (210 bar) maximum differential between inlet and reduced pressure. Ranges C and W are tested with 5000 psi (350 bar) of inlet pressure.
- Pilot operated valves exhibit exceptionally flat pressure/flow characteristics, are very stable and have low hysteresis.
- Pressure at port 3 is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar).
- Pilot operated reducing, reducing/relieving valves by nature are not fast acting valves. For superior dynamic response, consider direct acting valves.
- W and Y controls (where applicable) can be specified with or without a special setting. When no special setting is specified, the valve is adjustable throughout its full range using the W or Y control. When a special setting is specified, this setting represents the maximum setting of the valve.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP for external stainless steel components, or /LH for external zinc-nickel plated components. See the CONFIGURATION section for all options. For further details, please see the Materials of Construction page located under TECH RESOURCES.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 10 gpm40 L/min. |
| Factory Pressure Settings Established at | blocked control port (dead headed)blocked control port (dead headed) |
| Maximum Operating Pressure | 5000 psi350 bar |
| Control Pilot Flow | 7 - 10 in³/min.0,11 - 0,16 L/min. |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .30 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-011-006 |
Show FAQ
Additional Resources
- QuickDesign with SmartConnect Offers Drag-and-Drop Schematic Tool
- Sun Expands Corrosion-Resistant Solutions
- Series 4 PLUS Cartridges Offer Higher Flows with Lower Pressure Losses
- Sun Offers Zinc-Nickel Plating for Corrosion Resistance
- Sun Cartridges with EPDM Seals
- Manufacturing Sun Cartridge Cavities
- Reducing and Reducing/Relieving Valves
- Fluid and Temperature Recommendations
- Performance Data
- Sun's Floating Style Screw-In Cartridge
- Units of Measure, Settings, and Conversions
- Sun Model Code Explanation; 999-901-334
- Cavity Information (S-171) and Tooling
- Cartridges: Materials of Construction
Notes:
- Maximum pressure differentials for spring ranges: A and B are 3000 psi (210 bar) N and Q are 2000 psi (140 bar) W is 5000 psi (350 bar)inlet pressure
- For Series 1 cartridges configured with an O control (panel mount handknob), a .75 in. (19 mm) diameter hole is required in the panel.
