PBJBWJN


$367.43 USD
  • SUN HYDRAULICS
  • Material:PBJBWJN
  • Model:PBJB-WJN
  • Summary:Cartridge

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

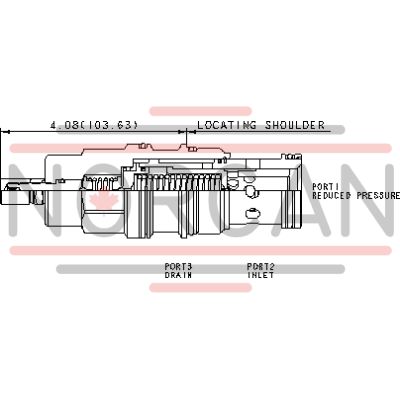

The Sun Hydraulics PBJBWJN (PBJBWJN) is a pilot-operated, pressure reducing valve designed to lower high primary pressure at the inlet port to a constant reduced pressure at another port, enabling circuits with multiple pressure requirements to operate using a single pump. This model is part of the three-port pressure reducing and reducing-relieving cartridges, which are interchangeable within the same frame size. For optimal performance, it is recommended that a full capacity return line port be utilized with reducing-relieving cartridges. The valve features a 150-micron stainless steel screen protecting the main stage orifice and can handle maximum operating pressures up to 5000 psi (350 bar). It offers stable pressure-flow characteristics with low hysteresis and should not exceed 5000 psi at port 3. The valve's construction minimizes internal part binding due to excessive installation torque or machining variations. It includes EPDM seals for systems with phosphate ester fluids but should avoid petroleum-based fluids as they can damage the seals. The PBJBWJN has an adjustment range tested with various maximum differential pressures depending on the range: D, E, N, and Q ranges are tested up to 2000 psi (140 bar), while A, B, and H ranges handle up to 3000 psi (210 bar), and C and W ranges manage up to 5000 psi (350 bar). This model weighs approximately 2.90 lb (1.30 kg) and requires specific torque settings for installation. For applications requiring reverse flow from reduced pressure port back to inlet port, additional check valves may be necessary as reverse flow can cause the main spool to close unexpectedly.

Pilot-operated, pressure reducing valves reduce a high primary pressure at the inlet (port 2) to a constant reduced pressure at port 1, allowing circuits with multiple pressure requirements to be operated using a single pump.

  • All three-port pressure reducing and reducing/relieving cartridges are physically interchangeable (i.e. same flow path, same cavity for a given frame size). When considering mounting configurations, it is sometimes recommended that a full capacity return line (port 3) be used with reducing/relieving cartridges.
  • Full reverse flow from reduced pressure (port 1) to inlet (port 2) may cause the main spool to close. If reverse free flow is required in the circuit, consider adding a separate check valve to the circuit.
  • If pilot flow consumption is critical, consider using direct acting reducing/relieving valves.
  • Main stage orifice is protected by a 150 micron stainless steel screen.
  • Recommended maximum inlet pressure is determined by the adjustment range. Ranges D, E, N, and Q are tested with a 2000 psi (140 bar) maximum differential between inlet and reduced pressure. Ranges A, B, and H are tested with a 3000 psi (210 bar) maximum differential between inlet and reduced pressure. Ranges C and W are tested with 5000 psi (350 bar) of inlet pressure.
  • Pilot operated valves exhibit exceptionally flat pressure/flow characteristics, are very stable and have low hysteresis.
  • Pressure at port 3 is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar).
  • Pilot operated reducing, reducing/relieving valves by nature are not fast acting valves. For superior dynamic response, consider direct acting valves.
  • Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
  • Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

CavityT-19A
Series4
Capacity80 gpm320 L/min.
Factory Pressure Settings Established atblocked control port (dead headed)blocked control port (dead headed)
Maximum Operating Pressure5000 psi350 bar
Control Pilot Flow15 - 20 in³/min.0,25 - 0,33 L/min.
Adjustment - Number of Clockwise Turns to Increase Setting55
Valve Hex Size1 5/8 in.41,3 mm
Valve Installation Torque350 - 375 lbf ft474 - 508 Nm
Adjustment Screw Internal Hex Size5/32 in.4 mm
Locknut Hex Size9/16 in.15 mm
Locknut Torque80 - 90 lbf in.9 - 10 Nm
Model Weight2.90 lb1,30 kg
Seal kit - CartridgeViton: 990-019-006

Show FAQ

Additional Resources



Notes:
  • Maximum pressure differentials for spring ranges: A and B are 3000 psi (210 bar) N and Q are 2000 psi (140 bar) W is 5000 psi (350 bar)inlet pressure
