The Sun Hydraulics PSDBKBN (Material Number: PSDBKBN) is a direct-acting pressure reducing/relieving valve designed to manage high primary pressures at the inlet port, reducing them to a consistent lower pressure at port 1, while offering full-flow relief from port 1 to tank port 3. This valve features a damped construction for stable operation, making it suitable for applications requiring high reduced pressure. It is particularly useful in accumulator circuits due to its design that minimizes secondary circuit leakage by eliminating pilot control flow. The valve's direct-acting nature ensures reliable performance in contaminated systems and provides a superior dynamic response compared to pilot-operated models. However, it exhibits a transitional step between reducing and relieving modes, making it unsuitable for counterbalancing applications. The valve's maximum operating pressure is 5000 psi (350 bar), with port 3 pressure limited to 3000 psi (210 bar). The leakage rate is specified at 2 in\u00b3/min (30 cc/min) at mid-range settings with a supply pressure of 2000 psi (140 bar). The design incorporates Sun's floating style construction to prevent internal binding due to installation torque or machining variations. It also allows reverse flow from reduced pressure port 1 to inlet port 2, but this may cause the main spool to close unless a separate check valve is added for reverse free flow requirements. Adjustments can be made using an internal hex screw, with specific torque values provided for installation and locknut adjustments. This robust and stable valve is ideal for use in systems where fast response and reliability are critical, ensuring efficient operation under various conditions without additional pilot control complexities.

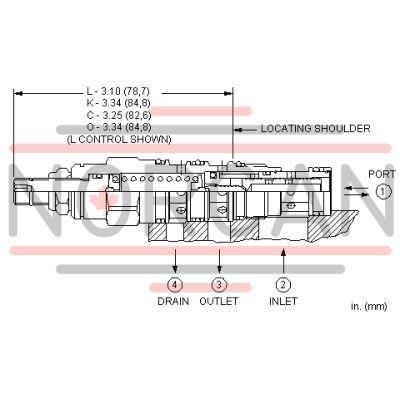

Direct-acting, pressure reducing/relieving valves reduce a high primary pressure at the inlet (port 2) to a constant reduced pressure at port 1, with a full-flow relief function from port 1 to tank (port 3). Draining port 4 makes the valve insensitive to pressure at port 3. These valves incorporate a damped construction for stable operation allowing the use of high reduced pressure.

  • Maximum pressure at port 3 should be limited to 3000 psi (210 bar).
  • All spring ranges are tested for correct operation with 5000 psi (350 bar) inlet pressure.
  • Suitable for accumulator circuits since the absence of pilot control flow results in reduced secondary circuit leakage.
  • Direct acting concept provides highly reliable operation in contaminated systems, especially at dead headed conditions.
  • Unlike pilot operated versions, direct acting valves exhibit a transitional step between reducing and relieving modes. This step equals 5% of the high end of the adjustment range, independent of the valve setting. Therefore, these valves may not be suitable for counterbalancing applications.
  • Direct operated version offers superior dynamic response compared to equivalent pilot operated models.
  • Pressure on the drain (port 4) is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar).
  • Leakage specified in Technical Data is out of port 3 with a supply pressure of 2000 psi (140 bar) and the valve set at mid range. This leakage is directly proportional to pressure differential and inversely proportional to viscosity expressed in centistokes.
  • Full reverse flow from reduced pressure (port 1) to inlet (port 2) may cause the main spool to close. If reverse free flow is required in the circuit, consider adding a separate check valve to the circuit.
  • By controlling the pressure at the drain (port 4), the effective setting of the valve can be increased over the nominal valve setting.
  • Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

CavityT-21A
Series1
Capacity10 gpm40 L/min.
Factory Pressure Settings Established atblocked control port (dead headed)blocked control port (dead headed)
Maximum Operating Pressure5000 psi350 bar
Maximum Valve Leakage at 110 SUS (24 cSt)2 in³/min.@1000 psi30 cc/min.@70 bar
Adjustment - Number of Clockwise Turns to Increase Setting55
Valve Hex Size7/8 in.22,2 mm
Valve Installation Torque30 - 35 lbf ft41 - 47 Nm
Adjustment Screw Internal Hex Size5/32 in.4 mm
Locknut Hex Size9/16 in.15 mm
Locknut Torque80 - 90 lbf in.9 - 10 Nm
Model Weight.30 lb0,15 kg
Seal kit - CartridgeViton: 990-021-006

Show FAQ

Additional Resources



Notes:
  • For Series 1 cartridges configured with an O control (panel mount handknob), a .75 in. (19 mm) diameter hole is required in the panel.
