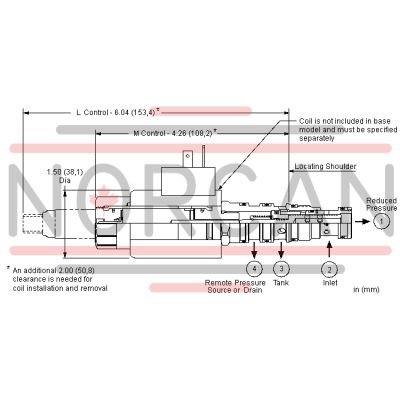

The Sun Hydraulics PSDPMBN812N (PSDPMBN812N) is an electroproportional, direct-acting reducer-reliever valve designed to manage hydraulic pressure effectively. It reduces high primary pressure at inlet port 2 to a consistent lower pressure at port 1 while offering a full flow relief function from port 1 to tank port 3. This valve is inherently biased towards the relieving mode; however, energizing the coil links port 2 to port 1, with increasing current proportionally raising the reduced pressure at port 1. If the pressure at port 1 surpasses the coil-induced setting, it is relieved to port 3. The valve's design ensures minimal oil consumption due to its closed transition between reducing and relieving states. This valve is particularly suitable for accumulator circuits as it minimizes secondary circuit leakage by eliminating pilot control flow. Its direct-acting mechanism ensures reliable operation even in contaminated systems and dead-headed conditions. For optimal performance, an amplifier with current sensing and adjustable dither (100 - 250 Hz) is recommended. Notably, full reverse flow from reduced pressure port 1 to inlet port 2 may cause closure of the main spool; hence, a separate check valve might be necessary for circuits requiring reverse free flow. The PSDPMBN812N incorporates Sun's floating style construction, which minimizes internal part binding due to installation torque or cavity/cartridge machining variations. It features a maximum operating pressure of 5000 psi (350 bar) and an optimum inlet pressure of 3000 psi (210 bar). The valve supports manual control options via an 'L' adjustment screw for emergency settings or boosting during power failures. This product also includes Viton seal kits for enhanced durability and compatibility with various hydraulic systems.
This electro-proportional, direct-acting reducer/reliever valve reduces a high primary pressure at the inlet (port 2) to a constant reduced pressure at port 1, with a full flow relief function from port 1 to tank (port 3). The valve is biased to the relieving mode. Energizing the coil connects port 2 to port 1. Increasing the current to the coil will proportionally increase the reduced pressure at port 1. If pressure at port 1 exceeds the setting induced by the coil, pressure at port 1 is relieved to port 3. Draining port 4 makes the valve insensitive to pressure at port 3. This valve is closed in the transition between reducing and relieving resulting in very low consumption of oil. Optional full manual control is available.
- Maximum pressure at port 3 should be limited to 3000 psi (210 bar).
- All spring ranges are tested for correct operation with 5000 psi (350 bar) inlet pressure.
- Suitable for accumulator circuits since the absence of pilot control flow results in reduced secondary circuit leakage.
- Direct acting concept provides highly reliable operation in contaminated systems, especially at dead headed conditions.
- Leakage specified in Technical Data is out of port 3 with a supply pressure of 2000 psi (140 bar) and the valve set at mid range. This leakage is directly proportional to pressure differential and inversely proportional to viscosity expressed in centistokes.
- The transition from reducing to relieving is closed. The result is very low leakage. However, there is a transitional step increase in pressure between reducing and relieving modes. This step equals about 5% of the high end of the adjustment range, independent of the valve setting.
- For optimum performance, an amplifier with current sensing and adjustable dither should be used. Dither should be adjustable between 100 - 250 Hz.
- Full reverse flow from reduced pressure (port 1) to inlet (port 2) may cause the main spool to close. If reverse free flow is required in the circuit, consider adding a separate check valve to the circuit.
- Uses for the 'L' manual screw adjustment include: emergency valve setting during power failure or alternatively boosting the valve setting
- With the 'L' adjustment screw, all ranges are factory set at zero (adjustment screw fully backed out). With the coil de-energized, clockwise adjustment of the screw will increase the spring bias load up to the maximum setting for that range. With the coil energized, any mechanical pressure setting is directly additive to the coil induced value.
- By controlling the pressure at the drain (port 4), the effective setting of the valve can be increased over the nominal valve setting.
- Pressure on the drain (port 4) is directly additive to the valve setting at a 1:1 ratio and should not exceed 3000 psi (210 bar).
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-21A |
| Series | 1 |
| Capacity | 5 gpm20 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2.5 in³/min.41 cc/min. |
| Optimum Inlet Pressure | 3000 psi210 bar |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Solenoid Tube Diameter | .75 in.19 mm |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight (with coil) | 1.20 lb0,55 kg |
| Seal kit - Cartridge | Viton: 990-021-006 |
| Seal and nut kit - Coil | Viton: 990-770-006Viton: 990-770-006 |
