PSFBCAN


$147.23 USD
  • SUN HYDRAULICS
  • Material:PSFBCAN
  • Model:PSFB-CAN
  • Summary:Cartridge

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics PSFBCAN (Material Number: PSFBCAN) is a direct-acting pressure reducing/relieving valve designed to manage high primary pressure at the inlet port 2, reducing it to a stable, lower pressure at port 1, while providing full-flow relief from port 1 to tank port 3. This valve features a damped construction for stable operation and is particularly suitable for accumulator circuits due to its low secondary circuit leakage. It operates effectively with a maximum operating pressure of 5000 psi (350 bar) and is tested for correct operation with an inlet pressure of up to 5000 psi (350 bar). The valve's design includes a draining port that makes it insensitive to pressure at the tank port, ensuring reliable performance even in contaminated systems. The PSFBCAN model is not recommended for counterbalancing applications due to its transitional step between reducing and relieving modes. It offers superior dynamic response compared to pilot-operated models and allows the effective setting of the valve to be increased by controlling the drain port's pressure. The valve incorporates Sun's floating style construction, which minimizes potential internal binding due to installation torque or machining variations. For optimal performance, maximum pressure at port 3 should be limited to 3000 psi (210 bar), and leakage specifications are based on conditions with a supply pressure of 2000 psi (140 bar). If reverse flow from reduced pressure port 1 back to inlet port 2 is required, adding a separate check valve is advisable. The PSFBCAN model also includes adjustment features such as clockwise turns for setting increase and specific torque requirements for installation and locknut adjustments.

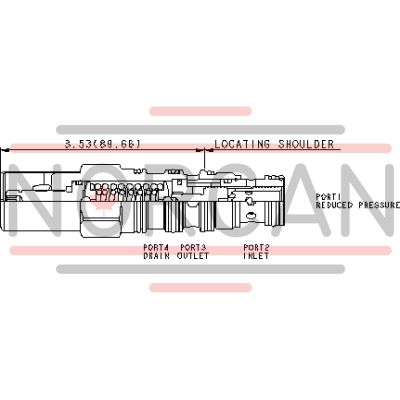

Direct-acting, pressure reducing/relieving valves reduce a high primary pressure at the inlet (port 2) to a constant reduced pressure at port 1, with a full-flow relief function from port 1 to tank (port 3). Draining port 4 makes the valve insensitive to pressure at port 3. These valves incorporate a damped construction for stable operation allowing the use of high reduced pressure.

  • Maximum pressure at port 3 should be limited to 3000 psi (210 bar).
  • All spring ranges are tested for correct operation with 5000 psi (350 bar) inlet pressure.
  • Suitable for accumulator circuits since the absence of pilot control flow results in reduced secondary circuit leakage.
  • Direct acting concept provides highly reliable operation in contaminated systems, especially at dead headed conditions.
  • Unlike pilot operated versions, direct acting valves exhibit a transitional step between reducing and relieving modes. This step equals 5% of the high end of the adjustment range, independent of the valve setting. Therefore, these valves may not be suitable for counterbalancing applications.
  • Direct operated version offers superior dynamic response compared to equivalent pilot operated models.
  • Pressure on the drain (port 4) is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar).
  • Leakage specified in Technical Data is out of port 3 with a supply pressure of 2000 psi (140 bar) and the valve set at mid range. This leakage is directly proportional to pressure differential and inversely proportional to viscosity expressed in centistokes.
  • Full reverse flow from reduced pressure (port 1) to inlet (port 2) may cause the main spool to close. If reverse free flow is required in the circuit, consider adding a separate check valve to the circuit.
  • By controlling the pressure at the drain (port 4), the effective setting of the valve can be increased over the nominal valve setting.
  • Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

CavityT-22A
Series2
Capacity20 gpm80 L/min.
Factory Pressure Settings Established atblocked control port (dead headed)blocked control port (dead headed)
Maximum Operating Pressure5000 psi350 bar
Maximum Valve Leakage at 110 SUS (24 cSt)3 in³/min.@1000 psi50 cc/min.@70 bar
Adjustment - Number of Clockwise Turns to Increase Setting55
Valve Hex Size1 1/8 in.28,6 mm
Valve Installation Torque45 - 50 lbf ft61 - 68 Nm
Adjustment Screw Internal Hex Size5/32 in.4 mm
Locknut Hex Size9/16 in.15 mm
Locknut Torque80 - 90 lbf in.9 - 10 Nm
Model Weight.30 lb0,15 kg
Seal kit - CartridgeViton: 990-022-006
