SUN HYDRAULICS
PSFBCEN


$149.22 USD
  • SUN HYDRAULICS
  • Material:PSFBCEN
  • Model:PSFB-CEN
  • Summary:Cartridge

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

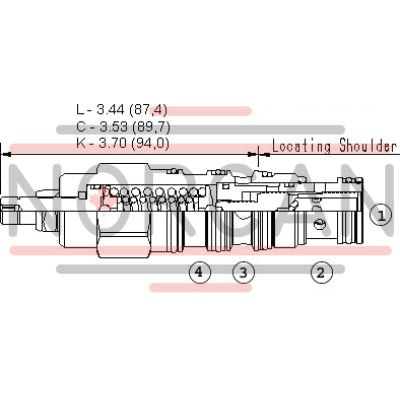

The Sun Hydraulics PSFBCEN (PSFBCEN) is a direct-acting, pressure-reducing/relieving valve designed for hydraulic systems requiring precise pressure control. This valve reduces a high primary pressure at the inlet port 2 to a constant reduced pressure at port 1 and features a full-flow relief function from port 1 to tank port 3. It incorporates a damped construction for stable operation and allows the use of high reduced pressure. The valve is particularly suitable for accumulator circuits due to its design, which minimizes secondary circuit leakage by eliminating pilot control flow. The direct-acting concept ensures reliable performance in contaminated systems and offers superior dynamic response compared to pilot-operated models. The maximum allowable pressure at port 3 is limited to 3000 psi (210 bar), while all spring ranges are tested with an inlet pressure of up to 5000 psi (350 bar). The valve's design includes a transitional step between reducing and relieving modes, which may not be ideal for counterbalancing applications. Pressure on drain port 4 is directly additive to the valve setting, and it should not exceed 5000 psi (350 bar). Leakage specifications indicate that leakage occurs out of port 3 with a supply pressure of 2000 psi (140 bar) when set at mid-range, and this leakage varies based on pressure differential and fluid viscosity. Additionally, the PSFBCEN model employs Sun's floating style construction to minimize internal part binding due to installation torque or machining variations. It has a capacity of up to 20 gpm (80 L/min) and features adjustable settings with specific torque requirements for installation and adjustment components. This robust valve offers reliable performance in various hydraulic applications where precise pressure control is crucial.

Direct-acting, pressure reducing/relieving valves reduce a high primary pressure at the inlet (port 2) to a constant reduced pressure at port 1, with a full-flow relief function from port 1 to tank (port 3). Draining port 4 makes the valve insensitive to pressure at port 3. These valves incorporate a damped construction for stable operation allowing the use of high reduced pressure.

  • Maximum pressure at port 3 should be limited to 3000 psi (210 bar).
  • All spring ranges are tested for correct operation with 5000 psi (350 bar) inlet pressure.
  • Suitable for accumulator circuits since the absence of pilot control flow results in reduced secondary circuit leakage.
  • Direct acting concept provides highly reliable operation in contaminated systems, especially at dead headed conditions.
  • Unlike pilot operated versions, direct acting valves exhibit a transitional step between reducing and relieving modes. This step equals 5% of the high end of the adjustment range, independent of the valve setting. Therefore, these valves may not be suitable for counterbalancing applications.
  • Direct operated version offers superior dynamic response compared to equivalent pilot operated models.
  • Pressure on the drain (port 4) is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar).
  • Leakage specified in Technical Data is out of port 3 with a supply pressure of 2000 psi (140 bar) and the valve set at mid range. This leakage is directly proportional to pressure differential and inversely proportional to viscosity expressed in centistokes.
  • Full reverse flow from reduced pressure (port 1) to inlet (port 2) may cause the main spool to close. If reverse free flow is required in the circuit, consider adding a separate check valve to the circuit.
  • By controlling the pressure at the drain (port 4), the effective setting of the valve can be increased over the nominal valve setting.
  • Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

CavityT-22A
Series2
Capacity20 gpm80 L/min.
Factory Pressure Settings Established atblocked control port (dead headed)blocked control port (dead headed)
Maximum Operating Pressure5000 psi350 bar
Maximum Valve Leakage at 110 SUS (24 cSt)3 in³/min.@1000 psi50 cc/min.@70 bar
Adjustment - Number of Clockwise Turns to Increase Setting55
Valve Hex Size1 1/8 in.28,6 mm
Valve Installation Torque45 - 50 lbf ft61 - 68 Nm
Adjustment Screw Internal Hex Size5/32 in.4 mm
Locknut Hex Size9/16 in.15 mm
Locknut Torque80 - 90 lbf in.9 - 10 Nm
Model Weight.30 lb0,15 kg
Seal kit - CartridgeViton: 990-022-006
