SUN HYDRAULICS
QCDCLDN
$174.63 USD
- SUN HYDRAULICS
- Material:QCDCLDN
- Model:QCDC-LDN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics QCDCLDN (Material Number: QCDCLDN) is an accumulator sense, pump unload pilot valve designed to optimize hydraulic system efficiency by managing pressure in an accumulator. When the pressure at port 2 reaches the preset valve setting, port 3 connects to port 4, venting a relief valve and unloading the pump. This valve features a 30:1 ratio between unload setting and reset; it reactivates the pump once pressure at port 2 falls below 70% of the initial setting. The integral free-flow check valve supports pump flows up to 12 gpm (50 L/min), while higher capacity applications may require the QPAC model with a separate check cartridge. This model maintains a consistent differential ratio through its spool design, which minimizes wear over time. It also features minimal clearance between spool and sleeve, alongside sealed pilot piston diameters to reduce silting potential. A separate drain line is essential to avoid erratic behavior from tank line pressure fluctuations. When selecting adjustment ranges, consider that low operating pressures and differentials can narrow the band between unload and reset, necessitating precise system design. The QCDCLDN incorporates Sun\u2019s floating style construction, reducing risks of internal binding due to installation torque or machining variations. It fits in Cavity T-21A with a capacity of 15 gpm (60 L/min) and operates under pressures up to 5000 psi (350 bar). The check cracking pressure is set at 4 psi (0.3 bar), with a pilot flow capacity of 46 in\u00b3/min (0.75 L/min). Installation requires specific torque settings for optimal performance, making this valve suitable for demanding hydraulic applications requiring reliable pressure management and efficient system operation.
The Sun Hydraulics QCDCLDN (Material Number: QCDCLDN) is an accumulator sense, pump unload pilot valve designed to optimize hydraulic system efficiency by managing pressure in an accumulator. When the pressure at port 2 reaches the preset valve setting, port 3 connects to port 4, venting a relief valve and unloading the pump. This valve features a 30:1 ratio between unload setting and reset; it reactivates the pump once pressure at port 2 falls below 70% of the initial setting. The integral free-flow check valve supports pump flows up to 12 gpm (50 L/min), while higher capacity applications may require the QPAC model with a separate check cartridge. This model maintains a consistent differential ratio through its spool design, which minimizes wear over time. It also features minimal clearance between spool and sleeve, alongside sealed pilot piston diameters to reduce silting potential. A separate drain line is essential to avoid erratic behavior from tank line pressure fluctuations. When selecting adjustment ranges, consider that low operating pressures and differentials can narrow the band between unload and reset, necessitating precise system design. The QCDCLDN incorporates Sun\u2019s floating style construction, reducing risks of internal binding due to installation torque or machining variations. It fits in Cavity T-21A with a capacity of 15 gpm (60 L/min) and operates under pressures up to 5000 psi (350 bar). The check cracking pressure is set at 4 psi (0.3 bar), with a pilot flow capacity of 46 in\u00b3/min (0.75 L/min). Installation requires specific torque settings for optimal performance, making this valve suitable for demanding hydraulic applications requiring reliable pressure management and efficient system operation.

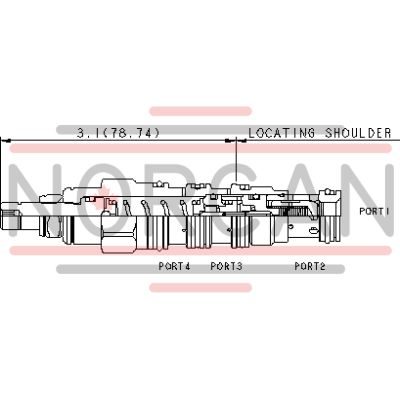

The accumulator sense, pump unload pilot valve is used to sense pressure in an accumulator at port 2 of the valve and when the pressure at port 2 reaches the valve setting, port 3 connects to port 4 to vent a relief valve and unload the pump. This valve has a 30% ratio between unload setting and reset; when pressure at port 2 falls below 70% of the valve setting, port 3 is blocked from port 4 and the pump will come back online to recharge the accumulator. The integral free-flow check valve is suitable for pump flows up to 12 gpm (50 L/min). For higher capacity pumps, another version of accumulator sense, pump unload cartridge, QPAC, which requires a separate check cartridge is available.
- The pressure differential between unload and reset will be within +/- 1% of the stated ratio of the valve with up to an additional 25 psi (1,7 bar) due to dynamic seal friction.
- The accumulator sensing area is positively sealed.
- The spool design of this valve allows it to maintain a fixed differential ratio because the areas are created by diameters on the spool that will not wear or change with use.
- Minimum clearances between the spool and sleeve and a seal on the pilot piston diameter significantly reduce the potential for silting.
- When applying this cartridge, a separate drain line is required to prevent erratic operation caused by tank line pressure fluctuations.
- NOTE: Careful consideration should be given when selecting an adjustment range. System pressure drops and flows tend to affect the operation of unloading valves. Low operating pressures combined with low differentials result in a very narrow band between unload and reset, requiring precise system design. High flow rates typically mean high pressure drops, which subtract from the differential the valve has to work with.
- Sun has designed a variety of standard accumulator/pump unload assemblies with a variety of features. These assemblies can be found on our website under SOLUTIONS: ACCUMLATOR SENSE, PUMP UNLOAD.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-21A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Check Cracking Pressure | 4 psi0,3 bar |
| Pressure Drop, Port 1 to Port 2 | 100 psi@15 gpm7 bar@60 L/min. |
| Pilot Flow Capacity | 46 in³/min.0,75 L/min. |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .35 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-021-006 |
