SUN HYDRAULICS
QPABLAN
$169.96 USD
- SUN HYDRAULICS
- Material:QPABLAN
- Model:QPAB-LAN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

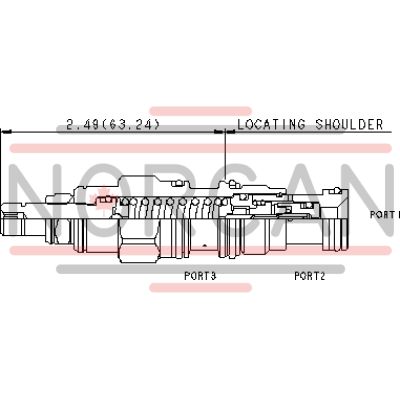

The Sun Hydraulics QPABLAN (Material Number: QPABLAN) is an accumulator sense, pump unload pilot valve designed to efficiently manage hydraulic systems by sensing pressure at port 1 and unloading the pump when the pressure reaches a specified setting. This valve features a 20:1 ratio between unload setting and reset, ensuring that when the pressure at port 1 drops below 80% of the valve setting, port 2 is blocked from port 3, allowing the pump to recharge the accumulator. A separate check valve is required between port 1 and the pump for optimal functionality. The valve incorporates a spool design that maintains a fixed differential ratio by using diameters on the spool that resist wear, ensuring long-term reliability. The design also includes minimum clearances between the spool and sleeve and a seal on the pilot piston diameter to significantly reduce silting potential. A separate drain line is necessary to prevent erratic operation due to tank line pressure fluctuations. This model requires careful selection of adjustment range due to system pressure drops and flow rates affecting operation; low pressures combined with low differentials result in narrow bands between unload and reset settings. The QPABLAN model has a maximum operating pressure of 5000 psi (350 bar) and features Sun's floating style construction to minimize internal binding risks due to installation torque or machining variations. It fits into Cavity T-11A, Series 1 with a capacity of 46 in\u00b3/min (0.75 L/min). Installation torque ranges from 30-35 lbf ft (41-47 Nm), with adjustment made via an internal hex screw size of 5/32 in (4 mm).
The Sun Hydraulics QPABLAN (Material Number: QPABLAN) is an accumulator sense, pump unload pilot valve designed to efficiently manage hydraulic systems by sensing pressure at port 1 and unloading the pump when the pressure reaches a specified setting. This valve features a 20:1 ratio between unload setting and reset, ensuring that when the pressure at port 1 drops below 80% of the valve setting, port 2 is blocked from port 3, allowing the pump to recharge the accumulator. A separate check valve is required between port 1 and the pump for optimal functionality. The valve incorporates a spool design that maintains a fixed differential ratio by using diameters on the spool that resist wear, ensuring long-term reliability. The design also includes minimum clearances between the spool and sleeve and a seal on the pilot piston diameter to significantly reduce silting potential. A separate drain line is necessary to prevent erratic operation due to tank line pressure fluctuations. This model requires careful selection of adjustment range due to system pressure drops and flow rates affecting operation; low pressures combined with low differentials result in narrow bands between unload and reset settings. The QPABLAN model has a maximum operating pressure of 5000 psi (350 bar) and features Sun's floating style construction to minimize internal binding risks due to installation torque or machining variations. It fits into Cavity T-11A, Series 1 with a capacity of 46 in\u00b3/min (0.75 L/min). Installation torque ranges from 30-35 lbf ft (41-47 Nm), with adjustment made via an internal hex screw size of 5/32 in (4 mm).
The accumulator sense, pump unload pilot valve is used to sense pressure in an accumulator at port 1 of the valve and when the pressure at port 1 reaches the valve setting, port 2 connects to port 3 to vent a relief valve and unload the pump. This valve has a 20% ratio between unload setting and reset; when pressure at port 1 falls below 80% of the valve setting, port 2 is blocked from port 3 and the pump will come back online to recharge the accumulator. This valve requires a separate check valve between port 1 and the pump. Another version of the accumulator sense, pump unload valve, QCDB, includes a free-flow check valve for pump flows under 12 gpm (50 L/min).
- The pressure differential between unload and reset will be within +/- 1% of the stated ratio of the valve with up to an additional 25 psi (1,7 bar) due to dynamic seal friction.
- The accumulator sensing area is positively sealed.
- The spool design of this valve allows it to maintain a fixed differential ratio because the areas are created by diameters on the spool that will not wear or change with use.
- Minimum clearances between the spool and sleeve and a seal on the pilot piston diameter significantly reduce the potential for silting.
- When applying this cartridge, a separate drain line is required to prevent erratic operation caused by tank line pressure fluctuations.
- NOTE: Careful consideration should be given when selecting an adjustment range. System pressure drops and flows tend to affect the operation of unloading valves. Low operating pressures combined with low differentials result in a very narrow band between unload and reset, requiring precise system design. High flow rates typically mean high pressure drops, which subtract from the differential the valve has to work with.
- Sun has designed a variety of standard accumulator/pump unload assemblies with a variety of features. These assemblies can be found on our website under SOLUTIONS: ACCUMLATOR SENSE, PUMP UNLOAD.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 46 in³/min.0,75 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Pilot Flow Capacity | 46 in³/min.0,75 L/min. |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .35 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-011-006 |
