SUN HYDRAULICS
RBAACBN

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

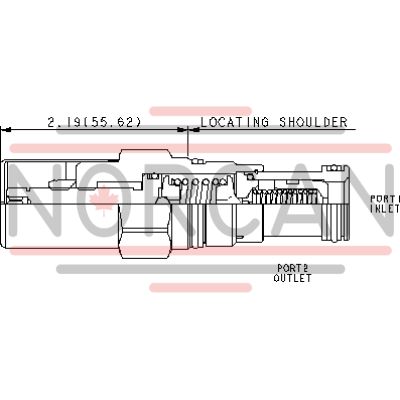

The Sun Hydraulics RBAACBN (RBAACBN) is a direct-acting, pilot relief cartridge designed to remotely control the pressure setting of other pilot-operated valves. It is best utilized in conjunction with higher flow valves due to its capacity being limited to pilot flow. The main stage orifice is safeguarded by a 150-micron stainless steel screen, making it suitable for load-holding applications. Notably, back pressure on the tank port (port 2) directly adds to the valve setting at a 1:1 ratio. For systems using phosphate ester fluids, cartridges with EPDM seals are recommended, as exposure to petroleum-based fluids can damage these seals. The valve features W and Y controls that allow for full-range adjustability unless a special setting is specified. Corrosion-resistant options are available with external stainless steel or zinc-nickel plated components, identified by model code suffixes AP or LH respectively. This cartridge incorporates Sun\u2019s floating style construction, minimizing internal binding risks due to excessive installation torque or cavity-cartridge machining variations. It fits into Cavity T-3A and belongs to Series 2, with a capacity of 0.5 gpm (2 L/min) and a maximum operating pressure of 5000 psi (350 bar). Typical response time is approximately 2 ms, with maximum valve leakage at 110 SUS (24 cSt) being around 5 drops/min (0.3 cc/min). The valve's adjustment involves five clockwise turns to increase the setting and requires specific torque values for installation and locknut adjustments. With a weight of 0.50 lb (0.25 kg), it comes equipped with Viton seal kits for optimal performance in demanding environments.
