SUN HYDRAULICS
RELIEF CART

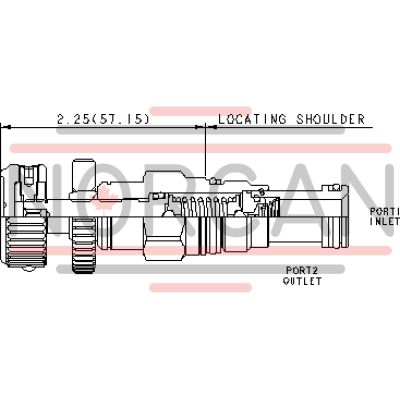

RBACKDN

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics RBACKDN (Material Number: RBACKDN) is a direct-acting pilot relief cartridge designed to remotely control the pressure setting of other pilot-operated valves. Ideal for systems requiring precise pressure regulation, this valve is best used in conjunction with higher flow valves due to its limited capacity to pilot flow. Featuring EPDM seals, it is compatible with systems using phosphate ester fluids, but should not be exposed to petroleum-based fluids or greases, as these can damage the seals. The main stage orifice is safeguarded by a 150-micron stainless steel screen, making it suitable for load-holding applications. The valve's setting can be influenced by back pressure on the tank port at a 1:1 ratio. The RBACKDN model incorporates corrosion-resistant components and is available with options such as external stainless steel or zinc-nickel plating for use in corrosive environments. Its floating style construction minimizes internal binding risks due to installation torque or machining variations. This cartridge fits into a T-10A cavity and offers a capacity of 0.25 gpm (1 L/min) with a maximum operating pressure of 5000 psi (350 bar). It boasts a quick response time of approximately 2 ms and minimal leakage at typical conditions. Adjustments are made via an internal hex screw, with five clockwise turns required to increase the setting. The valve installation requires specific torque values, ensuring secure placement and functionality. Weighing just 0.30 lb (0.15 kg), this cartridge includes options for Viton seal kits and is an excellent choice for applications demanding reliable pressure control under varying conditions.
