SUN HYDRAULICS
RBACOAV

$82.70 USD

SUN HYDRAULICS
Material:RBACOAV
Model:RBAC-OAV
Summary:Cartridge

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

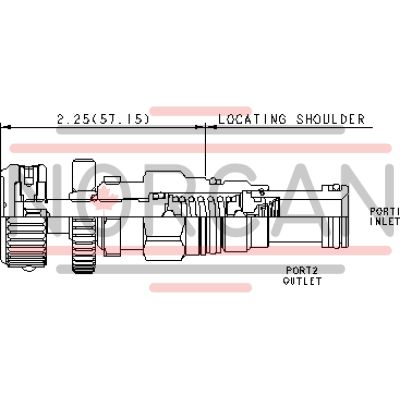

The Sun Hydraulics RBACOAV (RBACOAV) is a direct-acting, pilot relief cartridge designed to remotely control the pressure setting of other pilot-operated valves. This cartridge is optimized for use in systems where pilot flow capacity is sufficient, as it should be paired with higher flow valves for optimal performance. Notably, cartridges with EPDM seals are intended for systems utilizing phosphate ester fluids and should not be exposed to petroleum-based fluids to prevent seal damage. The main stage orifice is shielded by a 150-micron stainless steel screen, ensuring protection and reliability in load-holding applications. This model is particularly suitable for environments that demand corrosion resistance, identifiable by the model code suffix AP or LH, which denote external stainless steel or zinc-nickel plated components, respectively. The RBACOAV features Sun's floating style construction to reduce the risk of internal parts binding due to over-torquing during installation or variations in cavity machining. With a cavity T-10A and Series 1 capacity of 0.25 gpm (1 L/min), this valve can operate at pressures up to 5000 psi (350 bar). It offers a typical response time of 2 milliseconds and a maximum valve leakage rate of 5 drops/min (0.3 cc/min) at 110 SUS (24 cSt). The adjustment mechanism allows for five clockwise turns to increase the setting, with specific hex sizes detailed for both adjustment screw and locknut components. The RBACOAV weighs approximately 0.30 lb (0.15 kg) and comes with an optional Viton seal kit identified as part number 990010006. This product is engineered for precise pressure control in demanding applications, offering robust performance characteristics essential for maintaining system integrity under varying conditions.

Description

Direct-acting, pilot relief cartridges are used to remotely control the pressure setting of other pilot-operated valves. Because capacity is limited to pilot flow, these valves should be used with other higher flow valves.

Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
Main stage orifice is protected by a 150 micron stainless steel screen.
Suitable for use in load holding applications.
Back pressure on the tank port (port 2) is directly additive to the valve setting at a 1:1 ratio.
W and Y controls (where applicable) can be specified with or without a special setting. When no special setting is specified, the valve is adjustable throughout its full range using the W or Y control. When a special setting is specified, this setting represents the maximum setting of the valve.
Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP for external stainless steel components, or /LH for external zinc-nickel plated components. See the CONFIGURATION section for all options. For further details, please see the Materials of Construction page located under TECH RESOURCES.
Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

Cavity	T-10A
Series	1
Capacity	.25 gpm1 L/min.
Maximum Operating Pressure	5000 psi350 bar
Response Time - Typical	2 ms2 ms
Maximum Valve Leakage at 110 SUS (24 cSt)	5 drops/min.0,3 cc/min.
Adjustment - Number of Clockwise Turns to Increase Setting	55
Valve Hex Size	7/8 in.22,2 mm
Valve Installation Torque	30 - 35 lbf ft41 - 47 Nm
Adjustment Screw Internal Hex Size	5/32 in.4 mm
Locknut Hex Size	9/16 in.15 mm
Locknut Torque	80 - 90 lbf in.9 - 10 Nm
Model Weight	.30 lb0,15 kg
Seal kit - Cartridge	Viton: 990-010-006

Show FAQ

Additional Resources

Notes:

For Series 1 cartridges configured with an O control (panel mount handknob), a .75 in. (19 mm) diameter hole is required in the panel.

Direct acting or pilot operated - what do I use?	Direct-acting valves are used to prevent over pressure, and pilot-operated valves are used to regulate pressure. If you are unsure, use a direct-acting valve. Sun's direct acting valves are very fast, dirt tolerant, stable, and robust. Sun's pilot-operated valves are moderately fast, they have a low pressure rise vs. flow curve, and they are easy to adjust.
Where would I use a kick-down relief?	One graphic example is on a portable grain auger for silos. When the farmer gets caught in the auger the kick-down relief trips and allows him to escape.
What are the tolerances on pressure settings for Sun's pressure control valves?	Pressure setting tolerances are listed in our Performance Data page. A link to this page can also be found in the Additional Resources tab of the applicable product page.
How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
Can I use a kick-down relief for my system relief?	Maybe not. We build in a good amount of overlap in the kick-down reliefs to prevent false tripping. This means they are not as fast as our standard pilot-operated reliefs. A direct-acting relief valve set just above the kick-down relief valve would be good insurance.
