SUN HYDRAULICS
RBACOEN

$78.23 USD

SUN HYDRAULICS
Material:RBACOEN
Model:RBAC-OEN
Summary:Cartridge

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

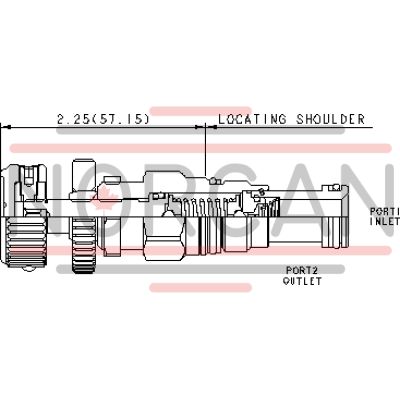

The Sun Hydraulics RBACOEN (Material Number: RBACOEN) is a direct-acting, pilot relief cartridge designed for remote pressure control in hydraulic systems. It is specifically used to control the pressure setting of other pilot-operated valves, with a capacity limited to pilot flow. This makes it ideal for integration with higher flow valves. The cartridge is configured with EPDM seals, suitable for systems utilizing phosphate ester fluids, while exposure to petroleum-based fluids can cause seal damage. The main stage orifice is safeguarded by a 150-micron stainless steel screen, enhancing its durability and reliability. This cartridge is well-suited for load-holding applications and features a back pressure on the tank port that directly adds to the valve setting at a 1:1 ratio. Users can specify W and Y controls with or without special settings; without a special setting, the valve remains adjustable throughout its full range. If specified, the special setting denotes the maximum valve setting. The corrosion-resistant design includes options for external stainless steel components (model code suffix AP) or external zinc-nickel plated components (suffix LH). Sun's floating style construction reduces binding risks due to installation torque or cavity/cartridge machining variations. The RBACOEN operates within a cavity T-10A, Series 1, with a capacity of 0.25 gpm (1 L/min) and can withstand maximum operating pressures of up to 5000 psi (350 bar). Its typical response time is approximately 2 milliseconds, with minimal leakage at specified conditions. The adjustment mechanism allows up to five clockwise turns to increase settings and features specific torque requirements for installation and locknut adjustments. Weighing just 0.30 lb (0.15 kg), this model provides robust performance in various demanding environments.

Description

Direct-acting, pilot relief cartridges are used to remotely control the pressure setting of other pilot-operated valves. Because capacity is limited to pilot flow, these valves should be used with other higher flow valves.

Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
Main stage orifice is protected by a 150 micron stainless steel screen.
Suitable for use in load holding applications.
Back pressure on the tank port (port 2) is directly additive to the valve setting at a 1:1 ratio.
W and Y controls (where applicable) can be specified with or without a special setting. When no special setting is specified, the valve is adjustable throughout its full range using the W or Y control. When a special setting is specified, this setting represents the maximum setting of the valve.
Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP for external stainless steel components, or /LH for external zinc-nickel plated components. See the CONFIGURATION section for all options. For further details, please see the Materials of Construction page located under TECH RESOURCES.
Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

Cavity	T-10A
Series	1
Capacity	.25 gpm1 L/min.
Maximum Operating Pressure	5000 psi350 bar
Response Time - Typical	2 ms2 ms
Maximum Valve Leakage at 110 SUS (24 cSt)	5 drops/min.0,3 cc/min.
Adjustment - Number of Clockwise Turns to Increase Setting	55
Valve Hex Size	7/8 in.22,2 mm
Valve Installation Torque	30 - 35 lbf ft41 - 47 Nm
Adjustment Screw Internal Hex Size	5/32 in.4 mm
Locknut Hex Size	9/16 in.15 mm
Locknut Torque	80 - 90 lbf in.9 - 10 Nm
Model Weight	.30 lb0,15 kg
Seal kit - Cartridge	Viton: 990-010-006

Show FAQ

Additional Resources

Notes:

For Series 1 cartridges configured with an O control (panel mount handknob), a .75 in. (19 mm) diameter hole is required in the panel.

Direct acting or pilot operated - what do I use?	Direct-acting valves are used to prevent over pressure, and pilot-operated valves are used to regulate pressure. If you are unsure, use a direct-acting valve. Sun's direct acting valves are very fast, dirt tolerant, stable, and robust. Sun's pilot-operated valves are moderately fast, they have a low pressure rise vs. flow curve, and they are easy to adjust.
Where would I use a kick-down relief?	One graphic example is on a portable grain auger for silos. When the farmer gets caught in the auger the kick-down relief trips and allows him to escape.
What are the tolerances on pressure settings for Sun's pressure control valves?	Pressure setting tolerances are listed in our Performance Data page. A link to this page can also be found in the Additional Resources tab of the applicable product page.
How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
Can I use a kick-down relief for my system relief?	Maybe not. We build in a good amount of overlap in the kick-down reliefs to prevent false tripping. This means they are not as fast as our standard pilot-operated reliefs. A direct-acting relief valve set just above the kick-down relief valve would be good insurance.
