SUN HYDRAULICS
RBACYCN

$88.16 USD

SUN HYDRAULICS
Material:RBACYCN
Model:RBAC-YCN
Summary:Cartridge

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

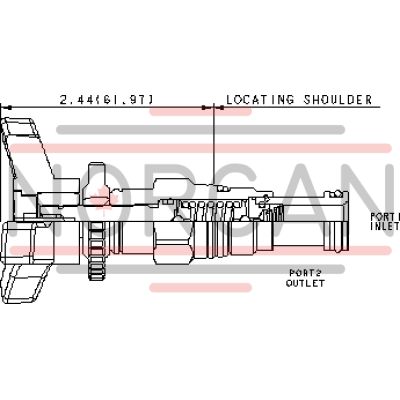

The Sun Hydraulics RBACYCN (Material Number: RBACYCN) is a direct-acting, pilot relief cartridge designed to remotely control the pressure setting of other pilot-operated valves. This valve is specifically engineered for systems with phosphate ester fluids, utilizing EPDM seals that are incompatible with petroleum-based fluids. It features a main stage orifice protected by a 150-micron stainless steel screen and is suitable for load-holding applications. The valve's design allows back pressure on the tank port to directly add to the valve setting at a 1:1 ratio. The RBACYCN model can be adjusted throughout its full range using W and Y controls unless specified otherwise, which would limit the maximum setting. It incorporates corrosion-resistant materials, with options for external stainless steel or zinc-nickel plated components. The cartridge uses Sun's floating style construction to minimize internal binding risks due to excessive torque or machining variations. It fits into a Cavity T-10A Series 1 and has a capacity of 0.25 gpm (1 L/min), withstanding a maximum operating pressure of 5000 psi (350 bar). The typical response time is 2 ms, and it has minimal leakage rates at specified viscosities. Adjustment involves up to five clockwise turns, with specific hex sizes for installation and adjustment screws. The locknut torque is between 80-90 lbf-in (9-10 Nm), ensuring secure settings. This product is ideal in applications requiring fast, stable, and robust pressure control solutions where space or environmental conditions necessitate corrosion resistance. Its compact design and precise adjustability make it suitable for various hydraulic systems demanding reliable performance under high-pressure conditions.

Description

Direct-acting, pilot relief cartridges are used to remotely control the pressure setting of other pilot-operated valves. Because capacity is limited to pilot flow, these valves should be used with other higher flow valves.

Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
Main stage orifice is protected by a 150 micron stainless steel screen.
Suitable for use in load holding applications.
Back pressure on the tank port (port 2) is directly additive to the valve setting at a 1:1 ratio.
W and Y controls (where applicable) can be specified with or without a special setting. When no special setting is specified, the valve is adjustable throughout its full range using the W or Y control. When a special setting is specified, this setting represents the maximum setting of the valve.
Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP for external stainless steel components, or /LH for external zinc-nickel plated components. See the CONFIGURATION section for all options. For further details, please see the Materials of Construction page located under TECH RESOURCES.
Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

Cavity	T-10A
Series	1
Capacity	.25 gpm1 L/min.
Maximum Operating Pressure	5000 psi350 bar
Response Time - Typical	2 ms2 ms
Maximum Valve Leakage at 110 SUS (24 cSt)	5 drops/min.0,3 cc/min.
Adjustment - Number of Clockwise Turns to Increase Setting	55
Valve Hex Size	7/8 in.22,2 mm
Valve Installation Torque	30 - 35 lbf ft41 - 47 Nm
Adjustment Screw Internal Hex Size	5/32 in.4 mm
Locknut Hex Size	9/16 in.15 mm
Locknut Torque	80 - 90 lbf in.9 - 10 Nm
Model Weight	.30 lb0,15 kg
Seal kit - Cartridge	Viton: 990-010-006

Show FAQ

Additional Resources

Notes:

For Series 1 cartridges configured with an O control (panel mount handknob), a .75 in. (19 mm) diameter hole is required in the panel.

Direct acting or pilot operated - what do I use?	Direct-acting valves are used to prevent over pressure, and pilot-operated valves are used to regulate pressure. If you are unsure, use a direct-acting valve. Sun's direct acting valves are very fast, dirt tolerant, stable, and robust. Sun's pilot-operated valves are moderately fast, they have a low pressure rise vs. flow curve, and they are easy to adjust.
Where would I use a kick-down relief?	One graphic example is on a portable grain auger for silos. When the farmer gets caught in the auger the kick-down relief trips and allows him to escape.
What are the tolerances on pressure settings for Sun's pressure control valves?	Pressure setting tolerances are listed in our Performance Data page. A link to this page can also be found in the Additional Resources tab of the applicable product page.
How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
Can I use a kick-down relief for my system relief?	Maybe not. We build in a good amount of overlap in the kick-down reliefs to prevent false tripping. This means they are not as fast as our standard pilot-operated reliefs. A direct-acting relief valve set just above the kick-down relief valve would be good insurance.
