SUN HYDRAULICS
RBADLEN

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

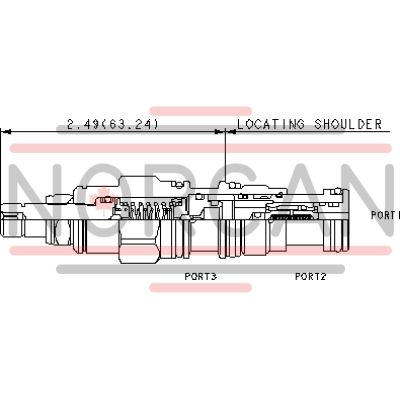

The Sun Hydraulics RBADLEN (RBADLEN) is a direct-acting, pilot relief cartridge designed with back-to-back check valves, allowing it to remotely control two other pilot-operated valves or act as a thermal relief for both ends of an actuator. This feature is particularly useful in load-holding applications where preventing overpressure due to thermal expansion of the fluid is critical. The valve's capacity is limited to pilot flow, making it suitable for use with other valves that have comparable pilot flows. The integrated back-to-back check valves effectively prevent cross talk between the two remote-controlled valves. A single adjustment controls both valves, and the check cracking pressure is set at 15 psi (1 bar). Additionally, pressure at port 3 directly adds to the valve setting, enhancing its functionality in various hydraulic systems. The RBADLEN model incorporates Sun's floating style construction, which minimizes the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. It features a cavity T-11A Series 1 with a capacity of 0.25 gpm (1 L/min) and a typical response time of 2 ms. The maximum valve leakage at 110 SUS (24 cSt) is limited to 5 drops/min (0.3 cc/min). Adjustment for increasing settings requires five clockwise turns; the valve hex size measures 7/8 in. (22.2 mm), and installation torque ranges from 30 to 35 lbf ft (41 to 47 Nm). The adjustment screw has an internal hex size of 5/32 in. (4 mm), while the locknut hex size is 9/16 in. (15 mm) with a torque specification of 80 to 90 lbf in (9 to 10 Nm). The cartridge uses Viton seals with seal kit number: 990011006 for maintenance and replacement purposes.
