SUN HYDRAULICS
RBAELCV

$76.94 USD

SUN HYDRAULICS
Material:RBAELCV
Model:RBAE-LCV
Summary:Cartridge

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics RBAELCV (RBAELCV) is a two-port, pilot-stage, direct-acting relief cartridge designed for precise pressure regulation. This normally closed pressure regulating valve opens a flow path from port 1 to port 2 when the inlet pressure at port 1 surpasses the spring force setting. It utilizes the Sun T8A two-port cavity, which allows it to work seamlessly with Sun's main stage pilot or vent-to-operate cartridges, eliminating the need for separate pilot lines and requiring only one cavity for both control and primary functions. The valve can handle pressures up to 5000 psi (350 bar) at ports 1 and 2, and features hardened poppet and seat components for consistent operation, low leakage rates, and superior wear resistance. The RBAELCV incorporates floating style construction to reduce the risk of internal part binding due to excessive installation torque or machining variations. It is compatible with systems using phosphate ester fluids when equipped with EPDM seals, although exposure to petroleum-based fluids will damage these seals. The valve has a capacity of 2.5 gpm (10 L/min) and a typical response time of 2 ms. Installation requires specific torque settings: the main stage valve should be torqued correctly before installing the T8A pilot control section. Additional specifications include a maximum valve leakage rate of 15 drops/min (1 cc/min), a valve hex size of 7/8 in. (22.2 mm), an installation torque range of 20-25 lbf ft (27-33 Nm), an internal hex size adjustment screw of 5/32 in. (4 mm), and a locknut torque range of 80-90 lbf in. (9-10 Nm).

Description

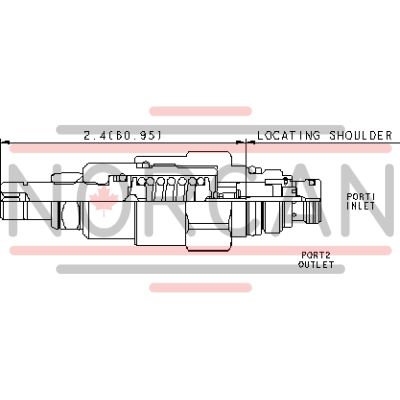

Two-port, pilot-stage, direct-acting relief cartridges are fully adjustable, normally closed pressure regulating valves. When the pressure at port 1 (inlet) is sufficient to overcome the spring force (valve setting), a flow path is opened from port 1 to port 2 (tank).

Utilizes the Sun T-8A 2-port cavity making it the ideal choice to use in conjunction with Sun's main stage pilot or vent-to-operate cartridges. Separate pilot lines are eliminated and only one cavity needs to be machined to accommodate both the control and primary function. Note: All 2-position, 2-way pilot stage control cartridges utilize the same cavity and are physically interchangeable. Functionality is the only consideration.
Note: The main stage valve should first be installed to the correct torque value followed by the T-8A pilot control section into the main stage valve to its required torque value.
Ports 1 and 2 may be pressured to 5000 psi (350 bar).
Hardened poppet and seat provide consistent operation, low leakage rates and superior wear characteristics.
Backpressure at port 2 (outlet) is directly additive to the pressure setting at port 1 (inlet).
Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

Cavity	T-8A
Series	P
Capacity	2.5 gpm10 L/min.
Factory Pressure Settings Established at	2 in³/min.30 cc/min.
Maximum Operating Pressure	5000 psi350 bar
Response Time - Typical	2 ms2 ms
Maximum Valve Leakage at 110 SUS (24 cSt)	15 drops/min.1 cc/min.
Valve Hex Size	7/8 in.22,2 mm
Valve Installation Torque	20 - 25 lbf ft27 - 33 Nm
Adjustment Screw Internal Hex Size	5/32 in.4 mm
Locknut Hex Size	9/16 in.15 mm
Locknut Torque	80 - 90 lbf in.9 - 10 Nm
Seal kit - Cartridge	Viton: 990-608-006

Show FAQ

Additional Resources

Notes:

For Series 1 cartridges configured with an O control (panel mount handknob), a .75 in. (19 mm) diameter hole is required in the panel.

Direct acting or pilot operated - what do I use?	Direct-acting valves are used to prevent over pressure, and pilot-operated valves are used to regulate pressure. If you are unsure, use a direct-acting valve. Sun's direct acting valves are very fast, dirt tolerant, stable, and robust. Sun's pilot-operated valves are moderately fast, they have a low pressure rise vs. flow curve, and they are easy to adjust.
Where would I use a kick-down relief?	One graphic example is on a portable grain auger for silos. When the farmer gets caught in the auger the kick-down relief trips and allows him to escape.
What are the tolerances on pressure settings for Sun's pressure control valves?	Pressure setting tolerances are listed in our Performance Data page. A link to this page can also be found in the Additional Resources tab of the applicable product page.
How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
Can I use a kick-down relief for my system relief?	Maybe not. We build in a good amount of overlap in the kick-down reliefs to prevent false tripping. This means they are not as fast as our standard pilot-operated reliefs. A direct-acting relief valve set just above the kick-down relief valve would be good insurance.
