SUN HYDRAULICS
RBAELWV

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

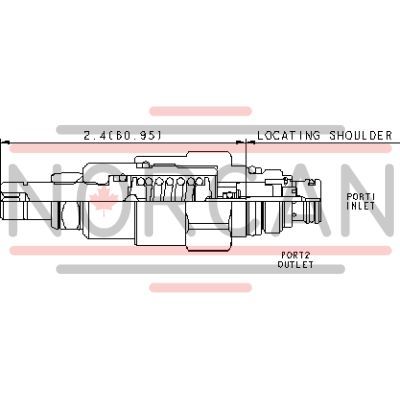

The Sun Hydraulics RBAELWV (RBAELWV) is a two-port, pilot-stage, direct-acting relief cartridge designed as a fully adjustable, normally closed pressure regulating valve. This component is engineered to open a flow path from port 1 inlet to port 2 tank when the inlet pressure surpasses the spring force valve setting. It utilizes the Sun T8A two-port cavity, making it an ideal choice for integration with Sun's main stage pilot or vent-to-operate cartridges, eliminating the need for separate pilot lines and requiring only one cavity for both control and primary functions. Notably, all two-position, two-way pilot stage control cartridges share the same cavity and are interchangeable based on functionality. The installation process requires that the main stage valve is torqued correctly before installing the T8A pilot control section into it at its specified torque value. Both ports 1 and 2 can handle pressures up to 5000 psi (350 bar), with hardened poppet and seat ensuring consistent operation, low leakage rates, and enhanced wear characteristics. The backpressure at port 2 outlet adds directly to the pressure setting at port 1 inlet. Cartridges with EPDM seals are suitable for systems using phosphate ester fluids but must avoid petroleum-based fluids to prevent seal damage. This relief cartridge incorporates Sun's floating style construction to minimize internal part binding due to excessive installation torque or machining variations of cavity/cartridge. It has a capacity of 2.5 gpm (10 L/min) and typical response time of 2 ms with maximum valve leakage at 15 drops/min (1 cc/min). The valve hex size measures 7/8 in. (22.2 mm), with an installation torque specification of 20\u201325 lbf ft (27\u201333 Nm). The adjustment screw has an internal hex size of 5/32 in. (4 mm) while the locknut hex size is 9/16 in. (15 mm), requiring a torque of 80\u201390 lbf in. (9\u201310 Nm).
