SUN HYDRAULICS
RBAEYAV

$98.78 USD

SUN HYDRAULICS
Material:RBAEYAV
Model:RBAE-YAV
Summary:Cartridge

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics RBAEYAV (RBAEYAV) is a two-port, pilot-stage, direct-acting relief cartridge designed for pressure regulation. It is fully adjustable and normally closed, opening a flow path from port 1 to port 2 when the pressure at the inlet exceeds the spring force setting. This cartridge utilizes the Sun T8A two-port cavity, making it compatible with Sun's main stage pilot or vent-to-operate cartridges, eliminating the need for separate pilot lines and requiring only one machined cavity for both control and primary functions. The valve can handle pressures up to 5000 psi (350 bar) at both ports. It features hardened poppet and seat components for consistent operation, low leakage rates, and superior wear resistance. Additionally, backpressure at port 2 is directly additive to the pressure setting at port 1. Cartridges with EPDM seals are intended for systems with phosphate ester fluids; exposure to petroleum-based fluids will damage these seals. The floating style construction minimizes internal binding due to installation torque or machining variations. The valve has a capacity of 2.5 gpm (10 L/min) with factory pressure settings established at 2 in\u00b3/min (30 cc/min). It offers a typical response time of 2 ms and maximum valve leakage of 15 drops/min (1 cc/min) at 110 SUS (24 cSt). Installation requires specific torque values: valve installation torque is between 20 - 25 lbf ft (27 - 33 Nm), adjustment screw internal hex size is ^5\u204432 in (4 mm), locknut hex size is ^9\u204416 in (15 mm), and locknut torque ranges from 80 - 90 lbf in (9 - 10 Nm). The Viton seal kit part number is 990608006.

Description

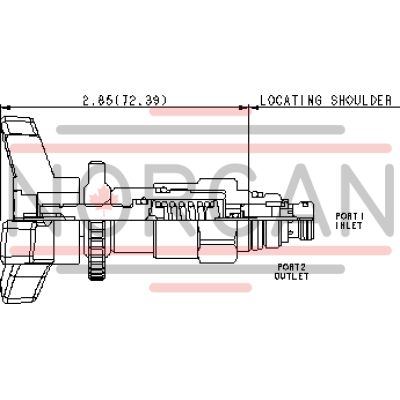

Two-port, pilot-stage, direct-acting relief cartridges are fully adjustable, normally closed pressure regulating valves. When the pressure at port 1 (inlet) is sufficient to overcome the spring force (valve setting), a flow path is opened from port 1 to port 2 (tank).

Utilizes the Sun T-8A 2-port cavity making it the ideal choice to use in conjunction with Sun's main stage pilot or vent-to-operate cartridges. Separate pilot lines are eliminated and only one cavity needs to be machined to accommodate both the control and primary function. Note: All 2-position, 2-way pilot stage control cartridges utilize the same cavity and are physically interchangeable. Functionality is the only consideration.
Note: The main stage valve should first be installed to the correct torque value followed by the T-8A pilot control section into the main stage valve to its required torque value.
Ports 1 and 2 may be pressured to 5000 psi (350 bar).
Hardened poppet and seat provide consistent operation, low leakage rates and superior wear characteristics.
Backpressure at port 2 (outlet) is directly additive to the pressure setting at port 1 (inlet).
Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

Cavity	T-8A
Series	P
Capacity	2.5 gpm10 L/min.
Factory Pressure Settings Established at	2 in³/min.30 cc/min.
Maximum Operating Pressure	5000 psi350 bar
Response Time - Typical	2 ms2 ms
Maximum Valve Leakage at 110 SUS (24 cSt)	15 drops/min.1 cc/min.
Valve Hex Size	7/8 in.22,2 mm
Valve Installation Torque	20 - 25 lbf ft27 - 33 Nm
Adjustment Screw Internal Hex Size	5/32 in.4 mm
Locknut Hex Size	9/16 in.15 mm
Locknut Torque	80 - 90 lbf in.9 - 10 Nm
Seal kit - Cartridge	Viton: 990-608-006

Show FAQ

Additional Resources

Notes:

For Series 1 cartridges configured with an O control (panel mount handknob), a .75 in. (19 mm) diameter hole is required in the panel.

Direct acting or pilot operated - what do I use?	Direct-acting valves are used to prevent over pressure, and pilot-operated valves are used to regulate pressure. If you are unsure, use a direct-acting valve. Sun's direct acting valves are very fast, dirt tolerant, stable, and robust. Sun's pilot-operated valves are moderately fast, they have a low pressure rise vs. flow curve, and they are easy to adjust.
Where would I use a kick-down relief?	One graphic example is on a portable grain auger for silos. When the farmer gets caught in the auger the kick-down relief trips and allows him to escape.
What are the tolerances on pressure settings for Sun's pressure control valves?	Pressure setting tolerances are listed in our Performance Data page. A link to this page can also be found in the Additional Resources tab of the applicable product page.
How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
Can I use a kick-down relief for my system relief?	Maybe not. We build in a good amount of overlap in the kick-down reliefs to prevent false tripping. This means they are not as fast as our standard pilot-operated reliefs. A direct-acting relief valve set just above the kick-down relief valve would be good insurance.
