SUN HYDRAULICS
RBANXBN

$194.99 USD

SUN HYDRAULICS
Material:RBANXBN
Model:RBAN-XBN
Summary:Cartridge

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

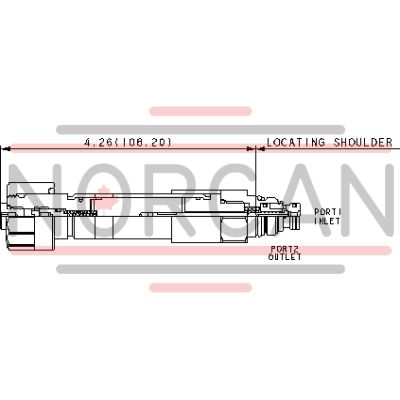

The Sun Hydraulics RBANXBN (RBANXBN) is a 2-port, pilot-stage, direct-acting relief cartridge valve designed for electroproportional pressure regulation. This normally closed valve is spring-biased to its highest customer-specified setting, allowing for precise control of pressure by varying the current to the coil. When the inlet pressure at port 1 surpasses the combined force of the spring and solenoid, as dictated by an analog input signal, the poppet lifts to permit flow from port 1 to port 2. The RBANXBN utilizes a T8A cavity configuration, making it compatible with Sun's main stage pressure control elements and eliminating the need for separate pilot lines. It features high pilot capacity for controlling larger main stage elements and offers stable operation across diverse conditions due to its damped construction. The valve is engineered for low leakage in its closed position with reseat occurring at 85% of cracking pressure. The interchangeable coils can be mounted in either direction on the solenoid tube, and optimal performance is achieved using an amplifier with adjustable dither between 100-250 Hz. Installation requires specific torque values for both the main stage and T8A pilot control sections, utilizing Sun\u2019s floating style construction to prevent internal binding from excessive torque or machining variations. With a capacity of 0.25 gpm (1 L/min) and maximum operating pressure of 5000 psi (350 bar), this valve is suitable for applications requiring precise pressure regulation without field adjustability of relief settings. The RBANXBN offers robust performance in demanding hydraulic systems where electroproportional control is essential.

Description

This 2-port, pilot-stage, direct-acting relief cartridge is an electro-proportionally controlled, normally-closed pressure regulating valve. The valve is spring biased closed to its highest setting (customer specified). Increasing current to the coil will proportionally decrease the pressure setting. When the pressure at port 1 (inlet) is sufficient to overcome the spring force minus the solenoid force, as determined by the analog input signal, the poppet lifts and allows flow from port 1 to port 2 (outlet). This pilot control cartridge utilizes the T-8A cavity so it can be used in conjunction with Sun's main stage, pressure control elements.

Customer must specify a relief setting that falls within the selected pressure range. This setting represents the maximum relief pressure which the valve will default to with no command. As the command increases, the relief setting will decrease. See performance curves for selected pressure range. This setting is not adjustable in the field.
Varying the analog input signal to the proportional solenoid provides a step-less control of pressure.
This electro-proportional cartridge utilizes the Sun T-8A, 2-port cavity making it the ideal choice to use in conjunction with Sun's main stage cartridges. Separate pilot lines are eliminated and only one cavity needs to be machined to accommodate both the control and primary function. Note: All 2-port pilot stage control cartridges utilize the same cavity and are physically interchangeable. Functionality is the only consideration.
High pilot capacity allows for operation of larger size main stage elements.
Damped construction provides stable operation over a wide range of operating conditions.
Low leakage levels in the closed position. (Reseat occurs at 85% of cracking pressure.)
Coils are interchangeable with Sun's other full flow, solenoid operated valves and can be mounted on the tube in either direction.
For optimum performance, an amplifier with current sensing and adjustable dither should be used. Dither should be adjustable between 100 - 250 Hz.
Note: The main stage valve should first be installed to the correct torque value followed by the T-8A pilot control section into the main stage valve to its required torque value.
Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

Cavity	T-8A
Series	P
Capacity	.25 gpm1 L/min.
Maximum Operating Pressure	5000 psi350 bar
Maximum Valve Leakage at Reseat	1.5 in³/min.25 cc/min.
Reseat	>85% of setting>85% of setting
Solenoid Tube Diameter	.75 in.19 mm
Valve Hex Size	7/8 in.22,2 mm
Valve Installation Torque	20 - 25 lbf ft27 - 33 Nm
Model Weight (with coil)	1.00 lb0,45 kg
Seal kit - Cartridge	Viton: 990-208-006
Seal and nut kit - Coil	Viton: 990-770-006Viton: 990-770-006

Show FAQ

Direct acting or pilot operated - what do I use?	Direct-acting valves are used to prevent over pressure, and pilot-operated valves are used to regulate pressure. If you are unsure, use a direct-acting valve. Sun's direct acting valves are very fast, dirt tolerant, stable, and robust. Sun's pilot-operated valves are moderately fast, they have a low pressure rise vs. flow curve, and they are easy to adjust.
How do I get a kick-down relief to reset?	The kick-down relief acts much like a circuit breaker. When the pressure at the inlet (port 1) of the relief valve rises to the setting, the valve pops open and drops the pressure down to 100 psi or so. The valve stays open until flow through it stops. Shutting off the supply of oil will reset the valve; reversing pressure on the valve is a positive way of resetting it.
Where would I use a kick-down relief?	One graphic example is on a portable grain auger for silos. When the farmer gets caught in the auger the kick-down relief trips and allows him to escape.
How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
What are the tolerances on pressure settings for Sun's pressure control valves?	Pressure setting tolerances are listed in our Performance Data page. A link to this page can also be found in the Additional Resources tab of the applicable product page.
Can I use a kick-down relief for my system relief?	Maybe not. We build in a good amount of overlap in the kick-down reliefs to prevent false tripping. This means they are not as fast as our standard pilot-operated reliefs. A direct-acting relief valve set just above the kick-down relief valve would be good insurance.
