SUN HYDRAULICS
RBAPMWV2C12V

$502.85 USD

SUN HYDRAULICS
Material:RBAPMWV2C12V
Model:RBAP-MWV@2C12V
Summary:Cartridge

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics RBAPMWV2C12V (RBAPMWV2C12V) is a versatile 2-port, pilot-stage, direct-acting relief cartridge valve that offers electroproportional control for precise pressure regulation. This valve allows for seamless, infinite adjustability within a chosen pressure range, making it ideal for applications requiring precise pressure management. It operates by lifting the poppet to allow flow from port 1 to port 2 when the inlet pressure overcomes the solenoid forces, which are determined by an analog input signal. The use of the T8A cavity enables this pilot control cartridge to be effectively integrated with Sun's main stage pressure control elements, eliminating separate pilot lines and simplifying installation with a single cavity requirement. The RBAPMWV2C12V features low leakage levels in its closed position and is capable of handling pressures up to 5000 psi. It incorporates damped construction for stable operation across various conditions and utilizes interchangeable coils compatible with other Sun solenoid-operated valves. For manual adjustments or in case of electrical failure, the L control Manual Override feature allows for mechanical adjustment of the valve settings. The momentary-twist override option provides a manual shift capability by twisting the override clockwise. This cartridge is designed with EPDM seals for compatibility with phosphate ester fluids while maintaining robust performance against petroleum-based fluids and lubricants. Optimal performance can be achieved using an amplifier with current sensing and adjustable dither between 100\u2013250 Hz. With its high pilot capacity, this valve can operate larger main stage elements efficiently. Installation requires proper torque application to both the main stage valve and T8A pilot control section to ensure reliable functionality without internal part binding due to excessive torque or machining variations.

Description

This 2-port, pilot-stage, direct-acting relief cartridge is an electro-proportionally controlled, pressure regulating valve. The proportional control allows for infinite, step-less adjustability within the selected pressure range. When the pressure at port 1 (inlet) is sufficient to overcome the solenoid forces, as determined by the analog input signal, the poppet lifts and allows flow from port 1 to port 2 (outlet). This pilot control cartridge utilizes the T-8A cavity so it can be used in conjunction with Sun's main stage, pressure control elements.

Varying the analog input signal to the proportional solenoid provides a step-less control of pressure.
This electro-proportional cartridge utilizes the Sun T-8A, 2-port cavity making it the ideal choice to use in conjunction with Sun's main stage cartridges. Separate pilot lines are eliminated and only one cavity needs to be machined to accommodate both the control and primary function. Note: All 2-port pilot stage control cartridges utilize the same cavity and are physically interchangeable. Functionality is the only consideration.
All pressure ranges will drop to a setting of 0 with no analog input signal. The pressure ranges indicate the valve's area of acceptable performance.
The L control (Manual Override - Adjustable) allows one to manually adjust the valve in case of an electrical failure. The L control also allows one to offset the pressure range. For instance, if an A range valve is mechanically offset to a setting of 1500 psi (105 bar), the new maximum will be 4500 psi (310 bar).
The 'E' manual control assembly has a mechanical life expectancy of approximately 7,000 cycles.
Damped construction provides stable operation over a wide range of operating conditions. Note: Models equipped with an 'M' control do not incorporate the dampening orifice in the solenoid armature.
The momentary/twist override option "E" allows the operator to shift the valve by twisting the manual override clockwise 90 degrees.
Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
Capable of operating with pressures up to 5000 psi.
Low leakage levels in the closed position. (Reseat occurs at 85% of cracking pressure.)
Coils are interchangeable with Sun's other full flow, solenoid operated valves and can be mounted on the tube in either direction.
For optimum performance, an amplifier with current sensing and adjustable dither should be used. Dither should be adjustable between 100 - 250 Hz.
NOTE: There is no upper limit to the pressure setting when using the M control. The more force you exert on the manual override, the higher the resulting pressure.
High pilot capacity allows for operation of larger size main stage elements.
Note: The main stage valve should first be installed to the correct torque value followed by the T-8A pilot control section into the main stage valve to its required torque value.
Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

Cavity	T-8A
Series	P
Capacity	.25 gpm1 L/min.
Maximum Operating Pressure	5000 psi350 bar
Maximum Valve Leakage at Reseat	1.5 in³/min.25 cc/min.
Manual Override Force Requirement	10 lbs/1000 psi @ Port 166 N/100 bar @ Port 1
Reseat	>85% of setting>85% of setting
Solenoid Tube Diameter	.75 in.19 mm
Valve Hex Size	7/8 in.22,2 mm
Valve Installation Torque	20 - 25 lbf ft27 - 33 Nm
Model Weight (with coil)	1.00 lb0,45 kg
Seal kit - Cartridge	Viton: 990-208-006
Seal and nut kit - Coil	Viton: 990-770-006Viton: 990-770-006

Show FAQ

Additional Resources

Notes:

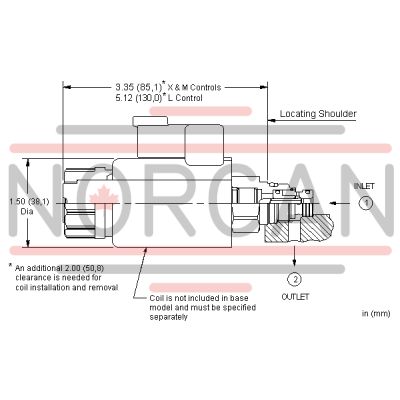

Please verify cartridge clearance requirements when choosing a Sun manifold. Different valve controls and coils require different clearances.

Direct acting or pilot operated - what do I use?	Direct-acting valves are used to prevent over pressure, and pilot-operated valves are used to regulate pressure. If you are unsure, use a direct-acting valve. Sun's direct acting valves are very fast, dirt tolerant, stable, and robust. Sun's pilot-operated valves are moderately fast, they have a low pressure rise vs. flow curve, and they are easy to adjust.
How do I get a kick-down relief to reset?	The kick-down relief acts much like a circuit breaker. When the pressure at the inlet (port 1) of the relief valve rises to the setting, the valve pops open and drops the pressure down to 100 psi or so. The valve stays open until flow through it stops. Shutting off the supply of oil will reset the valve; reversing pressure on the valve is a positive way of resetting it.
Where would I use a kick-down relief?	One graphic example is on a portable grain auger for silos. When the farmer gets caught in the auger the kick-down relief trips and allows him to escape.
How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
What are the tolerances on pressure settings for Sun's pressure control valves?	Pressure setting tolerances are listed in our Performance Data page. A link to this page can also be found in the Additional Resources tab of the applicable product page.
Can I use a kick-down relief for my system relief?	Maybe not. We build in a good amount of overlap in the kick-down reliefs to prevent false tripping. This means they are not as fast as our standard pilot-operated reliefs. A direct-acting relief valve set just above the kick-down relief valve would be good insurance.
