SUN HYDRAULICS
RBAPXBE4A12A

$1,055.84 USD

SUN HYDRAULICS
Material:RBAPXBE4A12A
Model:RBAP-XBE@4A12A
Summary:Cartridge

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics RBAPXBE4A12A (Material Number: RBAPXBE4A12A) is a 2-port, pilot-stage, direct-acting relief cartridge valve that offers electroproportional pressure regulation. This precision-engineered valve allows for infinite and stepless adjustability within its designated pressure range, ensuring optimal control over hydraulic systems. Designed to fit the T8A cavity, it seamlessly integrates with Sun's main stage pressure control elements, eliminating the need for separate pilot lines and reducing installation complexity. The valve's operation is governed by varying the analog input signal to the proportional solenoid, providing users with precise control over system pressure. With a maximum operating pressure of 5000 psi and low leakage levels in the closed position, this relief cartridge is suitable for high-demand applications. It features a manual override option that allows for mechanical adjustment in case of electrical failure, ensuring reliability under diverse conditions. The momentary-twist override option enables quick manual intervention by twisting the manual override clockwise 90 degrees. Its damped construction guarantees stable performance across various operating conditions while maintaining low leakage at reseat pressures of 85% of cracking pressure. The valve's design incorporates Sun\u2019s floating style construction to minimize binding risks due to excessive torque or machining variations. Additionally, this model supports interchangeable coils with other Sun full-flow solenoid-operated valves and can be mounted in either direction on the tube. For enhanced performance, it is recommended to use an amplifier with current sensing and adjustable dither between 100-250 Hz. Furthermore, cartridges configured with EPDM seals are intended for use with phosphate ester fluids only; exposure to petroleum-based fluids may damage these seals. The RBAPXBE4A12A model weighs approximately 1 lb (0.45 kg) with coil and requires a valve installation torque between 20-25 lbf ft (27-33 Nm).

Description

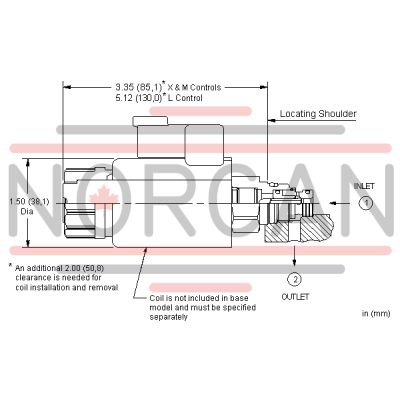

This 2-port, pilot-stage, direct-acting relief cartridge is an electro-proportionally controlled, pressure regulating valve. The proportional control allows for infinite, step-less adjustability within the selected pressure range. When the pressure at port 1 (inlet) is sufficient to overcome the solenoid forces, as determined by the analog input signal, the poppet lifts and allows flow from port 1 to port 2 (outlet). This pilot control cartridge utilizes the T-8A cavity so it can be used in conjunction with Sun's main stage, pressure control elements.

Varying the analog input signal to the proportional solenoid provides a step-less control of pressure.
This electro-proportional cartridge utilizes the Sun T-8A, 2-port cavity making it the ideal choice to use in conjunction with Sun's main stage cartridges. Separate pilot lines are eliminated and only one cavity needs to be machined to accommodate both the control and primary function. Note: All 2-port pilot stage control cartridges utilize the same cavity and are physically interchangeable. Functionality is the only consideration.
All pressure ranges will drop to a setting of 0 with no analog input signal. The pressure ranges indicate the valve's area of acceptable performance.
The L control (Manual Override - Adjustable) allows one to manually adjust the valve in case of an electrical failure. The L control also allows one to offset the pressure range. For instance, if an A range valve is mechanically offset to a setting of 1500 psi (105 bar), the new maximum will be 4500 psi (310 bar).
The 'E' manual control assembly has a mechanical life expectancy of approximately 7,000 cycles.
Damped construction provides stable operation over a wide range of operating conditions. Note: Models equipped with an 'M' control do not incorporate the dampening orifice in the solenoid armature.
The momentary/twist override option "E" allows the operator to shift the valve by twisting the manual override clockwise 90 degrees.
Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
Capable of operating with pressures up to 5000 psi.
Low leakage levels in the closed position. (Reseat occurs at 85% of cracking pressure.)
Coils are interchangeable with Sun's other full flow, solenoid operated valves and can be mounted on the tube in either direction.
For optimum performance, an amplifier with current sensing and adjustable dither should be used. Dither should be adjustable between 100 - 250 Hz.
NOTE: There is no upper limit to the pressure setting when using the M control. The more force you exert on the manual override, the higher the resulting pressure.
High pilot capacity allows for operation of larger size main stage elements.
Note: The main stage valve should first be installed to the correct torque value followed by the T-8A pilot control section into the main stage valve to its required torque value.
Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

Cavity	T-8A
Series	P
Capacity	.25 gpm1 L/min.
Maximum Operating Pressure	5000 psi350 bar
Maximum Valve Leakage at Reseat	1.5 in³/min.25 cc/min.
Manual Override Force Requirement	10 lbs/1000 psi @ Port 166 N/100 bar @ Port 1
Reseat	>85% of setting>85% of setting
Solenoid Tube Diameter	.75 in.19 mm
Valve Hex Size	7/8 in.22,2 mm
Valve Installation Torque	20 - 25 lbf ft27 - 33 Nm
Model Weight (with coil)	1.00 lb0,45 kg
Seal kit - Cartridge	Viton: 990-208-006
Seal and nut kit - Coil	Viton: 990-770-006Viton: 990-770-006

Show FAQ

Additional Resources

Notes:

Please verify cartridge clearance requirements when choosing a Sun manifold. Different valve controls and coils require different clearances.

How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
What are the tolerances on pressure settings for Sun's pressure control valves?	Pressure setting tolerances are listed in our Performance Data page. A link to this page can also be found in the Additional Resources tab of the applicable product page.
Can I use a kick-down relief for my system relief?	Maybe not. We build in a good amount of overlap in the kick-down reliefs to prevent false tripping. This means they are not as fast as our standard pilot-operated reliefs. A direct-acting relief valve set just above the kick-down relief valve would be good insurance.
Direct acting or pilot operated - what do I use?	Direct-acting valves are used to prevent over pressure, and pilot-operated valves are used to regulate pressure. If you are unsure, use a direct-acting valve. Sun's direct acting valves are very fast, dirt tolerant, stable, and robust. Sun's pilot-operated valves are moderately fast, they have a low pressure rise vs. flow curve, and they are easy to adjust.
How do I get a kick-down relief to reset?	The kick-down relief acts much like a circuit breaker. When the pressure at the inlet (port 1) of the relief valve rises to the setting, the valve pops open and drops the pressure down to 100 psi or so. The valve stays open until flow through it stops. Shutting off the supply of oil will reset the valve; reversing pressure on the valve is a positive way of resetting it.
Where would I use a kick-down relief?	One graphic example is on a portable grain auger for silos. When the farmer gets caught in the auger the kick-down relief trips and allows him to escape.
