SUN HYDRAULICS
RBARBWN

$142.47 USD

SUN HYDRAULICS
Material:RBARBWN
Model:RBAR-BWN
Summary:Cartridge

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

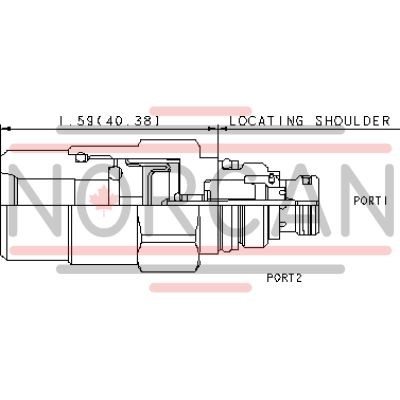

The Sun Hydraulics RBARBWN (RBARBWN) is a two-port, pilot-stage, air-controlled, direct-acting relief cartridge designed for specific pressure regulating applications. This valve is normally closed and opens a flow path from port 1 to port 2 when the inlet pressure at port 1 overcomes the air signal force. It is ideal for pilot flow applications and fits into Sun's T8A cavity, facilitating integration with Sun's pilot-operated main stage valves. The RBARBWN eliminates the need for separate pilot lines by using one cavity for both control and primary functions. Ports can handle pressures up to 5000 psi (350 bar), while the valve itself can manage a maximum operating pressure of 5000 psi (350 bar) and a maximum pilot control port pressure of 200 psi (14 bar). The valve supports two oil-to-air pilot ratios: 50:1 and 75:1, with the choice affecting functionality based on application needs. The design incorporates hardened poppet and seat components to ensure consistent operation, low leakage rates, and superior wear characteristics. Additionally, it features Sun's floating style construction to minimize internal binding risks due to installation torque or machining variations. The RBARBWN has a capacity of 2.5 gpm (10 L/min) with maximum leakage at designated oil viscosity being minimal at 15 drops/minute (1 cc/min). Installation torque ranges between 20 - 25 lbf ft (27 - 33 Nm), ensuring secure placement in systems. This cartridge is suitable for applications requiring efficient pressure regulation without compromising system integrity or performance consistency.

Description

Two-port, pilot-stage, air-controlled, direct-acting relief cartridges are normally closed pressure regulating valves. When the pressure at port 1 (inlet) is sufficient to overcome the force due to the air signal, a flow path is opened from port 1 to port 2 (tank). These cartridges are designed for pilot flow applications and utilize Sun's T-8A cavity so they can be used in conjunction with Sun's pilot-operated, main-stage valves.

Utilizes the Sun T-8A 2-port cavity making it the ideal choice to use in conjunction with Sun's main stage pilot or vent-to-operate cartridges. Separate pilot lines are eliminated and only one cavity needs to be machined to accommodate both the control and primary function. Note: All 2-position, 2-way pilot stage control cartridges utilize the same cavity and are physically interchangeable. Functionality is the only consideration.
Note: The main stage valve should first be installed to the correct torque value followed by the T-8A pilot control section into the main stage valve to its required torque value.
Different pilot control port options are available. See Option Selection for details.
Ports 1 and 2 may be pressured to 5000 psi (350 bar).
Hardened poppet and seat provide consistent operation, low leakage rates and superior wear characteristics.
Two different oil-to-air pilot ratios are available; 50:1 and 75:1. See Option Selection.
Maximum pilot control port pressure is 200 psi (14 bar).
Backpressure at port 2 increases the relief setting by a .43 multiplier.
Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

Cavity	T-8A
Series	P
Capacity	2.5 gpm10 L/min.
Maximum Operating Pressure	5000 psi350 bar
Maximum Valve Leakage at 110 SUS (24 cSt)	15 drops/min.1 cc/min.
Maximum Pilot Pressure	150 psi10,5 bar
Pilot Control Port	See Control OptionsSee Control Options
Valve Installation Torque	20 - 25 lbf ft27 - 33 Nm
Seal kit - Cartridge	Viton: 990-608-006

Show FAQ

What are the tolerances on pressure settings for Sun's pressure control valves?	Pressure setting tolerances are listed in our Performance Data page. A link to this page can also be found in the Additional Resources tab of the applicable product page.
How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
Can I use a kick-down relief for my system relief?	Maybe not. We build in a good amount of overlap in the kick-down reliefs to prevent false tripping. This means they are not as fast as our standard pilot-operated reliefs. A direct-acting relief valve set just above the kick-down relief valve would be good insurance.
Direct acting or pilot operated - what do I use?	Direct-acting valves are used to prevent over pressure, and pilot-operated valves are used to regulate pressure. If you are unsure, use a direct-acting valve. Sun's direct acting valves are very fast, dirt tolerant, stable, and robust. Sun's pilot-operated valves are moderately fast, they have a low pressure rise vs. flow curve, and they are easy to adjust.
Where would I use a kick-down relief?	One graphic example is on a portable grain auger for silos. When the farmer gets caught in the auger the kick-down relief trips and allows him to escape.
