Sun Hydraulics-RDDA3CV-RDDA3CV

SUN HYDRAULICS
RDDA3CV


$68.30 USD
  • SUN HYDRAULICS
  • Material:RDDA3CV
  • Model:RDDA-3CV
  • Summary:Cartridge

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

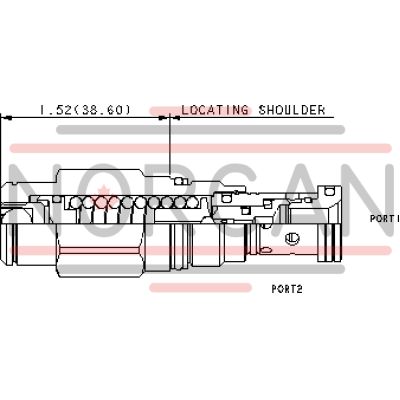

The Sun Hydraulics RDDA3CV (Material Number: RDDA3CV) is a nonadjustable direct-acting relief cartridge designed to protect hydraulic components from pressure transients. This normally closed, pressure-limiting valve opens to the tank port when the inlet port pressure reaches the set threshold, thereby throttling flow and limiting pressure rise. Known for its smooth operation, zero leakage, dirt tolerance, and immunity to silting, this valve offers rapid response times. Customers are required to specify their desired settings as these valves are factory set and tamper-proof. The RDDA3CV is suitable for use in cross-port relief circuits and load-holding applications due to its ability to handle maximum pressure at port 2. It remains relatively insensitive to variations in oil temperature and contamination, ensuring consistent performance. The valve's back pressure on the tank port is directly additive to the valve setting at a 1:1 ratio. This model features a Sun floating style construction that reduces internal part binding risks due to excessive installation torque or machining variations. With a cavity size of T-10A Series 1 and a capacity of 25 gpm (95 L/min), it operates at a maximum pressure of 5000 psi (350 bar). Its typical response time is around 2 ms with maximum valve leakage at reseat being 10 drops/min (0.7 cc/min). The valve reseats at 90% of its setting and has an installation torque range of 30 \u2013 35 lbf ft (41 \u2013 47 Nm). The model weighs approximately .30 lb (.15 kg) and uses Viton seal kits for effective sealing performance.

Non-adjustable direct-acting relief cartridges are normally closed, pressure-limiting valves used to protect hydraulic components from pressure transients. When the pressure at the inlet (port 1) reaches the valve setting, the valve starts to open to tank (port 2), throttling flow to limit the pressure rise. These valves are smooth and quiet, essentially zero leak, dirt tolerant, immune to silting and are very fast.

  • Customer must specfy setting. The valve will be factory set and is tamper proof.
  • Will accept maximum pressure at port 2; suitable for use in cross port relief circuits.
  • Valve is relatively insensitive to varying oil temperatures and oil borne contamination.
  • Select a spring range where the desired relief setting is approximately mid-range to high between the minimum and maximum pressure to ensure maximum valve repeatability.
  • Suitable for use in load holding applications.
  • Back pressure on the tank port (port 2) is directly additive to the valve setting at a 1:1 ratio.
  • All 2-port relief cartridges (except pilot reliefs) are physically and functionally interchangeable (same flow path, same cavity for a given frame size).
  • Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
CavityT-10A
Series1
Capacity25 gpm95 L/min.
Factory Pressure Settings Established at4 gpm15 L/min.
Maximum Operating Pressure5000 psi350 bar
Response Time - Typical2 ms2 ms
Maximum Valve Leakage at Reseat10 drops/min.0,7 cc/min.
Reseat>90% of setting>90% of setting
Valve Hex Size7/8 in.22,2 mm
Valve Installation Torque30 - 35 lbf ft41 - 47 Nm
Model Weight.30 lb0,15 kg
Seal kit - CartridgeViton: 990-310-006
