SUN HYDRAULICS
RDDACCV

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

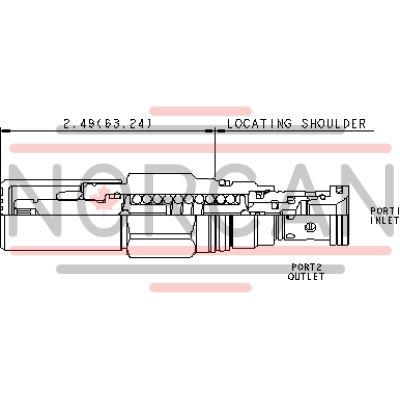

The Sun Hydraulics RDDACCV (RDDACCV) is a direct-acting relief cartridge designed to safeguard hydraulic components from pressure spikes by limiting pressure rise. When the inlet port 1 reaches the set pressure, the valve opens to tank port 2, throttling flow. This valve is noted for its smooth, quiet operation and virtually zero leakage, making it highly dirt tolerant and immune to silting. It can handle maximum pressure at port 2 and is suitable for cross-port relief circuits. The valve's adjustment screw seals are exposed to system pressure, requiring adjustment only when pressure is removed. It is relatively insensitive to oil temperature variations and contamination, ensuring reliable performance in load-holding applications. The back pressure on tank port 2 directly adds to the valve setting at a 1:1 ratio. The cartridge features Sun's floating style construction to reduce internal binding risks due to installation torque or machining variations. The RDDACCV fits into a T-10A cavity with a Series 1 capacity of up to 25 gpm (95 L/min) and can operate at pressures up to 5000 psi (350 bar). It has a typical response time of 2 ms and a maximum leakage rate of 10 drops/min at reseat. The valve reseats at 90% of its set value, with adjustments made by turning the screw clockwise up to six turns for increased settings. Installation requires specific torque settings: valve hex size is .78 in (22.2 mm) with an installation torque of 30-35 lbf ft (41-47 Nm), while locknut hex size is .916 in (15 mm) with a locknut torque of 80-90 lbf in (9-10 Nm). The model weighs .30 lb (.15 kg) and uses Viton seal kits part number 990310006 for optimal performance with phosphate ester fluids while avoiding petroleum-based substances that could damage EPDM seals.
