RDDAQDN

$58.87 USD

SUN HYDRAULICS
Material:RDDAQDN
Model:RDDA-QDN
Summary:Cartridge

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

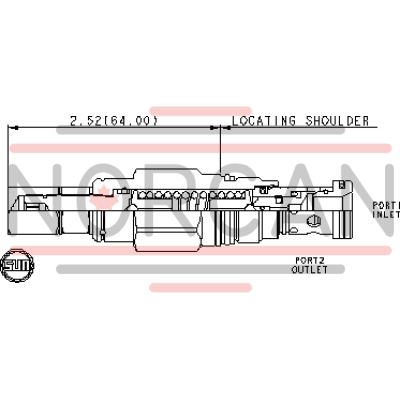

The Sun Hydraulics RDDAQDN (Material Number: RDDAQDN) is a direct-acting relief cartridge designed to function as a normally closed, pressure-limiting valve. This valve is specifically engineered to protect hydraulic components from pressure transients by opening to the tank port when the inlet pressure reaches a pre-set level, thus throttling flow and limiting pressure rise. Characterized by its smooth and quiet operation with essentially zero leakage, this valve is dirt tolerant, immune to silting, and offers rapid response times. It is physically and functionally interchangeable with other 2-port relief cartridges of the same frame size, making it versatile for various applications including cross-port relief circuits and load-holding scenarios. The RDDAQDN model can handle maximum pressures up to 5000 psi (350 bar) at port 2 and exhibits minimal sensitivity to oil temperature variations and contamination. It incorporates Sun's floating style construction to prevent internal part binding due to installation torque or machining variations. The valve's adjustment procedure requires removing system pressure before making changes, ensuring precise settings are maintained. A spring range selection that places the desired relief setting between midrange and high ensures optimal repeatability. With a capacity of 25 gpm (95 L/min), this cartridge has a typical response time of 2 ms and maximum leakage at reseat limited to 10 drops/min (0.7 cc/min). The valve includes EPDM seals for systems using phosphate ester fluids but cautions against exposure to petroleum-based products which may damage seals. Installation specifications include a hex size of 7/8 in. (22.2 mm) with an installation torque between 30 - 35 lbf ft (41 - 47 Nm). The model weighs .30 lb (0.15 kg) and comes with Viton seal kits available if needed for maintenance or repair.

Description

Direct-acting relief cartridges are normally closed, pressure-limiting valves used to protect hydraulic components from pressure transients. When the pressure at the inlet (port 1) reaches the valve setting, the valve starts to open to tank (port 2), throttling flow to limit the pressure rise. These valves are smooth and quiet, essentially zero leak, dirt tolerant, immune to silting and are very fast.

All 2-port relief cartridges (except pilot reliefs) are physically and functionally interchangeable (same flow path, same cavity for a given frame size).
Will accept maximum pressure at port 2; suitable for use in cross port relief circuits.
The seals on the adjust screw are exposed to system pressure which means this valve can only be adjusted when the pressure is removed. The setting procedure is; check the setting, remove the pressure, adjust the valve, check the new setting.
Valve is relatively insensitive to varying oil temperatures and oil borne contamination.
Select a spring range where the desired relief setting is approximately mid-range to high between the minimum and maximum pressure to ensure maximum valve repeatability.
Suitable for use in load holding applications.
Back pressure on the tank port (port 2) is directly additive to the valve setting at a 1:1 ratio.
Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

Cavity	T-10A
Series	1
Capacity	25 gpm95 L/min.
Factory Pressure Settings Established at	4 gpm15 L/min.
Maximum Operating Pressure	5000 psi350 bar
Response Time - Typical	2 ms2 ms
Maximum Valve Leakage at Reseat	10 drops/min.0,7 cc/min.
Reseat	>90% of setting>90% of setting
Adjustment - Number of Clockwise Turns to Increase Setting	66
Valve Hex Size	7/8 in.22,2 mm
Valve Installation Torque	30 - 35 lbf ft41 - 47 Nm
Adjustment Screw Internal Hex Size	5/32 in.4 mm
Locknut Hex Size	9/16 in.15 mm
Locknut Torque	80 - 90 lbf in.9 - 10 Nm
Model Weight	.30 lb0,15 kg
Seal kit - Cartridge	Viton: 990-310-006

Show FAQ

How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
Can I use a kick-down relief for my system relief?	Maybe not. We build in a good amount of overlap in the kick-down reliefs to prevent false tripping. This means they are not as fast as our standard pilot-operated reliefs. A direct-acting relief valve set just above the kick-down relief valve would be good insurance.
Direct acting or pilot operated - what do I use?	Direct-acting valves are used to prevent over pressure, and pilot-operated valves are used to regulate pressure. If you are unsure, use a direct-acting valve. Sun's direct acting valves are very fast, dirt tolerant, stable, and robust. Sun's pilot-operated valves are moderately fast, they have a low pressure rise vs. flow curve, and they are easy to adjust.
Where would I use a kick-down relief?	One graphic example is on a portable grain auger for silos. When the farmer gets caught in the auger the kick-down relief trips and allows him to escape.
What are the tolerances on pressure settings for Sun's pressure control valves?	Pressure setting tolerances are listed in our Performance Data page. A link to this page can also be found in the Additional Resources tab of the applicable product page.
