SUN HYDRAULICS
RDFACCV

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

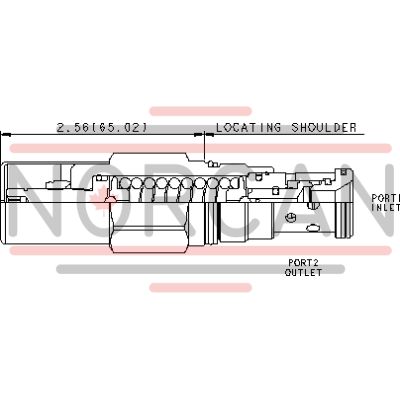

The Sun Hydraulics RDFACCV (RDFACCV) is a direct-acting relief cartridge designed to protect hydraulic systems from pressure transients. This normally closed, pressure-limiting valve opens to the tank port when inlet pressure reaches the valve setting, effectively throttling flow to prevent excessive pressure build-up. The RDFACCV is known for its smooth operation, rapid response time of approximately 2 milliseconds, and essentially zero leakage at reseat. It is also dirt tolerant and immune to silting, making it a reliable choice for various hydraulic applications. This relief cartridge is interchangeable with other 2-port relief cartridges of the same frame size, offering flexibility in system design. It can handle a maximum operating pressure of 5000 psi (350 bar) and a flow capacity of up to 50 gpm (200 L/min). The valve's performance remains stable across varying oil temperatures and contamination levels. It features an adjustment mechanism that requires system pressure removal before setting changes can be made; this ensures precise control over the valve's operation. The RDFACCV is suitable for use in load-holding applications and cross-port relief circuits, with back pressure on the tank port directly affecting the valve setting at a 1:1 ratio. For systems using phosphate ester fluids, cartridges configured with EPDM seals are available; however, these seals are not compatible with petroleum-based fluids. The floating style construction minimizes internal binding risks due to installation torque or machining variations. With factory settings established at 4 gpm (15 L/min), this model offers repeatability when selecting a spring range that places desired relief settings between midrange and maximum pressures. Installation torque specifications include a valve hex size of 1-1/8 inches (28.6 mm) and locknut torque ranging from 80-90 lbf-in (9-10 Nm).
