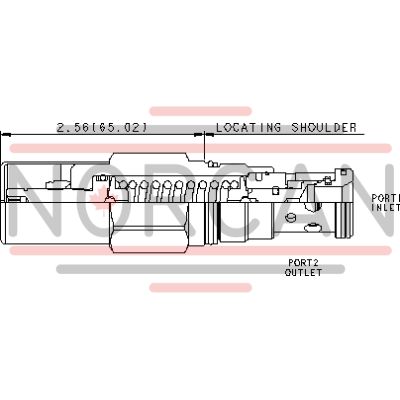

The Sun Hydraulics RDFACSV (RDFACSV) is a direct-acting relief cartridge valve designed to provide pressure-limiting protection for hydraulic systems. This normally closed valve opens to tank port 2 when the inlet port 1 pressure reaches the set value, effectively throttling flow to control pressure spikes. Known for its smooth, quiet operation and essentially zero leakage, this valve is dirt-tolerant, immune to silting, and offers rapid response times. The RDFACSV model features interchangeable physical and functional characteristics across all 2-port relief cartridges of the same frame size, making it suitable for cross-port relief circuits. It can handle maximum pressure at port 2 and is ideal for load-holding applications due to its insensitivity to varying oil temperatures and contamination. The adjustment process requires depressurization before modifying settings, with a recommended spring range selection ensuring optimal repeatability. Notably, back pressure on tank port 2 adds directly to the valve setting at a 1:1 ratio. Cartridges equipped with EPDM seals are compatible with phosphate ester fluid systems but must avoid petroleum-based substances to prevent seal damage. The Sun floating style construction minimizes internal component binding risks due to excessive torque or machining variations. With a capacity of 50 gpm (200 L/min) and maximum operating pressure of 5000 psi (350 bar), this valve exhibits typical response times of approximately 2 ms and a reseat characteristic at 90% of the setting. Installation specifications include a valve hex size of 1-1/8 inches (28.6 mm) and an installation torque between 45-50 lbf-ft (61-68 Nm). The RDFACSV model weighs approximately .50 lb (.25 kg) and uses Viton seal kits identified by part number 990303006.
