SUN HYDRAULICS
RELIEF CART
RDFALAV
$90.44 USD
- SUN HYDRAULICS
- Material:RDFALAV
- Model:RDFA-LAV
- Summary:Cartridge
Quantity in stock: 1
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

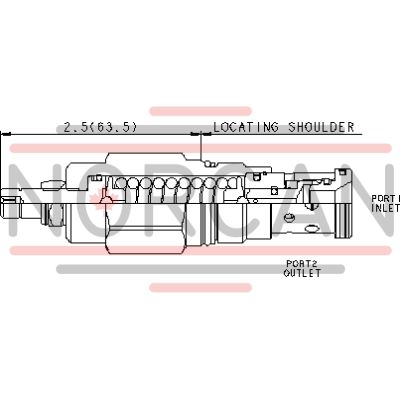

The Sun Hydraulics RDFALAV (RDFALAV) is a direct-acting relief cartridge designed to protect hydraulic components from pressure transients by functioning as a normally closed, pressure-limiting valve. When the inlet port 1 reaches the valve's set pressure, it begins to open, directing flow to tank port 2 and throttling it to limit any further rise in pressure. Known for its smooth and quiet operation, this valve is essentially zero-leak, dirt-tolerant, immune to silting, and provides rapid response times. The RDFALAV is suitable for use in cross-port relief circuits and load-holding applications due to its ability to accept maximum pressure at port 2. The valve's seals on the adjustment screw are exposed to system pressure; thus, adjustments can only be made when the system is depressurized. Users are advised to select a spring range where the desired relief setting falls between the midrange and high end of the spectrum for optimal repeatability. The RDFALAV demonstrates relative insensitivity to varying oil temperatures and oil-borne contamination. With a capacity of 50 gpm (200 L/min) and a maximum operating pressure of 5000 psi (350 bar), this cartridge incorporates Sun's floating style construction to minimize binding risks due to installation torque or machining variations. It features an adjustment mechanism that requires five clockwise turns to increase settings, with specific torque requirements for installation and locknut adjustments. The RDFALAV can be configured with EPDM seals for systems using phosphate ester fluids but should not be exposed to petroleum-based fluids. This model weighs approximately 0.50 lb (0.25 kg) and comes with a Viton seal kit option (990303006).
The Sun Hydraulics RDFALAV (RDFALAV) is a direct-acting relief cartridge designed to protect hydraulic components from pressure transients by functioning as a normally closed, pressure-limiting valve. When the inlet port 1 reaches the valve's set pressure, it begins to open, directing flow to tank port 2 and throttling it to limit any further rise in pressure. Known for its smooth and quiet operation, this valve is essentially zero-leak, dirt-tolerant, immune to silting, and provides rapid response times. The RDFALAV is suitable for use in cross-port relief circuits and load-holding applications due to its ability to accept maximum pressure at port 2. The valve's seals on the adjustment screw are exposed to system pressure; thus, adjustments can only be made when the system is depressurized. Users are advised to select a spring range where the desired relief setting falls between the midrange and high end of the spectrum for optimal repeatability. The RDFALAV demonstrates relative insensitivity to varying oil temperatures and oil-borne contamination. With a capacity of 50 gpm (200 L/min) and a maximum operating pressure of 5000 psi (350 bar), this cartridge incorporates Sun's floating style construction to minimize binding risks due to installation torque or machining variations. It features an adjustment mechanism that requires five clockwise turns to increase settings, with specific torque requirements for installation and locknut adjustments. The RDFALAV can be configured with EPDM seals for systems using phosphate ester fluids but should not be exposed to petroleum-based fluids. This model weighs approximately 0.50 lb (0.25 kg) and comes with a Viton seal kit option (990303006).
Direct-acting relief cartridges are normally closed, pressure-limiting valves used to protect hydraulic components from pressure transients. When the pressure at the inlet (port 1) reaches the valve setting, the valve starts to open to tank (port 2), throttling flow to limit the pressure rise. These valves are smooth and quiet, essentially zero leak, dirt tolerant, immune to silting and are very fast.
- All 2-port relief cartridges (except pilot reliefs) are physically and functionally interchangeable (same flow path, same cavity for a given frame size).
- Will accept maximum pressure at port 2; suitable for use in cross port relief circuits.
- The seals on the adjust screw are exposed to system pressure which means this valve can only be adjusted when the pressure is removed. The setting procedure is; check the setting, remove the pressure, adjust the valve, check the new setting.
- Valve is relatively insensitive to varying oil temperatures and oil borne contamination.
- Select a spring range where the desired relief setting is approximately mid-range to high between the minimum and maximum pressure to ensure maximum valve repeatability.
- Suitable for use in load holding applications.
- Back pressure on the tank port (port 2) is directly additive to the valve setting at a 1:1 ratio.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-3A |
| Series | 2 |
| Capacity | 50 gpm200 L/min. |
| Factory Pressure Settings Established at | 4 gpm15 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Response Time - Typical | 2 ms2 ms |
| Maximum Valve Leakage at Reseat | 10 drops/min.0,7 cc/min. |
| Reseat | >90% of setting>90% of setting |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .50 lb0,25 kg |
| Seal kit - Cartridge | Viton: 990-303-006 |
Show FAQ
Additional Resources
- Sun Offers Zinc-Nickel Plating for Corrosion Resistance
- Sun Cartridges with EPDM Seals
- Series 4 PLUS Cartridges Offer Higher Flows with Lower Pressure Losses
- Pilot-Operated, Balanced Poppet, Anti Shock Reliefs
- CavitySaver multi-function valves deliver single-cartridge solutions
- 'Soft' Relief Eliminates Pressure Spikes
- Tri-Grip Handknob Now Offered From Sun as a Standard Control Option
- QuickDesign with SmartConnect Offers Drag-and-Drop Schematic Tool
- Sun Introduces 'Hybrid' Valves
- CE/TÜV Certified Pressure Relief Valves
- Pressure Relief and Regulating Cartridge Valve Technical Tips
- Pilot Operated, Balanced Poppet Relief Valves
- Sun Expands Corrosion-Resistant Solutions
- Pressure Relief and Regulating Valves
- Manufacturing Sun Cartridge Cavities
- Performance Data
- Sun's Floating Style Screw-In Cartridge
- Units of Measure, Settings, and Conversions
- Cavity Information (S-171) and Tooling
- Sun Model Code Explanation; 999-901-334
- Cartridges: Materials of Construction
- Fluid and Temperature Recommendations
Notes:
- U.S. Patent #4,742,846; European Patent Pending
