SUN HYDRAULICS
RDJACSV

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

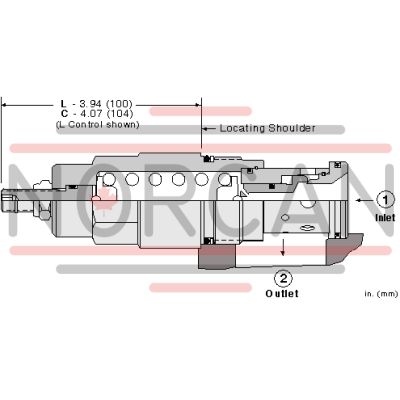

The Sun Hydraulics RDJACSV (Material Number: RDJACSV) is a direct-acting relief cartridge designed to protect hydraulic components from pressure transients. As a normally closed, pressure-limiting valve, it opens to tank port 2 when the inlet port 1 pressure reaches the valve setting, thereby throttling flow to limit the pressure rise. Known for its smooth and quiet operation, this valve is essentially zero-leak and dirt-tolerant, making it immune to silting and very fast in response. The RDJACSV model is interchangeable with all 2-port relief cartridges, except pilot reliefs, sharing the same flow path and cavity for a given frame size. It can accept maximum pressure at port 2 and is suitable for cross-port relief circuits as well as load-holding applications. The valve's design ensures that it remains relatively insensitive to varying oil temperatures and oil-borne contamination. For optimal performance, users should select a spring range where the desired relief setting lies between midrange to high of the minimum and maximum pressure range. The backpressure on tank port 2 is directly additive to the valve setting at a 1:1 ratio. Cartridges with EPDM seals are intended for systems using phosphate ester fluids; exposure to petroleum-based fluids will damage these seals. Incorporating Sun's floating style construction minimizes internal parts binding due to excessive installation torque or machining variations in cavity/cartridge. Key specifications include a capacity of 200 gpm (760 L/min), maximum operating pressure of 5000 psi (350 bar), typical response time of 2 ms, and reseat capability at 90% of setting. The valve weighs approximately 3.30 lb (1.50 kg) and includes an adjustment screw with an internal hex size of 5/32 in (4 mm).
