SUN HYDRAULICS
RDJAQDN

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

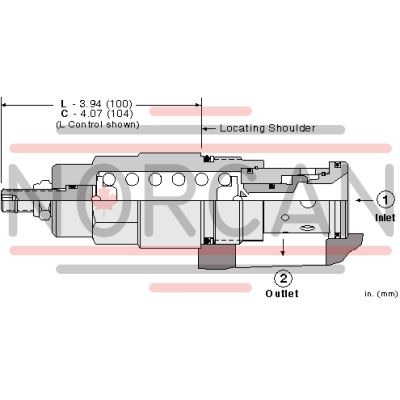

The Sun Hydraulics RDJAQDN (RDJAQDN) is a direct-acting relief cartridge designed to protect hydraulic systems from pressure transients by utilizing a pressure-limiting mechanism. This normally closed valve opens when the inlet port pressure reaches the set threshold, allowing flow to the tank port and thus controlling pressure increase. Notably smooth and quiet, this valve is engineered for zero leakage and high dirt tolerance, making it immune to silting and ensuring rapid response times. It is interchangeable with other 2-port relief cartridges of the same frame size, offering flexibility in cross-port relief circuits. This model can handle a maximum operating pressure of 5000 psi (350 bar) with a capacity of 200 gpm (760 L/min). The RDJAQDN is relatively insensitive to oil temperature variations and contamination, enhancing its reliability in diverse conditions. It incorporates Sun's floating-style construction to minimize internal part binding due to installation torque or machining variations. The valve features an adjustment screw that requires system pressure removal for setting changes, with a reseat capability at 90% of the setting. It also supports load-holding applications and can accommodate back pressures on the tank port directly proportional to the valve setting. The RDJAQDN is compatible with EPDM seals for phosphate ester fluid systems but should avoid petroleum-based fluids. For optimal performance, users are advised to select a spring range where desired settings fall within midrange to high between minimum and maximum pressures. Installation requires specific torque settings: 350-375 lbf ft (474-508 Nm) for the valve itself and 80-90 lbf in (9-10 Nm) for the locknut. With its robust design and advanced capabilities, this cartridge is ideal for applications requiring precise pressure control under challenging conditions.
