SUN HYDRAULICS
RPCCKBN

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

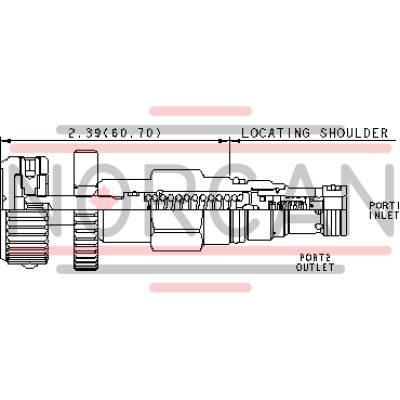

The Sun Hydraulics RPCCKBN (RPCCKBN) is a pilot-operated, balanced piston relief cartridge designed for precise pressure regulation. This normally closed valve opens to the tank port when the inlet pressure reaches a set level, effectively controlling flow and maintaining desired pressure levels. Known for its accuracy, low-pressure rise relative to flow, smooth operation, and moderate speed, this valve is versatile in application. It is physically and functionally interchangeable with other 2-port relief cartridges of the same frame size, making it suitable for cross-port relief circuits while accounting for potential spool leakage. The valve can handle a maximum operating pressure of 5000 psi (350 bar) with a typical response time of 10 ms. It features an adjustable setting with a minimum threshold of 75 psi (5 bar) across all spring ranges. The main stage orifice is contamination-protected, and the design incorporates Sun's floating style construction to prevent binding due to installation torque or machining variations. Although not suited for load-holding applications due to spool leakage, it can accept maximum pressure at port 2. The back pressure on the tank port directly adds to the valve setting at a 1:1 ratio. Configurations with EPDM seals are available for systems using phosphate ester fluids but should not be exposed to petroleum-based substances as they could damage the seals. The RPCCKBN has a capacity of 12 gpm (45 L/min) and comes with specific installation requirements such as torque settings and adjustment screw sizes for optimal performance.
