SUN HYDRAULICS
RPEC8WV
$69.59 USD
- SUN HYDRAULICS
- Material:RPEC8WV
- Model:RPEC-8WV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics RPEC8WV (RPEC8WV) is a normally closed modulating valve designed with an integral pilot control cavity, suitable for various hydraulic applications. It features a balanced piston design and accepts any T8A pressure control cartridge. When the inlet port 1 reaches the pressure setting of the pilot control cartridge, the valve begins to open to tank port 2, regulating flow and pressure. The pilot cartridge setting dictates the pressure difference between ports 1 and 2. Notably, this valve can handle maximum pressure at port 2, making it ideal for cross-port relief circuits. However, it's not recommended for load-holding applications due to spool leakage. The main stage orifice is protected by a 150-micron stainless steel screen, ensuring durability and reliability. The valve's back pressure on tank port 2 adds directly to its setting in a 1:1 ratio. With an option for direct incorporation of the T8A pilot control valve into its end via the T8A cavity, it supports various operations like electroproportional, solenoid, air pilot, and hydraulic pilot\u2014though these cartridges are sold separately. Its construction minimizes internal binding risks due to excessive torque or machining variations. The RPEC8WV has a capacity of 25 gpm (95 L/min) and can operate at pressures up to 5000 psi (350 bar). It requires specific installation torques for both main stage and pilot control valves to ensure optimal performance. Additionally, configurations with EPDM seals are compatible with phosphate ester fluids but are vulnerable to damage from petroleum-based substances. The model weighs approximately .30 lb (.15 kg) and includes Viton seal kits as part of its component offerings.
The Sun Hydraulics RPEC8WV (RPEC8WV) is a normally closed modulating valve designed with an integral pilot control cavity, suitable for various hydraulic applications. It features a balanced piston design and accepts any T8A pressure control cartridge. When the inlet port 1 reaches the pressure setting of the pilot control cartridge, the valve begins to open to tank port 2, regulating flow and pressure. The pilot cartridge setting dictates the pressure difference between ports 1 and 2. Notably, this valve can handle maximum pressure at port 2, making it ideal for cross-port relief circuits. However, it's not recommended for load-holding applications due to spool leakage. The main stage orifice is protected by a 150-micron stainless steel screen, ensuring durability and reliability. The valve's back pressure on tank port 2 adds directly to its setting in a 1:1 ratio. With an option for direct incorporation of the T8A pilot control valve into its end via the T8A cavity, it supports various operations like electroproportional, solenoid, air pilot, and hydraulic pilot\u2014though these cartridges are sold separately. Its construction minimizes internal binding risks due to excessive torque or machining variations. The RPEC8WV has a capacity of 25 gpm (95 L/min) and can operate at pressures up to 5000 psi (350 bar). It requires specific installation torques for both main stage and pilot control valves to ensure optimal performance. Additionally, configurations with EPDM seals are compatible with phosphate ester fluids but are vulnerable to damage from petroleum-based substances. The model weighs approximately .30 lb (.15 kg) and includes Viton seal kits as part of its component offerings.
This valve is a normally closed modulating element that incorporates an integral pilot control cavity. It is a balanced piston design. The pilot control cavity will accept any T-8A pressure control cartridge. When the pressure at the inlet (port 1) reaches the pilot control cartridge's setting, the modulating element starts to open to tank (port 2), throttling flow to regulate the pressure. The pilot cartridge's setting determines the difference in pressure between port 1 and port 2.
- All 2-port relief cartridges (except pilot reliefs) are physically and functionally interchangeable (same flow path, same cavity for a given frame size).
- Will accept maximum pressure at port 2; suitable for use in cross port relief circuits.
- Main stage orifice is protected by a 150 micron stainless steel screen.
- Not suitable for use in load holding applications due to spool leakage.
- Back pressure on the tank port (port 2) is directly additive to the valve setting at a 1:1 ratio.

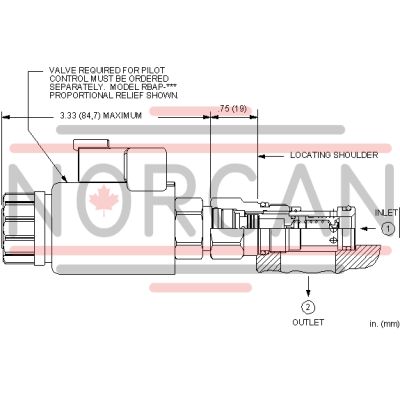

- NOTE: With the -8 control option, the main stage valve should first be installed to the correct torque value. The T-8A pilot control valve should then be installed into the main stage valve to its required torque value.
- The -8 control option allows the pilot control valve to be incorporated directly into the end of the relief cartridge via the T-8A cavity. These pilot control cartridges are sold separately and include electro-proportional, solenoid, air pilot, and hydraulic pilot operation. See Pilot Control Cartridges.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-10A |
| Series | 1 |
| Capacity | 25 gpm95 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Control Pilot Flow | 7 - 10 in³/min.0,11 - 0,16 L/min. |
| Pilot Control Cavity | T-8AT-8A |
| Pilot Control Valve Installation Torque | 20 - 25 lbf ft27 - 33 Nm |
| Pilot Control Valve Hex Size | 7/8 in.22,2 mm |
| Main stage leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .30 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-010-006 |
Show FAQ
Additional Resources
- Pilot-Operated, Balanced Poppet, Anti Shock Reliefs
- Configure Your Bluetooth Embedded Amplifier with AmpSet Blue™
- Sun Introduces 'Hybrid' Valves
- Tri-Grip Handknob Now Offered From Sun as a Standard Control Option
- Sun Expands Corrosion-Resistant Solutions
- CavitySaver multi-function valves deliver single-cartridge solutions
- Electro-Proportional Basics Explained
- CE/TÜV Certified Pressure Relief Valves
- Weatherized Solenoid Valves for Harsh Environments
- QuickDesign with SmartConnect Offers Drag-and-Drop Schematic Tool
- Pressure Relief and Regulating Cartridge Valve Technical Tips
- Pilot Operated, Balanced Poppet Relief Valves
- Series 4 PLUS Cartridges Offer Higher Flows with Lower Pressure Losses
- Sun Offers Zinc-Nickel Plating for Corrosion Resistance
- Sun Cartridges with EPDM Seals
- 'Soft' Relief Eliminates Pressure Spikes
- Proportional Amplifiers and Ancillary Products
- Manufacturing Sun Cartridge Cavities
- Solenoid Coils for Switching and Proportional Valves
- Pressure Relief and Regulating Valves
- Electro-Proportional Cartridge Valves
- Electro-Proportional Terms and Definitions
- Cartridges: Materials of Construction
- Cavity Information (S-171) and Tooling
- Sun's Floating Style Screw-In Cartridge
- Fluid and Temperature Recommendations
- Performance Data
- Sun Model Code Explanation; 999-901-334
- Units of Measure, Settings, and Conversions
Notes:
- Compound cartridge (pilot and main stage) assembly information is provided for reference only. Cartridges must be ordered separately and assembled at point of use.
