SUN HYDRAULICS
RPECQEN
$64.33 USD
- SUN HYDRAULICS
- Material:RPECQEN
- Model:RPEC-QEN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

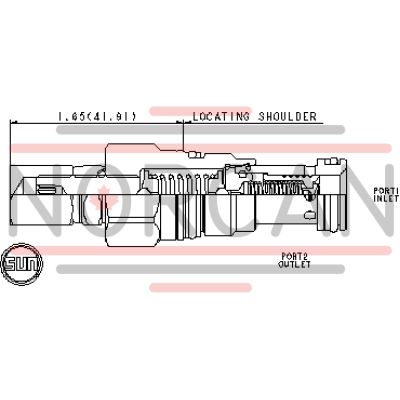

The Sun Hydraulics RPECQEN (RPECQEN) is a pilot-operated, balanced-piston relief cartridge designed for precise pressure regulation. This normally closed valve opens to the tank port when inlet pressure reaches the set threshold, effectively throttling flow to maintain desired pressure levels. Notably accurate and smooth, these valves offer low pressure rise versus flow and are moderately fast in response. All 2-port relief cartridges are interchangeable within the same frame size, allowing for flexible application across systems, especially in cross-port relief circuits where maximum pressure at port 2 is permissible. However, it is important to consider spool leakage in such configurations. The main stage orifice of the RPECQEN is safeguarded by a 150-micron stainless steel screen, ensuring durability and reliability. While not suitable for load-holding applications due to potential spool leakage, this cartridge can handle back pressure on the tank port directly additive to the valve setting at a 1:1 ratio. For systems using phosphate ester fluids, EPDM seals are available but should not be exposed to petroleum-based substances as they may cause damage. RPECQEN valves feature adjustable settings throughout their full range via W or Y controls unless specified otherwise with a special setting that denotes the maximum valve setting. Designed with corrosion resistance in mind, options include external stainless steel components (suffix AP) or zinc-nickel plating (suffix LH). The Sun floating style construction minimizes internal part binding risks due to installation torque or machining variations. This Series 1 cartridge fits Cavity T-10A and offers a capacity of up to 25 gpm (95 L/min), with factory pressure settings established at 4 gpm (15 L/min). It operates efficiently up to a maximum pressure of 5000 psi (350 bar), featuring typical response times of approximately 10 ms and minimal leakage rates.
The Sun Hydraulics RPECQEN (RPECQEN) is a pilot-operated, balanced-piston relief cartridge designed for precise pressure regulation. This normally closed valve opens to the tank port when inlet pressure reaches the set threshold, effectively throttling flow to maintain desired pressure levels. Notably accurate and smooth, these valves offer low pressure rise versus flow and are moderately fast in response. All 2-port relief cartridges are interchangeable within the same frame size, allowing for flexible application across systems, especially in cross-port relief circuits where maximum pressure at port 2 is permissible. However, it is important to consider spool leakage in such configurations. The main stage orifice of the RPECQEN is safeguarded by a 150-micron stainless steel screen, ensuring durability and reliability. While not suitable for load-holding applications due to potential spool leakage, this cartridge can handle back pressure on the tank port directly additive to the valve setting at a 1:1 ratio. For systems using phosphate ester fluids, EPDM seals are available but should not be exposed to petroleum-based substances as they may cause damage. RPECQEN valves feature adjustable settings throughout their full range via W or Y controls unless specified otherwise with a special setting that denotes the maximum valve setting. Designed with corrosion resistance in mind, options include external stainless steel components (suffix AP) or zinc-nickel plating (suffix LH). The Sun floating style construction minimizes internal part binding risks due to installation torque or machining variations. This Series 1 cartridge fits Cavity T-10A and offers a capacity of up to 25 gpm (95 L/min), with factory pressure settings established at 4 gpm (15 L/min). It operates efficiently up to a maximum pressure of 5000 psi (350 bar), featuring typical response times of approximately 10 ms and minimal leakage rates.
Pilot-operated, balanced-piston relief cartridges are normally closed pressure regulating valves. When the pressure at the inlet (port 1) reaches the valve setting, the valve starts to open to tank (port 2), throttling flow to regulate the pressure. These valves are accurate, have low pressure rise vs. flow, they are smooth and quiet, and are moderately fast.
- All 2-port relief cartridges (except pilot reliefs) are physically and functionally interchangeable (same flow path, same cavity for a given frame size).
- Will accept maximum pressure at port 2; suitable for use in cross port relief circuits. If used in cross port relief circuits, consider spool leakage.
- Main stage orifice is protected by a 150 micron stainless steel screen.
- Not suitable for use in load holding applications due to spool leakage.
- Back pressure on the tank port (port 2) is directly additive to the valve setting at a 1:1 ratio.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- W and Y controls (where applicable) can be specified with or without a special setting. When no special setting is specified, the valve is adjustable throughout its full range using the W or Y control. When a special setting is specified, this setting represents the maximum setting of the valve.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP for external stainless steel components, or /LH for external zinc-nickel plated components. See the CONFIGURATION section for all options. For further details, please see the Materials of Construction page located under TECH RESOURCES.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-10A |
| Series | 1 |
| Capacity | 25 gpm95 L/min. |
| Factory Pressure Settings Established at | 4 gpm15 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Response Time - Typical | 10 ms10 ms |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .30 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-010-006 |
Show FAQ
Additional Resources
- CE/TÜV Certified Pressure Relief Valves
- Pressure Relief and Regulating Cartridge Valve Technical Tips
- Pilot Operated, Balanced Poppet Relief Valves
- Sun Expands Corrosion-Resistant Solutions
- Sun Offers Zinc-Nickel Plating for Corrosion Resistance
- Sun Cartridges with EPDM Seals
- Series 4 PLUS Cartridges Offer Higher Flows with Lower Pressure Losses
- Pilot-Operated, Balanced Poppet, Anti Shock Reliefs
- CavitySaver multi-function valves deliver single-cartridge solutions
- 'Soft' Relief Eliminates Pressure Spikes
- Tri-Grip Handknob Now Offered From Sun as a Standard Control Option
- QuickDesign with SmartConnect Offers Drag-and-Drop Schematic Tool
- Sun Introduces 'Hybrid' Valves
- Manufacturing Sun Cartridge Cavities
- Pressure Relief and Regulating Valves
- Sun Model Code Explanation; 999-901-334
- Cartridges: Materials of Construction
- Fluid and Temperature Recommendations
- Performance Data
- Sun's Floating Style Screw-In Cartridge
- Units of Measure, Settings, and Conversions
- Cavity Information (S-171) and Tooling
Notes:
- For Series 1 cartridges configured with an O control (panel mount handknob), a .75 in. (19 mm) diameter hole is required in the panel.
