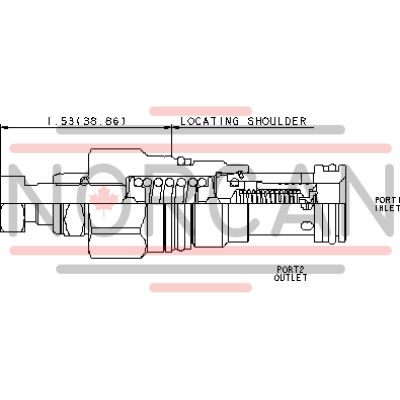

SUN HYDRAULICS
RPEEFCN
$62.15 USD
- SUN HYDRAULICS
- Material:RPEEFCN
- Model:RPEE-FCN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics RPEEFCN (RPEEFCN) is a fast-acting, pilot-operated, balanced piston relief cartridge designed for pressure-limiting applications in hydraulic systems. This valve is normally closed and opens rapidly to protect components from pressure transients by throttling flow to limit pressure rise when the inlet port reaches the valve setting. It features low pressure rise versus flow and offers quick response times, typically around 2 milliseconds. The valve is capable of handling a maximum operating pressure of 5000 psi (350 bar) and has a capacity of 25 gpm (95 L/min). It includes a main stage orifice protected by a 150-micron stainless steel screen, although it is not suitable for load holding applications due to potential spool leakage. The relief cartridge can accept maximum pressure at port 2, making it suitable for cross-port relief circuits with consideration for spool leakage. Back pressure on the tank port directly affects the valve setting at a 1:1 ratio. The design incorporates Sun's floating style construction to minimize internal binding due to installation torque or machining variations. This model is adjustable throughout its range using W or Y controls unless specified otherwise with a special setting. It has physical and functional interchangeability across all Series 1 cartridges with similar flow paths and cavity sizes. The cartridge's installation requires specific torque settings: 30-35 lbf ft (41-47 Nm) for the valve and 80-90 lbf in (9-10 Nm) for the locknut, with respective hex sizes of 7/8 in (22.2 mm) and 9/16 in (15 mm). The adjustment screw has an internal hex size of 5/32 in (4 mm), requiring up to five clockwise turns to increase the setting.
The Sun Hydraulics RPEEFCN (RPEEFCN) is a fast-acting, pilot-operated, balanced piston relief cartridge designed for pressure-limiting applications in hydraulic systems. This valve is normally closed and opens rapidly to protect components from pressure transients by throttling flow to limit pressure rise when the inlet port reaches the valve setting. It features low pressure rise versus flow and offers quick response times, typically around 2 milliseconds. The valve is capable of handling a maximum operating pressure of 5000 psi (350 bar) and has a capacity of 25 gpm (95 L/min). It includes a main stage orifice protected by a 150-micron stainless steel screen, although it is not suitable for load holding applications due to potential spool leakage. The relief cartridge can accept maximum pressure at port 2, making it suitable for cross-port relief circuits with consideration for spool leakage. Back pressure on the tank port directly affects the valve setting at a 1:1 ratio. The design incorporates Sun's floating style construction to minimize internal binding due to installation torque or machining variations. This model is adjustable throughout its range using W or Y controls unless specified otherwise with a special setting. It has physical and functional interchangeability across all Series 1 cartridges with similar flow paths and cavity sizes. The cartridge's installation requires specific torque settings: 30-35 lbf ft (41-47 Nm) for the valve and 80-90 lbf in (9-10 Nm) for the locknut, with respective hex sizes of 7/8 in (22.2 mm) and 9/16 in (15 mm). The adjustment screw has an internal hex size of 5/32 in (4 mm), requiring up to five clockwise turns to increase the setting.
Fast-acting, pilot-operated, balanced piston relief cartridges are normally closed, pressure-limiting valves used to protect hydraulics components from pressure transients. Fast opening and closing is gained at the expense of smoothness. When the pressure at the inlet (port 1) reaches the valve setting, the valve starts to open to tank (port 2), throttling flow to limit the pressure rise. These valves have low pressure rise vs. flow and are very fast.
- Will accept maximum pressure at port 2; suitable for use in cross port relief circuits. If used in cross port relief circuits, consider spool leakage.
- Main stage orifice is protected by a 150 micron stainless steel screen.
- Not suitable for use in load holding applications due to spool leakage.
- Back pressure on the tank port (port 2) is directly additive to the valve setting at a 1:1 ratio.
- All 2-port relief cartridges (except pilot reliefs) are physically and functionally interchangeable (same flow path, same cavity for a given frame size).
- W and Y controls (where applicable) can be specified with or without a special setting. When no special setting is specified, the valve is adjustable throughout its full range using the W or Y control. When a special setting is specified, this setting represents the maximum setting of the valve.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-10A |
| Series | 1 |
| Capacity | 25 gpm95 L/min. |
| Factory Pressure Settings Established at | 4 gpm15 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Response Time - Typical | 2 ms2 ms |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .30 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-010-006 |
Show FAQ
Additional Resources
- CE/TÜV Certified Pressure Relief Valves
- Pressure Relief and Regulating Cartridge Valve Technical Tips
- Pilot Operated, Balanced Poppet Relief Valves
- Sun Expands Corrosion-Resistant Solutions
- Sun Offers Zinc-Nickel Plating for Corrosion Resistance
- Sun Cartridges with EPDM Seals
- Series 4 PLUS Cartridges Offer Higher Flows with Lower Pressure Losses
- Pilot-Operated, Balanced Poppet, Anti Shock Reliefs
- CavitySaver multi-function valves deliver single-cartridge solutions
- 'Soft' Relief Eliminates Pressure Spikes
- Tri-Grip Handknob Now Offered From Sun as a Standard Control Option
- QuickDesign with SmartConnect Offers Drag-and-Drop Schematic Tool
- Sun Introduces 'Hybrid' Valves
- Manufacturing Sun Cartridge Cavities
- Pressure Relief and Regulating Valves
- Sun Model Code Explanation; 999-901-334
- Cartridges: Materials of Construction
- Fluid and Temperature Recommendations
- Performance Data
- Sun's Floating Style Screw-In Cartridge
- Units of Measure, Settings, and Conversions
- Cavity Information (S-171) and Tooling
Notes:
- For Series 1 cartridges configured with an O control (panel mount handknob), a .75 in. (19 mm) diameter hole is required in the panel.
