SUN HYDRAULICS
RPGC8DN

$95.41 USD

SUN HYDRAULICS
Material:RPGC8DN
Model:RPGC-8DN
Summary:Cartridge

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics RPGC8DN (RPGC8DN) is a normally closed modulating element valve featuring an integral pilot control cavity, designed with a balanced piston configuration. This valve is engineered to accept any T8A pressure control cartridge, allowing it to regulate pressure effectively. When the inlet port 1 reaches the pilot control cartridge's set pressure, the valve opens to tank port 2, throttling flow to manage the pressure difference between these ports. The RPGC8DN is interchangeable with other 2-port relief cartridges of the same frame size and flow path, making it versatile for various applications. It can sustain maximum pressure at port 2 and is suitable for cross-port relief circuits. The main stage orifice of this valve is safeguarded by a 150-micron stainless steel screen, ensuring durability and reliability in operation. However, it is not recommended for load-holding applications due to potential spool leakage. It features a direct 1:1 ratio addition of back pressure on tank port 2 to the valve setting. Installation requires careful torque application: first installing the main stage valve followed by the T8A pilot control valve into its respective cavity. With an option for various pilot controls\u2014electroproportional, solenoid, air pilot, or hydraulic pilot\u2014the RPGC8DN offers flexibility in system integration. Cartridges with EPDM seals are compatible with phosphate ester fluids but should avoid petroleum-based substances to prevent seal damage. The floating style construction minimizes internal binding risks due to installation torque or machining variations. Specifications include a capacity of up to 50 gpm (200 L/min), maximum operating pressure of 5000 psi (350 bar), and a main stage leakage rate at specified conditions of about 3 in\u00b3/min (50 cc/min). Its installation torque ranges from 45-50 lbf-ft (61-68 Nm), and it weighs approximately .50 lb (.25 kg).

Description

This valve is a normally closed modulating element that incorporates an integral pilot control cavity. It is a balanced piston design. The pilot control cavity will accept any T-8A pressure control cartridge. When the pressure at the inlet (port 1) reaches the pilot control cartridge's setting, the modulating element starts to open to tank (port 2), throttling flow to regulate the pressure. The pilot cartridge's setting determines the difference in pressure between port 1 and port 2.

All 2-port relief cartridges (except pilot reliefs) are physically and functionally interchangeable (same flow path, same cavity for a given frame size).
Will accept maximum pressure at port 2; suitable for use in cross port relief circuits.
Main stage orifice is protected by a 150 micron stainless steel screen.
Not suitable for use in load holding applications due to spool leakage.
Back pressure on the tank port (port 2) is directly additive to the valve setting at a 1:1 ratio.

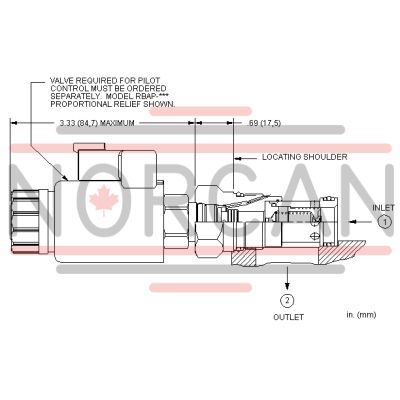

NOTE: With the -8 control option, the main stage valve should first be installed to the correct torque value. The T-8A pilot control valve should then be installed into the main stage valve to its required torque value.
The -8 control option allows the pilot control valve to be incorporated directly into the end of the relief cartridge via the T-8A cavity. These pilot control cartridges are sold separately and include electro-proportional, solenoid, air pilot, and hydraulic pilot operation. See Pilot Control Cartridges.
Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

Cavity	T-3A
Series	2
Capacity	50 gpm200 L/min.
Maximum Operating Pressure	5000 psi350 bar
Control Pilot Flow	10 - 15 in³/min.0,16 - 0,25 L/min.
Pilot Control Cavity	T-8AT-8A
Main stage leakage at 110 SUS (24 cSt)	3 in³/min.@1000 psi50 cc/min.@70 bar
Valve Hex Size	1 1/8 in.28,6 mm
Valve Installation Torque	45 - 50 lbf ft61 - 68 Nm
Model Weight	.50 lb0,25 kg
Seal kit - Cartridge	Viton: 990-203-006

Show FAQ

Additional Resources

Notes:

Compound cartridge (pilot and main stage) assembly information is provided for reference only. Cartridges must be ordered separately and assembled at point of use.

Where would I use a kick-down relief?	One graphic example is on a portable grain auger for silos. When the farmer gets caught in the auger the kick-down relief trips and allows him to escape.
How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
What are the tolerances on pressure settings for Sun's pressure control valves?	Pressure setting tolerances are listed in our Performance Data page. A link to this page can also be found in the Additional Resources tab of the applicable product page.
Can I use a kick-down relief for my system relief?	Maybe not. We build in a good amount of overlap in the kick-down reliefs to prevent false tripping. This means they are not as fast as our standard pilot-operated reliefs. A direct-acting relief valve set just above the kick-down relief valve would be good insurance.
Direct acting or pilot operated - what do I use?	Direct-acting valves are used to prevent over pressure, and pilot-operated valves are used to regulate pressure. If you are unsure, use a direct-acting valve. Sun's direct acting valves are very fast, dirt tolerant, stable, and robust. Sun's pilot-operated valves are moderately fast, they have a low pressure rise vs. flow curve, and they are easy to adjust.
How do I get a kick-down relief to reset?	The kick-down relief acts much like a circuit breaker. When the pressure at the inlet (port 1) of the relief valve rises to the setting, the valve pops open and drops the pressure down to 100 psi or so. The valve stays open until flow through it stops. Shutting off the supply of oil will reset the valve; reversing pressure on the valve is a positive way of resetting it.
