SUN HYDRAULICS
RPGCJUV
$95.51 USD
- SUN HYDRAULICS
- Material:RPGCJUV
- Model:RPGC-JUV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

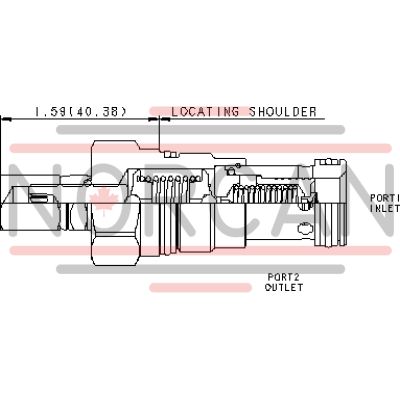

The Sun Hydraulics RPGCJUV (RPGCJUV) is a pilot-operated, balanced piston relief cartridge designed for precise pressure regulation. This valve operates as a normally closed pressure regulating device, opening to tank port 2 when the inlet port 1 pressure reaches the set level, thus modulating flow to maintain desired pressure. Known for its accuracy and low pressure rise versus flow characteristics, this relief cartridge ensures smooth and quiet operation with moderate speed. It is suitable for cross-port relief circuits but not recommended for load-holding applications due to potential spool leakage. The valve can handle maximum pressure at port 2 and features a main stage orifice protected by a 150-micron stainless steel screen. With EPDM seal options, it is compatible with systems using phosphate ester fluids but should not be exposed to petroleum-based substances. The RPGCJUV incorporates Sun's floating style construction to prevent internal binding from installation torque or machining variations. It supports corrosion-resistant options with external stainless steel or zinc-nickel plating identified by model code suffixes AP or LH respectively. This cartridge fits into a T-3A cavity, has a capacity of 50 gpm (200 L/min), and operates up to 5000 psi (350 bar). The response time is typically around 10 ms, with maximum leakage of 3 in\u00b3/min at 1000 psi (50 cc/min at 70 bar). Adjustable via an internal hex screw, it allows up to five clockwise turns for setting increases. Installation requires specific torque settings: valve hex size of 1-1/8 inches (28.6 mm) with torque between 45-50 lbf.ft (61-68 Nm), and locknut torque of 80-90 lbf.in (9-10 Nm). Its compact design weighs approximately .50 lb (.25 kg).
The Sun Hydraulics RPGCJUV (RPGCJUV) is a pilot-operated, balanced piston relief cartridge designed for precise pressure regulation. This valve operates as a normally closed pressure regulating device, opening to tank port 2 when the inlet port 1 pressure reaches the set level, thus modulating flow to maintain desired pressure. Known for its accuracy and low pressure rise versus flow characteristics, this relief cartridge ensures smooth and quiet operation with moderate speed. It is suitable for cross-port relief circuits but not recommended for load-holding applications due to potential spool leakage. The valve can handle maximum pressure at port 2 and features a main stage orifice protected by a 150-micron stainless steel screen. With EPDM seal options, it is compatible with systems using phosphate ester fluids but should not be exposed to petroleum-based substances. The RPGCJUV incorporates Sun's floating style construction to prevent internal binding from installation torque or machining variations. It supports corrosion-resistant options with external stainless steel or zinc-nickel plating identified by model code suffixes AP or LH respectively. This cartridge fits into a T-3A cavity, has a capacity of 50 gpm (200 L/min), and operates up to 5000 psi (350 bar). The response time is typically around 10 ms, with maximum leakage of 3 in\u00b3/min at 1000 psi (50 cc/min at 70 bar). Adjustable via an internal hex screw, it allows up to five clockwise turns for setting increases. Installation requires specific torque settings: valve hex size of 1-1/8 inches (28.6 mm) with torque between 45-50 lbf.ft (61-68 Nm), and locknut torque of 80-90 lbf.in (9-10 Nm). Its compact design weighs approximately .50 lb (.25 kg).
Pilot-operated, balanced-piston relief cartridges are normally closed pressure regulating valves. When the pressure at the inlet (port 1) reaches the valve setting, the valve starts to open to tank (port 2), throttling flow to regulate the pressure. These valves are accurate, have low pressure rise vs. flow, they are smooth and quiet, and are moderately fast.
- All 2-port relief cartridges (except pilot reliefs) are physically and functionally interchangeable (same flow path, same cavity for a given frame size).
- Will accept maximum pressure at port 2; suitable for use in cross port relief circuits. If used in cross port relief circuits, consider spool leakage.
- Main stage orifice is protected by a 150 micron stainless steel screen.
- Not suitable for use in load holding applications due to spool leakage.
- Back pressure on the tank port (port 2) is directly additive to the valve setting at a 1:1 ratio.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- W and Y controls (where applicable) can be specified with or without a special setting. When no special setting is specified, the valve is adjustable throughout its full range using the W or Y control. When a special setting is specified, this setting represents the maximum setting of the valve.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP for external stainless steel components, or /LH for external zinc-nickel plated components. See the CONFIGURATION section for all options. For further details, please see the Materials of Construction page located under TECH RESOURCES.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-3A |
| Series | 2 |
| Capacity | 50 gpm200 L/min. |
| Factory Pressure Settings Established at | 4 gpm15 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Response Time - Typical | 10 ms10 ms |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 3 in³/min.@1000 psi50 cc/min.@70 bar |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .50 lb0,25 kg |
| Seal kit - Cartridge | Viton: 990-203-006 |
Show FAQ
Additional Resources
- Pressure Relief and Regulating Cartridge Valve Technical Tips
- Pilot Operated, Balanced Poppet Relief Valves
- Sun Expands Corrosion-Resistant Solutions
- Sun Offers Zinc-Nickel Plating for Corrosion Resistance
- Sun Cartridges with EPDM Seals
- Series 4 PLUS Cartridges Offer Higher Flows with Lower Pressure Losses
- Pilot-Operated, Balanced Poppet, Anti Shock Reliefs
- CavitySaver multi-function valves deliver single-cartridge solutions
- 'Soft' Relief Eliminates Pressure Spikes
- Tri-Grip Handknob Now Offered From Sun as a Standard Control Option
- QuickDesign with SmartConnect Offers Drag-and-Drop Schematic Tool
- Sun Introduces 'Hybrid' Valves
- CE/TÜV Certified Pressure Relief Valves
- Manufacturing Sun Cartridge Cavities
- Pressure Relief and Regulating Valves
- Cartridges: Materials of Construction
- Fluid and Temperature Recommendations
- Performance Data
- Sun's Floating Style Screw-In Cartridge
- Units of Measure, Settings, and Conversions
- Cavity Information (S-171) and Tooling
- Sun Model Code Explanation; 999-901-334
Notes:
- For Series 1 cartridges configured with an O control (panel mount handknob), a .75 in. (19 mm) diameter hole is required in the panel.
