SUN HYDRAULICS
RPGCLSN
$91.04 USD
- SUN HYDRAULICS
- Material:RPGCLSN
- Model:RPGC-LSN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics RPGCLSN (RPGCLSN) is a pilot-operated, balanced piston relief cartridge, designed as a normally closed pressure regulating valve. This versatile component is engineered to open to tank port 2 when the inlet port 1 pressure reaches the set threshold, effectively throttling flow to maintain desired pressure levels. Known for its accuracy and smooth operation, this valve exhibits low pressure rise versus flow and operates quietly with moderate speed. The RPGCLSN is compatible with all 2-port relief cartridges except pilot reliefs, maintaining physical and functional interchangeability within the same frame size. This cartridge can handle maximum pressure at port 2, making it suitable for cross port relief circuits; however, spool leakage should be considered in such applications. The main stage orifice features protection by a 150-micron stainless steel screen. It is important to note that this valve is not ideal for load-holding applications due to potential spool leakage. Back pressure on tank port 2 directly adds to the valve setting at a 1:1 ratio. The RPGCLSN can be configured with EPDM seals for systems utilizing phosphate ester fluids; exposure to petroleum-based fluids can damage these seals. Control options include W and Y adjustments with or without special settings, allowing full-range adjustability unless a maximum setting is specified. Corrosion-resistant versions are available with stainless steel or zinc-nickel plated components. Incorporating Sun's floating style construction minimizes internal binding risks due to installation torque or machining variations. With a capacity of 50 gpm (200 L/min) and maximum operating pressure of 5000 psi (350 bar), it offers reliable performance with typical response times of 10 ms and minimal leakage at specified conditions.
The Sun Hydraulics RPGCLSN (RPGCLSN) is a pilot-operated, balanced piston relief cartridge, designed as a normally closed pressure regulating valve. This versatile component is engineered to open to tank port 2 when the inlet port 1 pressure reaches the set threshold, effectively throttling flow to maintain desired pressure levels. Known for its accuracy and smooth operation, this valve exhibits low pressure rise versus flow and operates quietly with moderate speed. The RPGCLSN is compatible with all 2-port relief cartridges except pilot reliefs, maintaining physical and functional interchangeability within the same frame size. This cartridge can handle maximum pressure at port 2, making it suitable for cross port relief circuits; however, spool leakage should be considered in such applications. The main stage orifice features protection by a 150-micron stainless steel screen. It is important to note that this valve is not ideal for load-holding applications due to potential spool leakage. Back pressure on tank port 2 directly adds to the valve setting at a 1:1 ratio. The RPGCLSN can be configured with EPDM seals for systems utilizing phosphate ester fluids; exposure to petroleum-based fluids can damage these seals. Control options include W and Y adjustments with or without special settings, allowing full-range adjustability unless a maximum setting is specified. Corrosion-resistant versions are available with stainless steel or zinc-nickel plated components. Incorporating Sun's floating style construction minimizes internal binding risks due to installation torque or machining variations. With a capacity of 50 gpm (200 L/min) and maximum operating pressure of 5000 psi (350 bar), it offers reliable performance with typical response times of 10 ms and minimal leakage at specified conditions.
Pilot-operated, balanced-piston relief cartridges are normally closed pressure regulating valves. When the pressure at the inlet (port 1) reaches the valve setting, the valve starts to open to tank (port 2), throttling flow to regulate the pressure. These valves are accurate, have low pressure rise vs. flow, they are smooth and quiet, and are moderately fast.
- All 2-port relief cartridges (except pilot reliefs) are physically and functionally interchangeable (same flow path, same cavity for a given frame size).
- Will accept maximum pressure at port 2; suitable for use in cross port relief circuits. If used in cross port relief circuits, consider spool leakage.
- Main stage orifice is protected by a 150 micron stainless steel screen.
- Not suitable for use in load holding applications due to spool leakage.
- Back pressure on the tank port (port 2) is directly additive to the valve setting at a 1:1 ratio.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- W and Y controls (where applicable) can be specified with or without a special setting. When no special setting is specified, the valve is adjustable throughout its full range using the W or Y control. When a special setting is specified, this setting represents the maximum setting of the valve.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP for external stainless steel components, or /LH for external zinc-nickel plated components. See the CONFIGURATION section for all options. For further details, please see the Materials of Construction page located under TECH RESOURCES.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

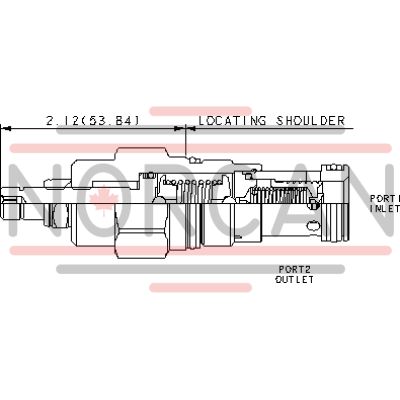

| Cavity | T-3A |
| Series | 2 |
| Capacity | 50 gpm200 L/min. |
| Factory Pressure Settings Established at | 4 gpm15 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Response Time - Typical | 10 ms10 ms |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 3 in³/min.@1000 psi50 cc/min.@70 bar |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .50 lb0,25 kg |
| Seal kit - Cartridge | Viton: 990-203-006 |
