SUN HYDRAULICS
RELIEF CART
RPGELBN
$93.52 USD
- SUN HYDRAULICS
- Material:RPGELBN
- Model:RPGE-LBN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

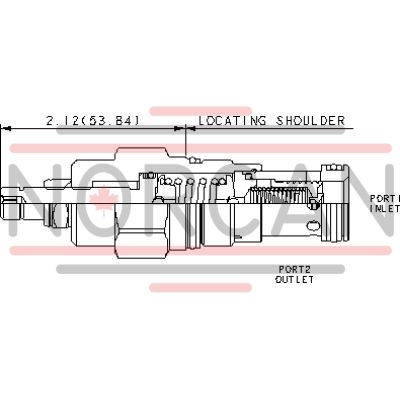

The Sun Hydraulics RPGELBN (Material Number: RPGELBN) is a fast-acting, pilot-operated, balanced piston relief cartridge valve designed to protect hydraulic components from pressure transients. This valve is normally closed and functions as a pressure-limiting device that opens when the inlet port pressure reaches a pre-set level, diverting flow to the tank port to control pressure rise. With a capability of handling up to 50 gpm (200 L/min) and a maximum operating pressure of 5000 psi (350 bar), it features quick response times typically around 2 ms. The cartridge incorporates Sun's floating style construction to reduce internal binding risks and includes a 150-micron stainless steel screen protecting the main stage orifice. The RPGELBN model is physically and functionally interchangeable with other two-port relief cartridges of the same frame size, making it suitable for cross-port relief circuits. However, due consideration should be given to spool leakage in such applications. It is not recommended for load-holding applications due to potential spool leakage. The valve's back pressure at the tank port directly adds to the valve setting at a 1:1 ratio, impacting its operation. This model can be configured with EPDM seals for use with phosphate ester fluids, but these seals are not compatible with petroleum-based fluids. Installation requires specific torque settings: 45 - 50 lbf ft (61 - 68 Nm) for the valve and 80 - 90 lbf in (9 - 10 Nm) for the locknut. The adjustment screw has an internal hex size of 5/32 in., while the locknut hex size is 9/16 in. With its robust design and efficient performance characteristics, this cartridge valve offers reliable protection against hydraulic system overpressures.
The Sun Hydraulics RPGELBN (Material Number: RPGELBN) is a fast-acting, pilot-operated, balanced piston relief cartridge valve designed to protect hydraulic components from pressure transients. This valve is normally closed and functions as a pressure-limiting device that opens when the inlet port pressure reaches a pre-set level, diverting flow to the tank port to control pressure rise. With a capability of handling up to 50 gpm (200 L/min) and a maximum operating pressure of 5000 psi (350 bar), it features quick response times typically around 2 ms. The cartridge incorporates Sun's floating style construction to reduce internal binding risks and includes a 150-micron stainless steel screen protecting the main stage orifice. The RPGELBN model is physically and functionally interchangeable with other two-port relief cartridges of the same frame size, making it suitable for cross-port relief circuits. However, due consideration should be given to spool leakage in such applications. It is not recommended for load-holding applications due to potential spool leakage. The valve's back pressure at the tank port directly adds to the valve setting at a 1:1 ratio, impacting its operation. This model can be configured with EPDM seals for use with phosphate ester fluids, but these seals are not compatible with petroleum-based fluids. Installation requires specific torque settings: 45 - 50 lbf ft (61 - 68 Nm) for the valve and 80 - 90 lbf in (9 - 10 Nm) for the locknut. The adjustment screw has an internal hex size of 5/32 in., while the locknut hex size is 9/16 in. With its robust design and efficient performance characteristics, this cartridge valve offers reliable protection against hydraulic system overpressures.
Fast-acting, pilot-operated, balanced piston relief cartridges are normally closed, pressure-limiting valves used to protect hydraulics components from pressure transients. Fast opening and closing is gained at the expense of smoothness. When the pressure at the inlet (port 1) reaches the valve setting, the valve starts to open to tank (port 2), throttling flow to limit the pressure rise. These valves have low pressure rise vs. flow and are very fast.
- All 2-port relief cartridges (except pilot reliefs) are physically and functionally interchangeable (same flow path, same cavity for a given frame size).
- Will accept maximum pressure at port 2; suitable for use in cross port relief circuits. If used in cross port relief circuits, consider spool leakage.
- Main stage orifice is protected by a 150 micron stainless steel screen.
- Not suitable for use in load holding applications due to spool leakage.
- Back pressure on the tank port (port 2) is directly additive to the valve setting at a 1:1 ratio.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-3A |
| Series | 2 |
| Capacity | 50 gpm200 L/min. |
| Factory Pressure Settings Established at | 4 gpm15 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Response Time - Typical | 2 ms2 ms |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 3 in³/min.@1000 psi50 cc/min.@70 bar |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .50 lb0,25 kg |
| Seal kit - Cartridge | Viton: 990-203-006 |
