SUN HYDRAULICS
RPICCTN
$197.57 USD
- SUN HYDRAULICS
- Material:RPICCTN
- Model:RPIC-CTN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

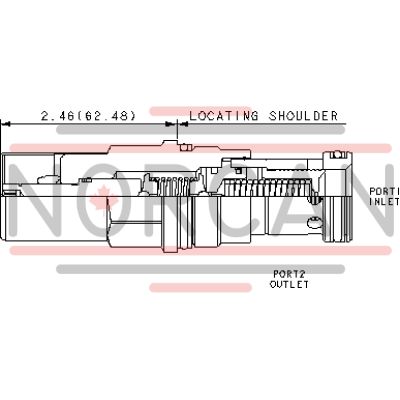

The Sun Hydraulics RPICCTN (RPICCTN) is a pilot-operated, balanced piston relief cartridge designed for precise pressure regulation in hydraulic systems. This normally closed valve opens to the tank port when the inlet pressure reaches the set threshold, effectively throttling flow to maintain desired pressure levels. Known for its accuracy and smooth operation, this valve offers a low-pressure rise versus flow and operates quietly with moderate speed. It can handle maximum pressure at port 2, making it suitable for cross-port relief circuits, though care should be taken regarding spool leakage in such applications. The RPICCTN features a main stage orifice protected by a 150-micron stainless steel screen and is not recommended for load-holding applications due to potential spool leakage. Back pressure on tank port 2 directly adds to the valve setting at a 1:1 ratio. The cartridge is physically and functionally interchangeable with other 2-port relief cartridges of the same frame size, except pilot reliefs. It can be configured with EPDM seals for systems using phosphate ester fluids; however, exposure to petroleum-based fluids could damage these seals. This model incorporates Sun's floating style construction to minimize internal part binding due to installation torque or machining variations. It fits into cavity T-16A series 3 and has a capacity of up to 100 gpm (380 L/min). The maximum operating pressure is rated at 5000 psi (350 bar), with typical response times around 10 ms and minimal valve leakage under specified conditions. Adjustment features include a clockwise turn mechanism for setting increases, with specific hex sizes provided for both adjustment screw and locknut operations. The RPICCTN weighs approximately 1.20 lb (0.55 kg) and comes with an available Viton seal kit (990-016-006).
The Sun Hydraulics RPICCTN (RPICCTN) is a pilot-operated, balanced piston relief cartridge designed for precise pressure regulation in hydraulic systems. This normally closed valve opens to the tank port when the inlet pressure reaches the set threshold, effectively throttling flow to maintain desired pressure levels. Known for its accuracy and smooth operation, this valve offers a low-pressure rise versus flow and operates quietly with moderate speed. It can handle maximum pressure at port 2, making it suitable for cross-port relief circuits, though care should be taken regarding spool leakage in such applications. The RPICCTN features a main stage orifice protected by a 150-micron stainless steel screen and is not recommended for load-holding applications due to potential spool leakage. Back pressure on tank port 2 directly adds to the valve setting at a 1:1 ratio. The cartridge is physically and functionally interchangeable with other 2-port relief cartridges of the same frame size, except pilot reliefs. It can be configured with EPDM seals for systems using phosphate ester fluids; however, exposure to petroleum-based fluids could damage these seals. This model incorporates Sun's floating style construction to minimize internal part binding due to installation torque or machining variations. It fits into cavity T-16A series 3 and has a capacity of up to 100 gpm (380 L/min). The maximum operating pressure is rated at 5000 psi (350 bar), with typical response times around 10 ms and minimal valve leakage under specified conditions. Adjustment features include a clockwise turn mechanism for setting increases, with specific hex sizes provided for both adjustment screw and locknut operations. The RPICCTN weighs approximately 1.20 lb (0.55 kg) and comes with an available Viton seal kit (990-016-006).
Pilot-operated, balanced-piston relief cartridges are normally closed pressure regulating valves. When the pressure at the inlet (port 1) reaches the valve setting, the valve starts to open to tank (port 2), throttling flow to regulate the pressure. These valves are accurate, have low pressure rise vs. flow, they are smooth and quiet, and are moderately fast.
- Will accept maximum pressure at port 2; suitable for use in cross port relief circuits. If used in cross port relief circuits, consider spool leakage.
- Main stage orifice is protected by a 150 micron stainless steel screen.
- Not suitable for use in load holding applications due to spool leakage.
- Back pressure on the tank port (port 2) is directly additive to the valve setting at a 1:1 ratio.
- All 2-port relief cartridges (except pilot reliefs) are physically and functionally interchangeable (same flow path, same cavity for a given frame size).
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- W and Y controls (where applicable) can be specified with or without a special setting. When no special setting is specified, the valve is adjustable throughout its full range using the W or Y control. When a special setting is specified, this setting represents the maximum setting of the valve.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP for external stainless steel components, or /LH for external zinc-nickel plated components. See the CONFIGURATION section for all options. For further details, please see the Materials of Construction page located under TECH RESOURCES.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-16A |
| Series | 3 |
| Capacity | 100 gpm380 L/min. |
| Factory Pressure Settings Established at | 4 gpm15 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Response Time - Typical | 10 ms10 ms |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 4 in³/min.@1000 psi65 cc/min.@70 bar |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | 1.20 lb0,55 kg |
| Seal kit - Cartridge | Viton: 990-016-006 |
