SUN HYDRAULICS
RPIECEN

$199.16 USD

SUN HYDRAULICS
Material:RPIECEN
Model:RPIE-CEN
Summary:Cartridge

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics RPIECEN (Material Number: RPIECEN) is a fast-acting, pilot-operated, balanced piston relief cartridge designed to protect hydraulic components from pressure transients. These normally closed, pressure-limiting valves open quickly to relieve excess pressure by throttling flow when the inlet port pressure reaches the valve setting. They feature low pressure rise versus flow characteristics and are known for their rapid response times. The cartridges are physically and functionally interchangeable across 2-port relief systems of the same frame size, allowing for flexible integration into various hydraulic setups. These valves can handle maximum pressure at port 2, making them suitable for cross-port relief circuits; however, users should consider spool leakage in such applications. The main stage orifice is safeguarded by a 150-micron stainless steel screen, ensuring durability and performance reliability. They are not recommended for load-holding applications due to potential spool leakage. The backpressure on tank port 2 is directly additive to the valve setting at a 1:1 ratio. The Sun Hydraulics RPIECEN incorporates floating style construction to minimize internal part binding due to excessive installation torque or machining variations in cavity/cartridge setups. It has a capacity of 100 gpm (380 L/min) and operates at a maximum pressure of 5000 psi (350 bar). Typical response time is around 2 ms with maximum valve leakage at specified conditions being minimal. The adjustment mechanism allows up to five clockwise turns to increase the setting, with installation requiring specific torque settings for optimal performance. This model includes an internal hex size adjustment screw and locknut hex size specifications for precise calibration and secure installation, weighing approximately 1.20 lb (0.55 kg). It also supports Viton seal kits for enhanced compatibility with various hydraulic fluids.

Description

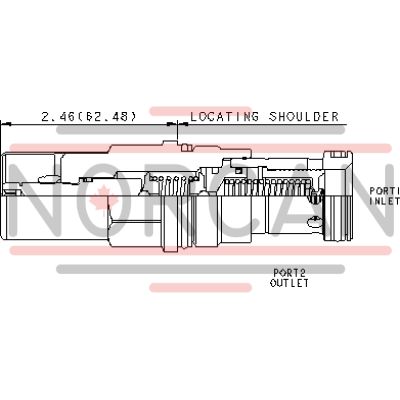

Fast-acting, pilot-operated, balanced piston relief cartridges are normally closed, pressure-limiting valves used to protect hydraulics components from pressure transients. Fast opening and closing is gained at the expense of smoothness. When the pressure at the inlet (port 1) reaches the valve setting, the valve starts to open to tank (port 2), throttling flow to limit the pressure rise. These valves have low pressure rise vs. flow and are very fast.

All 2-port relief cartridges (except pilot reliefs) are physically and functionally interchangeable (same flow path, same cavity for a given frame size).
Will accept maximum pressure at port 2; suitable for use in cross port relief circuits. If used in cross port relief circuits, consider spool leakage.
Main stage orifice is protected by a 150 micron stainless steel screen.
Not suitable for use in load holding applications due to spool leakage.
Back pressure on the tank port (port 2) is directly additive to the valve setting at a 1:1 ratio.
Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

Cavity	T-16A
Series	3
Capacity	100 gpm380 L/min.
Factory Pressure Settings Established at	4 gpm15 L/min.
Maximum Operating Pressure	5000 psi350 bar
Response Time - Typical	2 ms2 ms
Maximum Valve Leakage at 110 SUS (24 cSt)	4 in³/min.@1000 psi65 cc/min.@70 bar
Adjustment - Number of Clockwise Turns to Increase Setting	55
Valve Hex Size	1 1/4 in.31,8 mm
Valve Installation Torque	150 - 160 lbf ft203 - 217 Nm
Adjustment Screw Internal Hex Size	5/32 in.4 mm
Locknut Hex Size	9/16 in.15 mm
Locknut Torque	80 - 90 lbf in.9 - 10 Nm
Model Weight	1.20 lb0,55 kg
Seal kit - Cartridge	Viton: 990-016-006

Show FAQ

Where would I use a kick-down relief?	One graphic example is on a portable grain auger for silos. When the farmer gets caught in the auger the kick-down relief trips and allows him to escape.
What are the tolerances on pressure settings for Sun's pressure control valves?	Pressure setting tolerances are listed in our Performance Data page. A link to this page can also be found in the Additional Resources tab of the applicable product page.
How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
Can I use a kick-down relief for my system relief?	Maybe not. We build in a good amount of overlap in the kick-down reliefs to prevent false tripping. This means they are not as fast as our standard pilot-operated reliefs. A direct-acting relief valve set just above the kick-down relief valve would be good insurance.
Direct acting or pilot operated - what do I use?	Direct-acting valves are used to prevent over pressure, and pilot-operated valves are used to regulate pressure. If you are unsure, use a direct-acting valve. Sun's direct acting valves are very fast, dirt tolerant, stable, and robust. Sun's pilot-operated valves are moderately fast, they have a low pressure rise vs. flow curve, and they are easy to adjust.
