SUN HYDRAULICS
RPIECNN
$199.16 USD
- SUN HYDRAULICS
- Material:RPIECNN
- Model:RPIE-CNN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

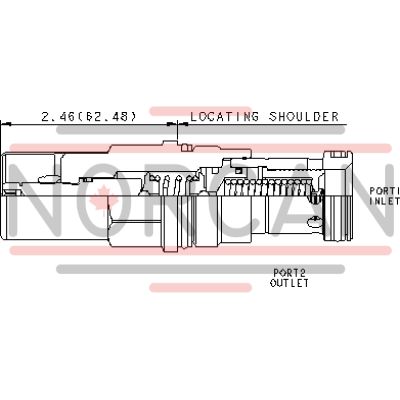

The Sun Hydraulics RPIECNN (RPIECNN) is a fast-acting, pilot-operated, balanced piston relief cartridge designed to protect hydraulic components from pressure transients. This valve is normally closed and functions as a pressure-limiting device by opening to the tank port when the inlet port pressure reaches the valve setting. It features low-pressure rise versus flow and operates with remarkable speed. The RPIECNN is interchangeable with all 2-port relief cartridges of the same frame size, offering versatility in application. It can handle maximum pressure at port 2, making it suitable for cross-port relief circuits, although spool leakage should be considered in such configurations. The main stage orifice is safeguarded by a 150-micron stainless steel screen. However, this valve is not ideal for load-holding applications due to spool leakage. Back pressure on port 2 directly adds to the valve setting at a 1:1 ratio. The cartridge incorporates Sun's floating style construction to reduce internal binding risks due to installation torque or machining variations. It fits into a Cavity T-16A Series 3 and has a flow capacity of up to 100 gpm (380 L/min). Factory pressure settings are established at 4 gpm (15 L/min), with a maximum operating pressure of 5000 psi (350 bar). The typical response time is around 2 ms, with maximum valve leakage at specified conditions being 4 in\u00b3/min (65 cc/min). Adjustment requires up to five clockwise turns, and installation specifications include a hex size of 1\u00bc inches and torque between 150-160 lbf ft (203-217 Nm). For adjustments, an internal hex size of 5/32 inches and locknut hex size of 9/16 inches are required, with locknut torque between 80-90 lbf in (9-10 Nm). The model weighs approximately 1.20 lb (0.55 kg) and uses Viton seal kits for optimal performance.
The Sun Hydraulics RPIECNN (RPIECNN) is a fast-acting, pilot-operated, balanced piston relief cartridge designed to protect hydraulic components from pressure transients. This valve is normally closed and functions as a pressure-limiting device by opening to the tank port when the inlet port pressure reaches the valve setting. It features low-pressure rise versus flow and operates with remarkable speed. The RPIECNN is interchangeable with all 2-port relief cartridges of the same frame size, offering versatility in application. It can handle maximum pressure at port 2, making it suitable for cross-port relief circuits, although spool leakage should be considered in such configurations. The main stage orifice is safeguarded by a 150-micron stainless steel screen. However, this valve is not ideal for load-holding applications due to spool leakage. Back pressure on port 2 directly adds to the valve setting at a 1:1 ratio. The cartridge incorporates Sun's floating style construction to reduce internal binding risks due to installation torque or machining variations. It fits into a Cavity T-16A Series 3 and has a flow capacity of up to 100 gpm (380 L/min). Factory pressure settings are established at 4 gpm (15 L/min), with a maximum operating pressure of 5000 psi (350 bar). The typical response time is around 2 ms, with maximum valve leakage at specified conditions being 4 in\u00b3/min (65 cc/min). Adjustment requires up to five clockwise turns, and installation specifications include a hex size of 1\u00bc inches and torque between 150-160 lbf ft (203-217 Nm). For adjustments, an internal hex size of 5/32 inches and locknut hex size of 9/16 inches are required, with locknut torque between 80-90 lbf in (9-10 Nm). The model weighs approximately 1.20 lb (0.55 kg) and uses Viton seal kits for optimal performance.
Fast-acting, pilot-operated, balanced piston relief cartridges are normally closed, pressure-limiting valves used to protect hydraulics components from pressure transients. Fast opening and closing is gained at the expense of smoothness. When the pressure at the inlet (port 1) reaches the valve setting, the valve starts to open to tank (port 2), throttling flow to limit the pressure rise. These valves have low pressure rise vs. flow and are very fast.
- All 2-port relief cartridges (except pilot reliefs) are physically and functionally interchangeable (same flow path, same cavity for a given frame size).
- Will accept maximum pressure at port 2; suitable for use in cross port relief circuits. If used in cross port relief circuits, consider spool leakage.
- Main stage orifice is protected by a 150 micron stainless steel screen.
- Not suitable for use in load holding applications due to spool leakage.
- Back pressure on the tank port (port 2) is directly additive to the valve setting at a 1:1 ratio.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-16A |
| Series | 3 |
| Capacity | 100 gpm380 L/min. |
| Factory Pressure Settings Established at | 4 gpm15 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Response Time - Typical | 2 ms2 ms |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 4 in³/min.@1000 psi65 cc/min.@70 bar |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | 1.20 lb0,55 kg |
| Seal kit - Cartridge | Viton: 990-016-006 |
