SUN HYDRAULICS
RPIEKCN

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

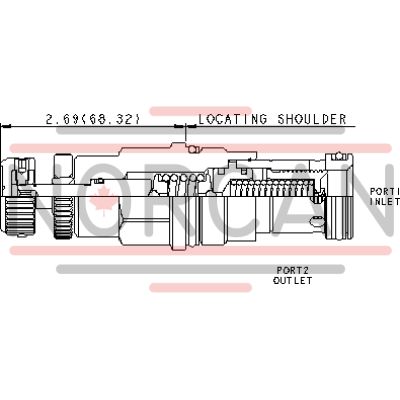

The Sun Hydraulics RPIEKCN (RPIEKCN) is a fast-acting, pilot-operated, balanced piston relief cartridge designed to protect hydraulic components from pressure transients. It operates as a normally closed, pressure-limiting valve that opens rapidly when the inlet port pressure reaches the set valve threshold, directing flow to the tank port to control pressure rise. This model is suitable for use in cross-port relief circuits, accepting maximum pressure at port 2; however, spool leakage should be considered in these applications. The valve features a main stage orifice protected by a 150-micron stainless steel screen and incorporates Sun's floating style construction to prevent internal binding due to installation torque or machining variations. Notably, it is not recommended for load holding applications due to potential spool leakage. The RPIEKCN can handle a maximum operating pressure of 5000 psi (350 bar) and offers rapid response times typically around 2 ms. It has a capacity of 100 gpm (380 L/min) with factory pressure settings established at 4 gpm (15 L/min). The backpressure on the tank port directly adds to the valve setting at a 1:1 ratio. Additional specifications include a valve hex size of 1-1/4 inches (31.8 mm), installation torque ranging from 150 to 160 lbf ft (203 to 217 Nm), and an adjustment screw internal hex size of 5/32 inches (4 mm). The model weighs approximately 1.20 lb (0.55 kg) and includes Viton seal kits available under part number 990016006 for maintenance needs.
