SUN HYDRAULICS
RPIELDV

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

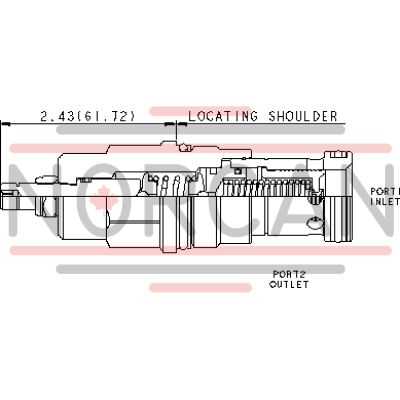

The Sun Hydraulics RPIELDV (RPIELDV) is a fast-acting, pilot-operated, balanced piston relief cartridge designed to protect hydraulic components from pressure transients. These normally closed, pressure-limiting valves open swiftly at the expense of smoothness, starting to open to tank port 2 when the inlet port 1 reaches the valve setting. This throttles flow to limit pressure rise and features low pressure rise versus flow characteristics. The RPIELDV is interchangeable with all 2-port relief cartridges, except pilot reliefs, sharing the same flow path and cavity for a given frame size. It can handle maximum pressure at port 2, making it suitable for cross-port relief circuits, although spool leakage should be considered in such applications. The main stage orifice is protected by a 150-micron stainless steel screen. This model is not recommended for load-holding applications due to spool leakage. Back pressure on tank port 2 directly adds to the valve setting at a 1:1 ratio. It uses Sun's floating style construction to minimize internal parts binding risks due to excessive installation torque or machining variations in cavity/cartridge setups. The RPIELDV fits into a T-16A cavity and belongs to Series 3 with a capacity of up to 100 gpm (380 L/min). The factory pressure settings are established at 4 gpm (15 L/min), with a maximum operating pressure of 5000 psi (350 bar) and typical response time of around 2 ms. Maximum valve leakage is specified at approximately 4 in\u00b3/min (65 cc/min) under conditions of 110 SUS (24 cSt) and 1000 psi (70 bar). Adjustments can be made via an internal hex screw with five clockwise turns increasing the setting; it includes specific torque requirements for installation and locknut adjustments. The model weighs approximately 1.20 lb (0.55 kg) and comes with an available Viton seal kit under part number: 990016006.
