SUN HYDRAULICS
RPIELWV

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

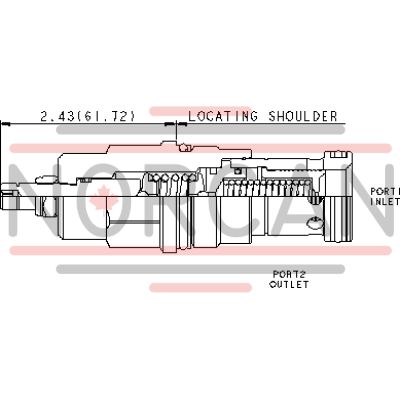

The Sun Hydraulics RPIELWV (RPIELWV) is a fast-acting, pilot-operated, balanced piston relief cartridge designed to protect hydraulic components from pressure transients. This normally closed, pressure-limiting valve opens rapidly when the inlet port 1 reaches the set pressure, diverting flow to tank port 2 to limit pressure rise. With its low-pressure rise versus flow and quick response time of approximately 2 milliseconds, this valve is ideal for applications requiring fast operation. It features a maximum operating pressure of 5000 psi (350 bar) and a capacity of 100 gpm (380 L/min). The main stage orifice is safeguarded by a 150-micron stainless steel screen, enhancing durability and performance. This relief cartridge is physically and functionally interchangeable with other two-port relief cartridges within the same frame size, offering versatility in various hydraulic systems. It can handle maximum pressure at port 2, making it suitable for cross-port relief circuits; however, spool leakage should be considered in such applications. The valve\u2019s backpressure at tank port 2 directly adds to the valve setting at a 1:1 ratio. The Sun floating style construction minimizes internal binding due to installation torque or machining variations. Notably unsuitable for load-holding applications due to spool leakage, this model includes an adjustable setting mechanism with five clockwise turns available for increasing settings. The valve requires an installation torque of 150-160 lbf ft (203-217 Nm) and features a locknut hex size of 9/16 in. (15 mm), with a locknut torque of 80-90 lbf in. (9-10 Nm). Weighing approximately 1.20 lb (0.55 kg), it incorporates Viton seals as part of its design for enhanced reliability in demanding conditions.
