SUN HYDRAULICS
RPIEMBV

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

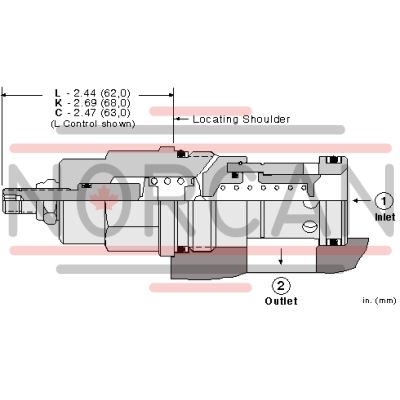

The Sun Hydraulics RPIEMBV (RPIEMBV) is a fast-acting, pilot-operated, balanced piston relief cartridge designed to protect hydraulic components from pressure transients. This valve is normally closed and functions as a pressure-limiting device by opening to tank port 2 when the inlet port 1 reaches the valve setting, thereby throttling flow to limit pressure rise. Known for its rapid response, this valve offers low pressure rise versus flow but prioritizes speed over smoothness. It features a main stage orifice protected by a 150-micron stainless steel screen and incorporates Sun's floating style construction to mitigate internal binding due to installation torque or machining variations. The RPIEMBV can handle maximum pressures at port 2, making it suitable for cross-port relief circuits, though spool leakage should be considered in such applications. Notably, it is not recommended for load-holding applications due to potential leakage issues. The valve's back pressure on tank port 2 directly adds to the valve setting at a 1:1 ratio. It fits into cavity T-16A with a series 3 capacity of 100 gpm (380 L/min) and can operate at pressures up to 5000 psi (350 bar). The typical response time is around 2 ms with maximum leakage of 4 in\u00b3/min at 110 SUS (24 cSt) and 1000 psi (70 bar). Adjustment involves up to five clockwise turns, with specific torque requirements for installation and locknut adjustments provided. Weighing approximately 1.20 lb (0.55 kg), this cartridge also has an available Viton seal kit under part number 990016006.
