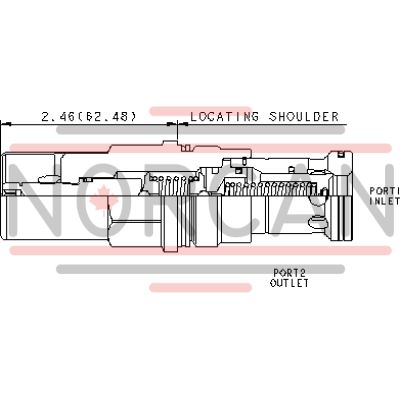

The Sun Hydraulics RPISCQV (RPISCQV) is a pilot-operated, balanced poppet relief cartridge valve designed to regulate pressure by opening to tank port 2 when the inlet port 1 pressure reaches the valve setting. Known for its accuracy, smooth operation, and low noise levels, this valve effectively manages pressure with minimal rise versus flow. It is particularly suited for load holding applications, cross port relief circuits, and environments where varying oil temperatures or contamination are concerns. The main stage orifice is protected by a 150-micron stainless steel screen, enhancing its durability and reliability. The RPISCQV can handle maximum operating pressures up to 5000 psi (350 bar) and has a flow capacity of 100 gpm (380 L/min). It incorporates Sun's floating style construction to prevent internal part binding due to excessive torque or machining variations. The valve features adjustable settings via W or Y control options and can be configured with corrosion-resistant components for harsh environments. Back pressure on tank port 2 directly affects the valve setting at a 1:1 ratio, providing precise control in various applications. With a quick response time of approximately 7 milliseconds and minimal leakage at reseat, this cartridge valve ensures efficient performance in hydraulic systems. Installation requires specific torque values: the valve hex size is 1-1/4 inches (31.8 mm), with an installation torque of 150-160 lbf ft (203-217 Nm). Adjustments are made using an internal hex screw size of 5/32 inches (4 mm), secured by a locknut requiring a torque of 80-90 lbf in (9-10 Nm). Weighing just 1.25 lb (0.60 kg), this versatile component is essential for maintaining optimal system performance in demanding conditions.

Description

Pilot-operated, balanced-poppet relief cartridges are normally closed pressure regulating valves. When the pressure at the inlet (port 1) reaches the valve setting, the valve starts to open to tank (port 2), throttling flow to regulate the pressure. These valves are accurate, smooth, quiet, fast, and have low pressure rise vs. flow.

Because the modulating occurs inside the cartridge, these valves are immune to most of the problems associated with cavitation, namely noise and manifold erosion.
Will accept maximum pressure at port 2; suitable for use in cross port relief circuits.
Valve is relatively insensitive to varying oil temperatures and oil borne contamination.
Main stage orifice is protected by a 150 micron stainless steel screen.
Suitable for use in load holding applications.
Back pressure on the tank port (port 2) is directly additive to the valve setting at a 1:1 ratio.
W and Y controls (where applicable) can be specified with or without a special setting. When no special setting is specified, the valve is adjustable throughout its full range using the W or Y control. When a special setting is specified, this setting represents the maximum setting of the valve.
Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP for external stainless steel components, or /LH for external zinc-nickel plated components. See the CONFIGURATION section for all options. For further details, please see the Materials of Construction page located under TECH RESOURCES.
Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

Cavity	T-16A
Series	3
Capacity	100 gpm380 L/min.
Factory Pressure Settings Established at	4 gpm15 L/min.
Maximum Operating Pressure	5000 psi350 bar
Response Time - Typical	7 ms7 ms
Maximum Valve Leakage at Reseat	10 drops/min.0,7 cc/min.
Adjustment - Number of Clockwise Turns to Increase Setting	55
Valve Hex Size	1 1/4 in.31,8 mm
Valve Installation Torque	150 - 160 lbf ft203 - 217 Nm
Adjustment Screw Internal Hex Size	5/32 in.4 mm
Locknut Hex Size	9/16 in.15 mm
Locknut Torque	80 - 90 lbf in.9 - 10 Nm
Model Weight	1.25 lb0,60 kg
Seal kit - Cartridge	Viton: 990-316-006

Show FAQ

Where would I use a kick-down relief?	One graphic example is on a portable grain auger for silos. When the farmer gets caught in the auger the kick-down relief trips and allows him to escape.
What are the tolerances on pressure settings for Sun's pressure control valves?	Pressure setting tolerances are listed in our Performance Data page. A link to this page can also be found in the Additional Resources tab of the applicable product page.
How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
Can I use a kick-down relief for my system relief?	Maybe not. We build in a good amount of overlap in the kick-down reliefs to prevent false tripping. This means they are not as fast as our standard pilot-operated reliefs. A direct-acting relief valve set just above the kick-down relief valve would be good insurance.
Direct acting or pilot operated - what do I use?	Direct-acting valves are used to prevent over pressure, and pilot-operated valves are used to regulate pressure. If you are unsure, use a direct-acting valve. Sun's direct acting valves are very fast, dirt tolerant, stable, and robust. Sun's pilot-operated valves are moderately fast, they have a low pressure rise vs. flow curve, and they are easy to adjust.
