SUN HYDRAULICS
RPKECEV

$399.11 USD

SUN HYDRAULICS
Material:RPKECEV
Model:RPKE-CEV
Summary:Cartridge

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

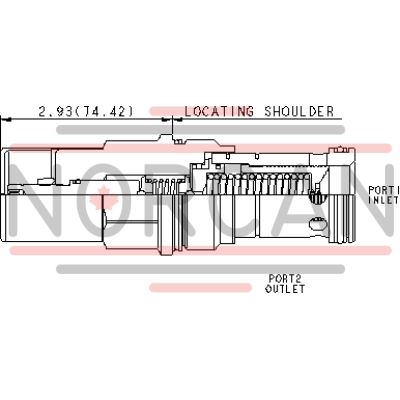

The Sun Hydraulics RPKECEV (RPKECEV) is a fast-acting, pilot-operated, balanced piston relief cartridge designed to protect hydraulic components from pressure transients. This normally closed, pressure-limiting valve opens quickly to manage pressure spikes but sacrifices smoothness for speed. When the inlet port 1 reaches the set pressure, the valve opens to tank port 2, throttling flow to control pressure rise. It features low pressure rise versus flow and rapid response times. These cartridges are interchangeable with other 2-port relief cartridges of the same frame size and flow path, except for pilot reliefs. The RPKECEV can handle maximum pressure at port 2 and is suitable for cross-port relief circuits, though spool leakage should be considered in such applications. It's not recommended for load-holding applications due to potential spool leakage. The main stage orifice is protected by a 150-micron stainless steel screen. It incorporates Sun's floating style construction to reduce internal part binding caused by excessive installation torque or machining variations in cavity/cartridge configurations. The valve has a capacity of 200 gpm (760 L/min) and operates at a maximum pressure of 5000 psi (350 bar). Typical response time is around 2 milliseconds with a maximum valve leakage of 5 in\u00b3/min (80 cc/min) at 110 SUS (24 cSt) under 1000 psi (70 bar). The valve can be adjusted using an internal hex screw with five clockwise turns required to increase settings. Installation requires a torque between 350-375 lbf-ft (474-508 Nm), with specific hex sizes for adjustment and locknut screws provided for precise configuration. Additionally, it weighs approximately 2.50 lb (1.15 kg) and uses Viton seal kits such as the cartridge Viton: 990018006.

Description

Fast-acting, pilot-operated, balanced piston relief cartridges are normally closed, pressure-limiting valves used to protect hydraulics components from pressure transients. Fast opening and closing is gained at the expense of smoothness. When the pressure at the inlet (port 1) reaches the valve setting, the valve starts to open to tank (port 2), throttling flow to limit the pressure rise. These valves have low pressure rise vs. flow and are very fast.

All 2-port relief cartridges (except pilot reliefs) are physically and functionally interchangeable (same flow path, same cavity for a given frame size).
Will accept maximum pressure at port 2; suitable for use in cross port relief circuits. If used in cross port relief circuits, consider spool leakage.
Main stage orifice is protected by a 150 micron stainless steel screen.
Not suitable for use in load holding applications due to spool leakage.
Back pressure on the tank port (port 2) is directly additive to the valve setting at a 1:1 ratio.
Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

Cavity	T-18A
Series	4
Capacity	200 gpm760 L/min.
Factory Pressure Settings Established at	4 gpm15 L/min.
Maximum Operating Pressure	5000 psi350 bar
Response Time - Typical	2 ms2 ms
Maximum Valve Leakage at 110 SUS (24 cSt)	5 in³/min.@1000 psi80 cc/min.@70 bar
Adjustment - Number of Clockwise Turns to Increase Setting	55
Valve Hex Size	1 5/8 in.41,3 mm
Valve Installation Torque	350 - 375 lbf ft474 - 508 Nm
Adjustment Screw Internal Hex Size	5/32 in.4 mm
Locknut Hex Size	9/16 in.15 mm
Locknut Torque	80 - 90 lbf in.9 - 10 Nm
Model Weight	2.50 lb1,15 kg
Seal kit - Cartridge	Viton: 990-018-006

Show FAQ

Where would I use a kick-down relief?	One graphic example is on a portable grain auger for silos. When the farmer gets caught in the auger the kick-down relief trips and allows him to escape.
What are the tolerances on pressure settings for Sun's pressure control valves?	Pressure setting tolerances are listed in our Performance Data page. A link to this page can also be found in the Additional Resources tab of the applicable product page.
How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
Can I use a kick-down relief for my system relief?	Maybe not. We build in a good amount of overlap in the kick-down reliefs to prevent false tripping. This means they are not as fast as our standard pilot-operated reliefs. A direct-acting relief valve set just above the kick-down relief valve would be good insurance.
Direct acting or pilot operated - what do I use?	Direct-acting valves are used to prevent over pressure, and pilot-operated valves are used to regulate pressure. If you are unsure, use a direct-acting valve. Sun's direct acting valves are very fast, dirt tolerant, stable, and robust. Sun's pilot-operated valves are moderately fast, they have a low pressure rise vs. flow curve, and they are easy to adjust.
