SUN HYDRAULICS
RPKEKNV

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

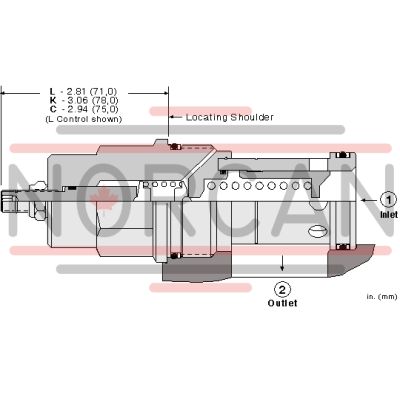

The Sun Hydraulics RPKEKNV (RPKEKNV) is a fast-acting, pilot-operated, balanced piston relief cartridge designed to protect hydraulic components from pressure transients. This normally closed, pressure-limiting valve opens quickly at the expense of smoothness when the inlet port pressure reaches the set point, directing flow to tank port 2 to limit further pressure rise. It is characterized by its low pressure rise versus flow and rapid response time of approximately 2 milliseconds. The RPKEKNV valve is suitable for cross port relief circuits as it can handle maximum pressure at port 2, but it is not recommended for load-holding applications due to spool leakage. The main stage orifice is safeguarded by a 150-micron stainless steel screen, and its construction incorporates Sun's floating style design to minimize binding risks during installation or due to machining variations. This Series 4 cartridge has a capacity of 200 gpm (760 L/min) and operates under a maximum pressure of 5000 psi (350 bar). Valve leakage is minimal at 5 in\u00b3/min (80 cc/min) at 110 SUS (24 cSt). The factory settings are established at a flow rate of 4 gpm (15 L/min), and adjustments can be made with up to five clockwise turns. Installation requires specific torque values: valve hex size is 1-5/8 inches with an installation torque between 350-375 lbf ft (474-508 Nm), while adjustment screw internal hex size is 5/32 inches, and locknut hex size is 9/16 inches with a torque requirement of 80-90 lbf in (9-10 Nm). The model weighs approximately 2.50 lb (1.15 kg) and uses Viton seal kits for optimal performance in various hydraulic applications.
