SUN HYDRAULICS
RPKELNV

$391.16 USD

SUN HYDRAULICS
Material:RPKELNV
Model:RPKE-LNV
Summary:Cartridge

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

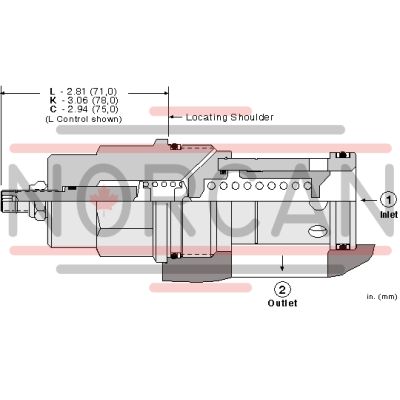

The Sun Hydraulics RPKELNV (RPKELNV) is a fast-acting, pilot-operated, balanced piston relief cartridge designed for hydraulic systems to protect components from pressure transients. This normally closed, pressure-limiting valve is engineered to open quickly when the inlet port pressure reaches the set threshold, thereby diverting flow to the tank port and limiting further pressure increase. It features a low pressure rise versus flow characteristic and offers rapid response times, typically around 2 milliseconds. The valve is constructed to be interchangeable with other 2-port relief cartridges of similar frame sizes, allowing for versatile application in various hydraulic systems. The design incorporates a 150-micron stainless steel screen to protect the main stage orifice and utilizes Sun's floating style construction to prevent internal binding due to installation torque or machining variations. With a capacity of 200 gpm (760 L/min) and maximum operating pressure of 5000 psi (350 bar), this valve is suitable for cross-port relief circuits but should not be used in load-holding applications due to potential spool leakage. The valve's performance includes a maximum leakage rate of 5 in\u00b3/min at 1000 psi (80 cc/min at 70 bar). Installation requires specific torque settings: valve installation torque ranges from 350 - 375 lbf ft (474 - 508 Nm), while locknut torque ranges from 80 - 90 lbf in (9 - 10 Nm). Adjustment of the valve setting can be achieved with up to five clockwise turns. Weighing approximately 2.50 lb (1.15 kg), this cartridge also offers compatibility with Viton seal kits for enhanced durability and performance in demanding environments.

Description

Fast-acting, pilot-operated, balanced piston relief cartridges are normally closed, pressure-limiting valves used to protect hydraulics components from pressure transients. Fast opening and closing is gained at the expense of smoothness. When the pressure at the inlet (port 1) reaches the valve setting, the valve starts to open to tank (port 2), throttling flow to limit the pressure rise. These valves have low pressure rise vs. flow and are very fast.

All 2-port relief cartridges (except pilot reliefs) are physically and functionally interchangeable (same flow path, same cavity for a given frame size).
Will accept maximum pressure at port 2; suitable for use in cross port relief circuits. If used in cross port relief circuits, consider spool leakage.
Main stage orifice is protected by a 150 micron stainless steel screen.
Not suitable for use in load holding applications due to spool leakage.
Back pressure on the tank port (port 2) is directly additive to the valve setting at a 1:1 ratio.
Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

Cavity	T-18A
Series	4
Capacity	200 gpm760 L/min.
Factory Pressure Settings Established at	4 gpm15 L/min.
Maximum Operating Pressure	5000 psi350 bar
Response Time - Typical	2 ms2 ms
Maximum Valve Leakage at 110 SUS (24 cSt)	5 in³/min.@1000 psi80 cc/min.@70 bar
Adjustment - Number of Clockwise Turns to Increase Setting	55
Valve Hex Size	1 5/8 in.41,3 mm
Valve Installation Torque	350 - 375 lbf ft474 - 508 Nm
Adjustment Screw Internal Hex Size	5/32 in.4 mm
Locknut Hex Size	9/16 in.15 mm
Locknut Torque	80 - 90 lbf in.9 - 10 Nm
Model Weight	2.50 lb1,15 kg
Seal kit - Cartridge	Viton: 990-018-006

Show FAQ

Where would I use a kick-down relief?	One graphic example is on a portable grain auger for silos. When the farmer gets caught in the auger the kick-down relief trips and allows him to escape.
What are the tolerances on pressure settings for Sun's pressure control valves?	Pressure setting tolerances are listed in our Performance Data page. A link to this page can also be found in the Additional Resources tab of the applicable product page.
How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
Can I use a kick-down relief for my system relief?	Maybe not. We build in a good amount of overlap in the kick-down reliefs to prevent false tripping. This means they are not as fast as our standard pilot-operated reliefs. A direct-acting relief valve set just above the kick-down relief valve would be good insurance.
Direct acting or pilot operated - what do I use?	Direct-acting valves are used to prevent over pressure, and pilot-operated valves are used to regulate pressure. If you are unsure, use a direct-acting valve. Sun's direct acting valves are very fast, dirt tolerant, stable, and robust. Sun's pilot-operated valves are moderately fast, they have a low pressure rise vs. flow curve, and they are easy to adjust.
